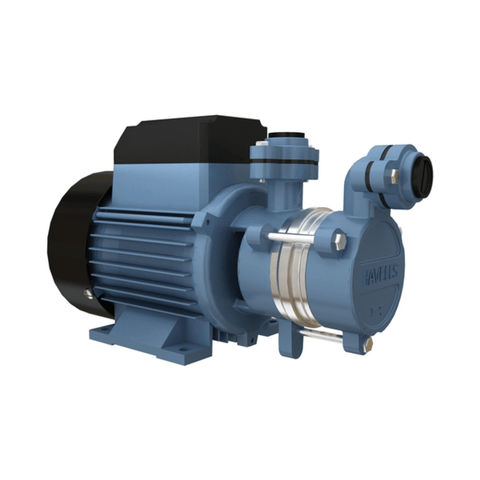

Havells Hi-Flow A Series Self Priming Monoblock Pump

Havells Hi-Flow A Series Self Priming Monoblock Pump

Visit the Havells Store

₹ 0.00

Quantity



Delivery Availability
Offers and Coupons

Bestomart Diwali Sale 2025

Coupon Image

Use the coupon codes purchase of ₹4,000/- & above

Above ₹2,500
Use
LIGHT100
Above ₹7,500
Use
CRACKER200
Above ₹15,000
Use
SHINE300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments



Product Description

Operating Conditions

  • Operating water temperature upto 65°C

  • Max working pressure 5.5 Kg/cm2

  • High suction with self-priming upto 8 metre

  • Low power consumption

  • Wide voltage operating range (180-240V)

  • Direction of rotation Anti-Clockwise when

  • viewed from driving end

Motor

  • Motor body High quality aluminum pressure die casted

  • Motor Stator Low watt loss silicon steel laminations

  • Rotor Dynamically balanced

  • TEFC motor (2900 RPM) suitable for 180-240V, 50 Hz

  • single phase AC power supply

  • In-built thermal overload protector (T.O.P.)

  • Provided with 1 meter long power supply cable

  • Motor Insulation Class F

  • Motor protection IP-55

Pump Construction

  • Pump Casing Cast iron

  • Impeller Forged brass for longer life

  • Brass insert on impeller housing for rust free operation

  • Shaft Stainless steel

  • Mechanical seal Silicon carbide-graphite

  • Copper winding

Applications

  • Used in gardening, farm houses & building construction

  • For lifting water to overhead storage tanks

  • Pressure booster systems

  • Hotels, hospitals and fountains

  • Water circulation in Industries

Benefits of Havells Pump

Motor Insulation Class-F



  • Motor design is compact and motor temperature withstand capacity increases upto 155 deg. Celsius.

  • It protects motor from winding burning due to voltage fluctuations.

IP-55 Protection

  • Pump can be used in outdoor application. Pump is protected from dust & water splashes.

Motor Windings

  • Dual coated H Class copper winding wires gives high motor efficiency and high temperature withstanding capacity.

Thermal Overload Protector (TOP)

  • Havells Pumps are provided with TOP to safe guard motor from burning.

Power Chord#

  • 1 Metre long power cable eases use of pumpset. trouble free service at customer door step.

Pump Shaft

  • Stainless Steel Shaft (SS-410) is anti-rusting in hard water and has longer life.

Pump Casting

  • High Grade Pump Castings (FG-200 grade) ensures minimum rusting of pump and enhanced pump life.

Pump Seal

  • High quality mechanical seal has long life with lesser wear and tear.

Impeller

  • Forged Brass# Impeller is wear & tear resistant.

Pump Guarantee

  • Pumps with 2 Year Guarantee stands for high quality assurance.

Home Service

  • Home service of the pumps assures trouble free service at customer door step.



Product Specifications

Product Code

Model

Power

MHPAAE0X50

Hi-Flow AL2

0.37 kW / 0.5 HP

MHPAAS0X50

Hi-Flow A2

0.37 kW / 0.5 HP

MHPAAS1X00

Hi-Flow A1

0.75 kW / 1.0 HP




Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Self Priming Monoblock Pumps

Manufacturer Details

Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com

Packer Details

Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com

Country of Origin

India
