Offers
LAST SOLD AT ₹ 51.00
SKU # 1000005366

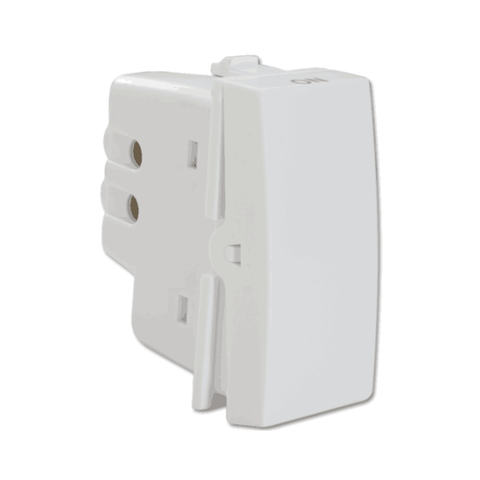

Havells Standard Ivy 6AX 1-Way Switch ASYSXXW061
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product description
-
Fully conforms to IS-3854-1997
-
Flame retardant, UV light stablilised, unbreakable engineering plastic housing
-
Labyrinth effect to minimize visibility of arc
-
Wide and concave switch knob for easy operation
-
Silver cadmium oxide (AgCdo) contacts provide high conductivity and anti-weld properties
-
Dome shaped moving contact and flat head fixed to provide positive contact
-
GF nylon 66 plungers provide high mechanical strength and self-lubricating properties to enhance switch life
-
Special steel springs to provide consistent contact pressure
-
Copper rocker with silver inlay to reduce wear and tear of the fulcrum. Rocker profile provides lever effect to increase contact pressure and minimise temperature rise
-
Silver plated brass terminals to provide high conductivity and reduce heating
-
Liberal terminal hole size provided to accept wires upto 6 sq.mm
-
Tested for 100000 electrical operations.
Details of Interiors of a Switch
-
Standard switches, manufactured in accordance with IS 3854:1997 specifications have various in-built beneficial features.
-
The integral design of terminals and contacts make the switch capable of withstanding high overload conditions.
-
There is sufficient clearance between the moving contact and fixed contact to break the arc,during operation of the switch.
-
The labyrinth design extinguishes arc faster and reduces arc visibility.
Product Specification
|
Item Name |
6AX 1-Way Switch |
|
SAP code |
ASYSXXW061 |
