SKU # 1000077493

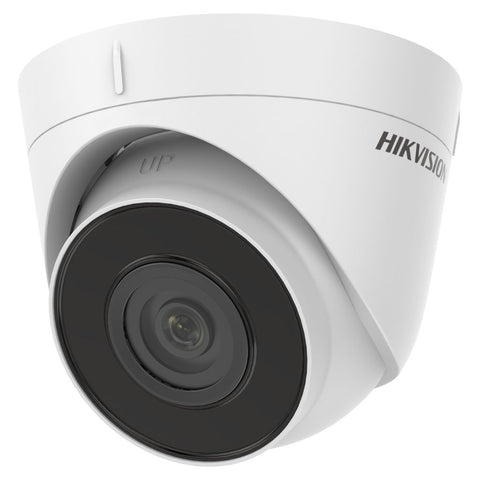

Hikvision 2MP IPC Dome Camera Plastic Body 20m H.265+ DS-2CD1323G0E-I
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
2 MP Fixed Turret Network Camera
-
High quality imaging with 2 MP resolution
-
Efficient H.265+ compression technology
-
Clear imaging against strong back light due to DWDR technology
-
Water and dust resistant (IP67)
-
EXIR 2.0: advanced infrared technology with long IR range
ProductSpecification
Brand |
Hikvision |
Product Type |
Dome Camera |
Product Code |
DS-2CD1323G0E-I |
Camera | |
Image Sensor |
1/2.7" Progressive Scan CMOS |
Max. Resolution |
1920 × 1080 |
Min. Illumination |
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
Shutter Time |
1/3 s to 1/100, 000 s |
Day & Night |
IR cut filter |
Digital Noise Reduction |
3D DNR |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° |
Lens | |
Focal Length & FOV |
2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6° |
Lens Mount |
M12 |
Iris Type |
Fixed |
Aperture |
F2.0 |
Illuminator | |
Supplement Light Type |
IR |
Supplement Light Range |
Up to 30 m |
Smart Supplement Light |
Yes |
IR Wavelength |
850 nm |
Video | |
Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
Sub-Stream |
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
Video Compression |
Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG |
Video Bit Rate |
32 Kbps to 8 Mbps |
H.264 Type |
Baseline Profile/Main Profile/High Profile |
H.265 Type |
Main Profile |
Region of Interest (ROI) |
1 fixed region for main stream |
Network | |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
Simultaneous Live View |
Up to 6 channels |
API |
Open Network Video Interface, ISAPI |
User/Host |
Up to 32 users. 3 levels: administrator, operator and user |
Client |
iVMS-4200, Hik-Connect |
Web Browser |
Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Image | |
Image Settings |
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
Day/Night Switch |
Day, Night, Auto, Schedule |
Wide Dynamic Range (WDR) |
Digital WDR |
SNR |
≥ 52 dB |
Image Enhancement |
BLC, 3D DNR |
Interface | |
Video Output |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
Event | |
Basic Event |
Motion detection, video tampering alarm, exception |
Linkage |
Upload to FTP, notify surveillance center, send email |
General | |
Power |
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
General Function |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
Approval | |
EMC |
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
Safety |
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection |
IP67 (IEC 60529-2013) |
Dimension |
Ø110 mm × 85.3 mm (Ø4.3" × 3.4") |
Package Dimension |
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") Approx. 320 g (0.7 lb.) |
With Package Weight |
Approx. 556 g (1.2 lb.) |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
