Out of Stock!
SKU # 1000095062

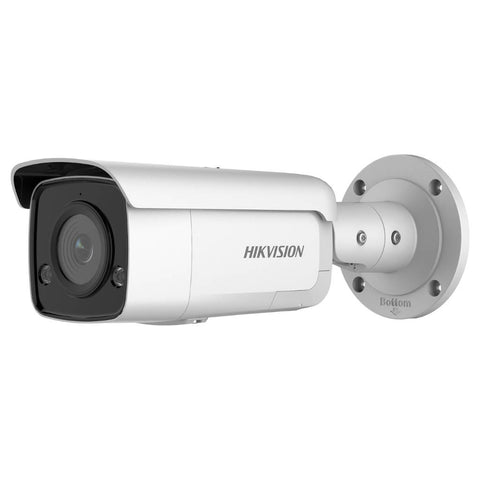

Hikvision AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera 4MP DS-2CD2T46G2-ISU/SL
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
High quality imaging with 4 MP resolution
-
Excellent low-light performance with
-
powered-by-DarkFighter technology
-
Clear imaging against strong backlight due to 120 dB true
-
WDR technology
-
Efficient H.265+ Compression technology
-
Focus on human and vehicle targets classification based on
-
Deep learning
-
Active strobe light and audio alarm to warn intruders off
-
Provides real-time security via built-in two-way audio
-
Water and dust resistant (IP67)
Product Specification
|
Brand |
Hikvision |
|
Product Type |
Bullet Camera |
|
Product Code |
DS-2CD2T46G2-ISU/SL |
|
Series |
Pro |
|
Camera |
|
|
Image Sensor |
1/3" Progressive Scan CMOS |
|
Min. Illumination |
Color: 0.003 Lux @ (F1.4 AGC ON) B/W: 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/100 000 s |
|
Slow Shutter |
Yes |
|
P/N |
P/N |
|
Wide Dynamic Range |
120 dB |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 360° tilt: 0° to 90° rotate: 0° to 360° |
|
Lens |
|
|
Lens Type |
Fixed focal lens 2.8 4 and 6 mm optional |
|
IR Is Type |
Fixed |
|
Focal Length & Fov |
2.8 mm horizontal FOV: 103° vertical FOV: 55° diagonal FOV: 123° 4 mm horizontal FOV: 83° vertical FOV: 45° diagonal FOV: 98° 6 mm horizontal FOV: 53° vertical FOV: 29° diagonal FOV: 62° |
|
Aperture |
F1.4 |
|
Lens Mount |
M12 |
|
DORI |
|
|
DORI |
2.8 mm: D: 60.0 m O: 23.8 m R: 12.0 m I: 6.0 m 4 mm: D: 80.0 m O: 31.7 m R: 16.0 m I: 8.0 m 6 mm: D: 120.0 m O: 47.6 m R: 24.0 m I: 12.0 m |
|
Illuminator |
|
|
Supplement Light Type |
IR |
|
IR Range |
Up to 60 m |
|
IR Wavelength |
850 nm |
|
Smart Supplement Light |
Yes |
|
Visual Alarm |
Yes |
|
Video |
|
|
Max. Resolution |
2688 × 1520 |
|
Main Stream |
50 Hz: 25 fps (2688 × 1520 1920 × 1080 1280 × 720) 60 Hz: 30 fps (2688 × 1520 1920 × 1080 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (640 × 480 640 × 360) 60 Hz: 30 fps (640 × 480 640 × 360) |
|
Third Stream |
50 Hz: 10 fps (1920 × 1080 1280 × 720 640 × 480 640 × 360) 60 Hz: 10 fps (1920 × 1080 1280 × 720 640 × 480 640 × 360) *Third stream is supported under certain settings. |
|
Video Compression |
Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
H.265 Type |
Main Profile |
|
H.264+ |
Main stream supports |
|
H.265+ |
Main stream supports |
|
Bit Rate Control |
CBR/VBR |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Region Of Interest (ROI) |
1 fixed region for main stream and sub-stream |
|
Audio |
|
|
Environment Noise Filtering |
Yes |
|
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
|
Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
|
Network |
|
|
Simultaneous Live View |
Up to 6 channels |
|
API |
Open Network Video Interface (PROFILE S PROFILE G PROFILE T) ISAPI SDK |
|
Protocols |
TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP NTP UPnP SMTP IGMP 802.1X QoS IPv4 IPv6 UDP Bonjour SSL/TLS PPPoE SNMP ARP |
|
User/Host |
Up to 32 users. 3 user levels: administrator operator and user Password protection complicated password HTTPS encryption IP address filter |
|
Security |
Security Audit Log basic and digest authentication for HTTP/HTTPS TLS 1.1/1.2 WSSE and digest authentication for Open Network Video Interface MicroSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS SMB/CIFS) auto |
|
Network Storage |
network replenishment (ANR) Together with high-end Hikvision memory card memory card encryption and health detection are supported |
|
Client |
iVMS-4200 Hik-Connect Hik-Central |
|
|
|
|
Web Browser |
Plug-in requIRed live view: IE 10+ Plug-in free live view: Chrome 57.0+ FIRefox 52.0+ Local service: Chrome 57.0+ FIRefox 52.0+ |
|
Image |
|
|
SNR |
≥ 52 dB |
|
Day/Night Switch |
Day Night Auto Schedule |
|
Image Enhancement |
BLC HLC 3D DNR |
|
Image Parameters Switch |
Yes |
|
Image Settings |
Rotate mode saturation brightness contrast sharpness gain white balance adjustable by client software or web browser |
|
Interface |
|
|
Alarm |
1 input 1 output (max. 24 VDC/24 VAC 1 A) 1 input (line in) terminal block max. input amplitude: 3.3 Vpp input impedance:2.2 KΩ interface type: non-equilibrium; |
|
Audio |
1 output (line out) terminal block max. output amplitude: 3.3 Vpp output impedance: 10 Ω interface type: non-equilibrium; 1 built-in speaker 1 built-in microphone |
|
Built-In Microphone |
Yes |
|
Built-In Speaker |
Power: 2 W. Max. sound pressure level: 10 cm: 97 dB. |
|
On-Board Storage |
Built-in micro SD/SDHC/SDXC slot up to 256 GB |
|
Hardware Reset |
Yes |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Event |
|
|
Basic Event |
Motion detection (human and vehicle targets classification) video tampering alarm exception |
|
Smart Event |
Scene change detection |
|
Deep Learning Function |
|
|
Face Capture |
Yes |
|
Perimeter Protection |
Line crossing detection intrusion detection region entrance detection region exiting detection |
|
General |
|
|
Linkage Method |
Upload to NAS/memory card/FTP notify surveillance center trigger recording trigger capture send email strobe light audible warning |
|
Web Client Language |
33 languages English Russian Estonian Bulgarian Hungarian Greek German Italian Czech Slovak French Polish Dutch Portuguese Spanish Romanian Danish Swedish Norwegian Finnish Croatian Slovenian Serbian Turkish Korean Traditional Chinese Thai Vietnamese Japanese Latvian Lithuanian Portuguese (Brazil) Ukrainian |
|
General Function |
Anti-flicker heartbeat mIRror privacy mask flash log password reset via email pixel counter |
|
Software Reset |
Yes |
|
Firmware Version |
V5.5.112 |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup And Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25% PoE: 802.3af Class3 |
|
Power Consumption And Current |
12 V 0.88 A max. 10.5 W PoE (802.3af 36 V to 57 V) 0.34 A to 0.21 A max: 12 W |
|
Power Interface |
Ø 5.5 mm coaxial power plug |
|
Camera Material |
Aluminum alloy body |
|
Approval |
|
|
Emc |
FCC (47 CFR Part 15 Subpart B); CE-EMC (EN 55032: 2015 EN 61000-3-2: 2014 EN 61000-3-3: 2013 EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6 2016); KC (KN 32: 2015 KN 35: 2015)UL |
|
Safety |
(UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013 IEC 62368-1: 2014 ); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013 IEC 62368-1: 2014 ); LOA (IEC/EN 60950-1) |
|
Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|
Protection |
IP67 (IEC 60529-2013) |
|
Camera Dimension |
Ø 105 mm × 287.6 mm (Ø 4.1" × 11.3") |
|
Camera Weight |
Approx. 1135 g (2.5 lb.) |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Network Bullet Camera |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
