LAST SOLD AT ₹ 409,900.00
SKU # 1000047495

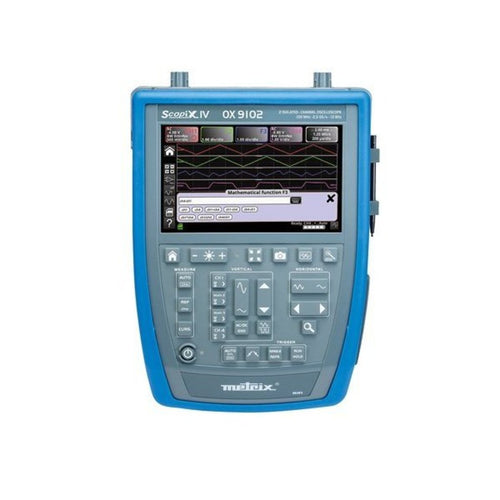

Krykard Portable Oscilloscope with Isolated Channel OX 9102

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
7‘’ WVGA color TFT LCD touch screen
-
Touch screen – ANDROID-type icons and graphical commands – customizable channel colours
-
Automatic Measurements
-
The MATH Functions
-
The Read Time Fast Fourier Transform (FFT) for Frequency decomposition of your signals on 4 Channels
-
Wired ETHERNET LAN network with Integrated DHCP Server for Easy connection to your network with the Possibility of activating the WiFi radio link to Communicate with a PC, table Smart phone using the Dedicated interfaces
-
USB for Interfacing with a PC: record, recall or load Configurations
-
μSD > 8 GB, default Storage, given priority over the 1 GB Internal Memory
Product Specification
Brand |
krykard |
Product Code |
OX 9102 |
Product Type |
Oscilloscope |
Number of channels |
2 isolated channels |
Bandwidth |
100 MHz |
Input impedance |
1 mΩ ± 0.5%, approx. 12pF |
Maximum sampling rate |
2.5 GS/s in one-shot Mode on Each Channel |
Memory depth |
100 Kpts per channel and file Viewer in the manager |
AC, DC and AC + DC voltages |
600 mV to 600 VRMS, 800 mV to 800 VDC – VDC accuracy +/- (0.5 % + 25 D) – 200 kHz bandwidth |
Resistance / Capacitance |
80 Ω to 32 MΩ / 5 nF to 5mF |
Frequency |
200 kHz |
Single and three-Phase Power |
Active, Reactive and Apparent power values plus Power Factor simultaneously with the U & I measurements |
Logger |
Duration 20000 s- Interval 0.2 s – Files100000 measurements |
PC communication – software link |
Ethernet (100 baseT), WiFi-USB (device, 12 Mbs) – "ScopeNet" application software for PC |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Portable Oscilloscope |
Manufacturer Details |
Atandra Energy Private Limited No. 5, Kumaran Street, Pazhvanthangal, Chennai – 600 114.Tamil Nadu,India Phone:+91 44 4278 0600 Email:energy@atandra.in |
Packer Details |
Atandra Energy Private Limited No. 5, Kumaran Street, Pazhvanthangal, Chennai – 600 114.Tamil Nadu,India Phone:+91 44 4278 0600 Email:energy@atandra.in |
Country of Origin |
India |
