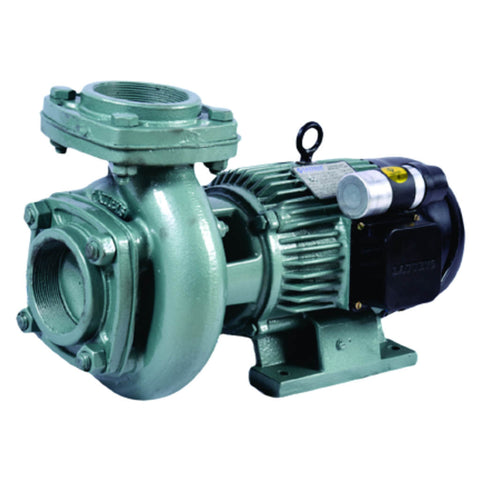

Latteys Centrifugal Monoblock Pump Single Phase 1 Stage 0.5HP FGLCM035

Latteys Centrifugal Monoblock Pump Single Phase 1 Stage 0.5HP FGLCM035

Visit the Latteys Store

₹ 7,099.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons

Ganesh Chaturthi Smart Deals

Coupon Image

Use the coupon codes purchase of ₹3,000/- & above

Above ₹3,000 Use
GC100
Above ₹10,000 Use
GC200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Latteys Centrifugal Monoblack Pumps are manufactured as per IS: 8079

  • These pumps and impellers are specially designed to get the best hydraulic efficiency

  • At the same time, the totally enclosed fan-cooled system is suitable for conditions where there is a wide voltage fluctuation

  • Salient Feature

  • Longer product life

  • Easy to install, easy to start

  • Efficient energy saving

  • Value for money

  • 100% cost recovery in just 30 months

  • High Discharge & Suction

  • Wide Voltage Range

  • Application

  • Agriculture

  • Boosting Water Pressure

  • Domestic & Hospitality Industry

  • RO water treatments

  • Social Water Heater

  • Material Of Construction

  • Motor Body

  • Cast Iron Grade CI FG 260

  • Stator

  • Vacuum Impregnated and epoxy coated for corrosion resistance

  • Thick end laminations are provide to protect motor windings

  • Rotor

  • Aluminum Die Cast Rotor dynamically balanced for Vibration free smooth operation

  • Stamping

  • Electrical Steel High Grade For Better Performance

  • Windings

  • Enameled insulated EC Grade copper

  • Bearings

  • High-carbon chromium steel Pre-lubricated double-shielded Ball bearing with high load bearing capacity

  • Impeller

  • Cast Iron Grade CI FG 260 High quality abrasion resistant Impeller dynamically balanced

  • Volute

  • Cast Iron Grade CI FG 260

  • Shaft

  • AISI 420/410 Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances

  • Pressure Tank

  • Imported tanks are meant to assure safe working and prolonged operational consistency

Product Specification

Brand

Latteys

Product Type

Centrifugal Monoblock Pump

Product Code

FGLCM035

HP/kW

0.5/0.375

Stage

1

Phase

Single Phase

Voltage

215 V

Speed

2800 RPM

Suction

40 mm

Delivery

40 mm

Head

10

Discharge

300 lpm

Head Range

10 - 14 Meter

Warranty

1 Year


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Centrifugal Monoblock Pumps

Manufacturer Details

Latteys Industries Ltd Plot No 16, Phase 1/2, GIDC Naroda, Ahmedabad 382330 Email : info@latteysindustries.com Phone : +91 7861813632

Packer Details

Latteys Industries Ltd Plot No 16, Phase 1/2, GIDC Naroda, Ahmedabad 382330 Email : info@latteysindustries.com Phone : +91 7861813632

Country of Origin

India
