48 hours

SKU # 1000077787

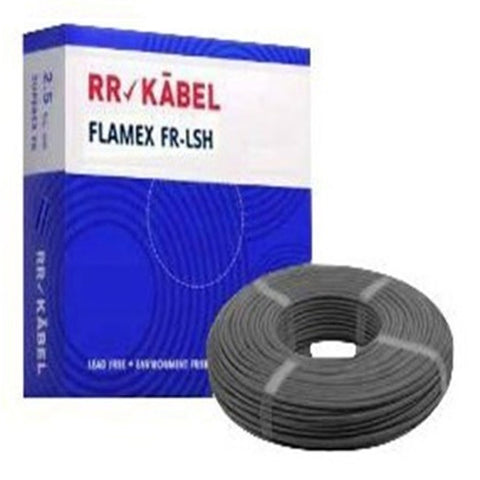

RR KABEL Flamex Flame Retardant Low Smoke(FRLS) Cable 200 meter 4Sq.mm

RR KABEL Flamex Flame Retardant Low Smoke(FRLS) Cable 200 meter 4Sq.mm


₹ 11,660.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • India’s 1st REACH and RoHS Compliant Cable | Flame Retardant Low Smoke Low Halogen

  • REACH, ROHS, CE and CPR Compliant

  • Anti-Rodent, Anti-Termite

  • 100% Electrolytic Copper

  • More than 101% Conductivity

  • Application

  • Suitable for use in conduit and for fixed, protected installation particularly suitable for wiring in fire and explosion prone areas, chemical factories, densely wired areas, public buildings, schools, hospitals, commercial complexes, theatres, etc.

  • Conductor

  • Thin strands of electrolytic copper are multi-drawn for uniformity of resistance, dimension and flexibility

  • Insulation

  • Specially formulated flame retardant low smoke low halogen compound to restrict the spread of flames in fire situation

  • The smoke emitted by the burning cable is considerably low compared to traditional cables

  • This ensures improved visibility for evacuation of trapped victims and facilitates fire fighting operation

  • Insulation Conformity

  • IS 5831 Type A/D FR-LSH 70°C

  • Colours

  • Entire cable has white base and a double strip of Green, Black, Red, Yellow, Blue, Grey, running along the cable length

  • Marking

  • The cables are printed with the marking of 'FLAMEX FR-LSH’

Product Specification

Brand

RR KABLE

Product Type

Flame Retardant Low Smoke(FRLS) Cable

Product Model

Flamex

Nominal Cross Sectional Area (Sq. mm)

4

Cable Length

200 Meter

Colours

Green

Black

Red

Yellow

Grey

Nominal Insulation Thickness (mm)

0.8

Number Nominal Dia. of Strands

56/0.3

Approx. Overall Diameter (mm)

4.1

Max. DC Conductor Resistance at 20°C (Ω/km)

4.95

Current Rating (Amps)

Casing : 30

Concealed : 26

Approvals

IS 694 marked, FIA/TAC

Voltage Grade

Up to and including 1100V


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

FRLS Cable

Manufacturer Details

RR Global Oasis Complex, Ram Ratna House, Pandurang Budhkar Marg, Worli, Mumbai, Maharashtra 400013 Email Id: mumbai.rrkabel@rrglobal.com

Packer Details

RR Global Oasis Complex, Ram Ratna House, Pandurang Budhkar Marg, Worli, Mumbai, Maharashtra 400013 Email Id: mumbai.rrkabel@rrglobal.com

Country of Origin

India
