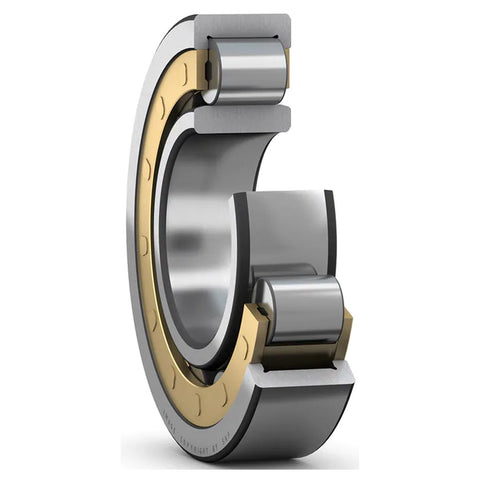

SKF Single Row Cylindrical Roller Bearing NU 224 ECM/C3
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds
-
The bearings incorporate a maximum number of rollers as they are not equipped with a cage
-
Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings can accommodate axial displacement in one direction
-
A retaining ring on the outer ring holds the bearing together
-
The retaining ring should not be loaded axially during operation
-
Very high radial load carrying capacity
-
High radial stiffness
-
Long service life
-
Locate the shaft axially in one direction
Product Specification
|
Brand |
SKF |
|
Product Type |
Bearing |
|
Product Code |
NU 224 ECM/C3 |
|
Basic Dynamic Load Rating |
390 kN |
|
Basic Static Load Rating |
430 kN |
|
Limiting Speed |
3600 r/min |
|
Reference Speed |
3400 r/min |
|
Bore Diameter |
120 mm |
|
Outside Diameter |
215 mm |
|
Width |
40 mm |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Unit of Measurement |
1 Piece |
|
Weight |
10000 kg |
|
Generic Type |
Cylindrical Roller Bearing |
|
Manufacturer Details |
SKF India Limited Chinchwad, Pune , Maharashtra, 411 033, india Phone : 1800 222 007 |
|
Packer Details |
SKF India Limited Chinchwad, Pune , Maharashtra, 411 033, india Phone : 1800 222 007 |
|
Country of Origin |
India |
