SKU # 1000118260

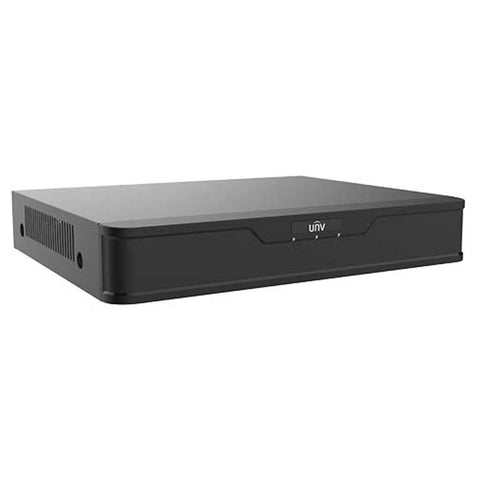

UNV Hybrid 1-SATA Digital Video Recorder 4CH XVR301-04G3
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Support H.265/H.264 video formats
-
Support audio over coaxial cable
-
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
-
4/8-channel BNC input
-
Support 1-ch HDMI output, 1-ch VGA output at up to 1920x1080
-
Long transmission distance over coaxial cable
-
Support mainstream cameras of ONVIF and RTSP protocols
Product Specification
| Brand | UNV | |
| Product Type | XVR Recorder | |
| Product Model | XVR301-04G3 | |
| Video/Audio Input | ||
| Analog Video Input | 4-Ch ,BNC | |
| IP Video Input | 2-ch(only IP up to 6ch), each channel up to 4MP | |
| Supported Analog Camera Types | Support AHD Input: 5MP@20fps | |
| Audio Input | 1-ch, RCA | |
| Audio Compression | G.711U | |
| Video/Audio Output | ||
| VGA Output | 1920x1080p/60Hz,1920x1080p/50Hz, 1600x1200/ 60 Hz,1280x1024/60Hz,1280x720/60Hz, 1024x768/ 60Hz | |
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | HD:2-ch | |
| Live View Display | HDMI/VGA: 1/4/6/8/9 | |
| Two-Way Audio | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 16Mbps (Up to 24Mbps after all analog channel conversion) | |
| Outgoing Bandwidth | 48Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |
| Browser | IE(IE10/11) for Windows | |
| Encoding | ||
| Recording Resolution | 5MP Lite/4MP Lite/1080P/720P/CIF | |
| Recording Frame Rate | Main Stream | Sub Stream |
| 5MP Lite@12fps | D1@12fps | |
| 4MP Lite@15fps | D1@15fps | |
| 1080P@15fps | D1@15fps | |
| 720P@25fps | D1@25fps | |
| Audio Sample Rate | 8KHz,16 bit per channel | |
| Audio Bit Rate | 64Kbps per channel | |
| Decoding | ||
| Capability | Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 | |
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 8TB for each HDD | |
| General Alarm | ||
| General Alarm | Motion detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 2 x USB2.0 | |
| General | ||
| Power Supply | 12V DC | |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Colour | Black | |
| Warranty | As Per Manufacturer Terms and Condition | |
Other Details
| Dimension (MM) W x D x H | 260 x 226 x 47 |
| Unit Of Measurement | 1 Piece |
| Weight | 1.1 kg |
| Generic Name | XVR Recorder |
| Manufacturer Details | Zhejiang Uniview Technologies Building No.10,Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051) |
| Packer Details | UNIVIEW TECHNOLOGY (I) PVT LTD. No.3, Sunguvar street,Chindatripet,Chennai-600002. Phone : 044 - 40019039 |
| Country Of Origin | China |
