LAST SOLD AT ₹ 25,350.00
SKU # 1000082331

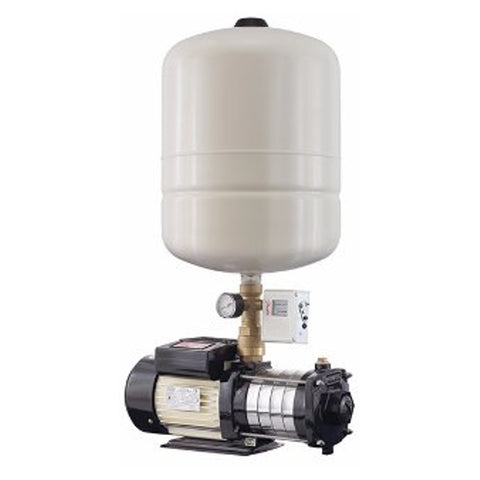

V-Guard Centrifugal Booster Pump 1Ph 0.75HP VB24-TF3A

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Body: Aluminium Motor Body
-
Impeller & Diffuser Material: SS304
-
Motor: The pumps are coupled to high efficient V-Guard induction motors
-
The motors are Totally Enclosed Fan Cooled (TEFC), Capacitor Start & Run Type
-
Also equipped with Thermal OverloadProtector (TOP) to avoid coil burn out
-
Using 99.99% pure super enameled copper wire for motor winding
-
Insulation: Class ‘B’
-
Bearing: Double sealed ball bearing with life lubrication
-
Direction of rotation: Clockwise while viewed from motor side
-
Motor shaft: High quality alloy steel
Product Specification
|
Brand |
V-Guard |
|
Product Type |
Centrifugal Booster Pump |
|
Product Code |
VB24-TF3A |
|
Power (HP/kW) |
0.75/0.55 |
|
Phases |
Single Phase |
|
Total Head Range |
up to 36m (118feet) |
|---|---|
|
Maximum Suction Head |
7.5m (25feet) |
|
Maximum Liquid Temperature |
40⁰C |
|
Ambient Temperature |
35⁰C |
|
Speed |
2800RPM |
|
Version |
Single Phase AC, 50Hz |
|
Voltage Range |
180V- 240V |
|
Pipe Size (In cm) |
2.5x2.5 |
|
Pipe Size (In mm) |
25x25 |
|
Note |
Actual product image may vary from that shown on the picture |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Booster Pumps |
Manufacturer Details |
V-GUARD INDUSTRIES LTD. Regd. Office: 42/962, Vennala High School Road, Vennala, Kochi - 682028 Phone : +91 484 433 5000 Email: mail@vguard.in |
Packer Details |
V-GUARD INDUSTRIES LTD. Regd. Office: 42/962, Vennala High School Road, Vennala, Kochi - 682028 Phone : +91 484 433 5000 Email: mail@vguard.in |
Country of Origin |
India |
