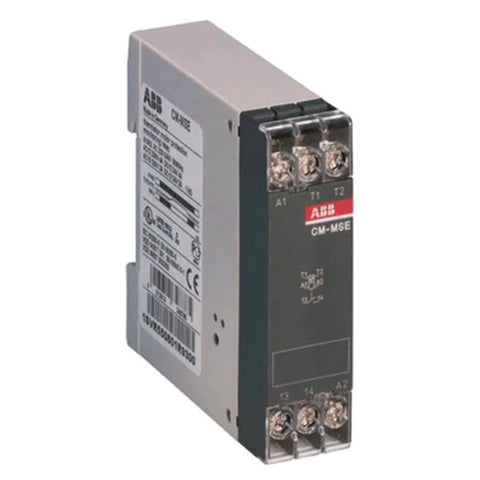

ABB AC Type Thermistor Motor Protection Relay 1n/o 24V

ABB AC Type Thermistor Motor Protection Relay 1n/o 24V


₹ 5,000.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The CM-MSE relay is from the CM thermistor motor protection relay range. This relay operates with a rated control supply voltage of 24 V AC and has a 1 n/o output contact rated at 250 V / 4 A

  • It features one sensor circuit for monitoring of PTC temperature sensors or bimetals. This relay offers automatic reset and works according to the closed-circuit principle

  • A sealable transparent cover for protection against unauthorized changes is available as accessory

  • Function : 1 sensor circuit , Auto reset

  • Rated Control Supply Voltage (Us) : 24 V AC

  • Output : 1 n/o contact

  • Terminal Type : Screw Terminals

  • Standards : EN 50581,IEC/EN 61000-6-2,IEC/EN 61000-6-3,UL 508,CAN/CSA C22.2 No.14

  • Product Net Width : 22.5 mm

  • Product Net Height : 78 mm

  • Product Net Depth / Length : 78.5 mm

  • Product Net Weight : 0.105 kg

Product Specification

Type

Rated control supply voltage

Product ID

CM-MSE

24 V AC

1SVR550805R9300

CM-MSE

110-130 V AC

1SVR550800R9300

CM-MSE

220-240 V AC

1SVR550801R9300

CM-MSS.12S

24 V AC/DC

1SVR730700R0100

CM-MSS.12P

24 V AC/DC

1SVR740700R0100

CM-MSS.13S

110-130 V AC/220-240 V AC

1SVR730700R2100

CM-MSS.13P

110-130 V AC/220-240 V AC

1SVR740700R2100

CM-MSS.22S

24 V AC/DC

1SVR730700R0200

CM-MSS.22P

24 V AC/DC

1SVR740700R0200

CM-MSS.23S

110-130 V AC/220-240 V AC

1SVR730700R2200

CM-MSS.23P

110-130 V AC/220-240 V AC

1SVR740700R2200
