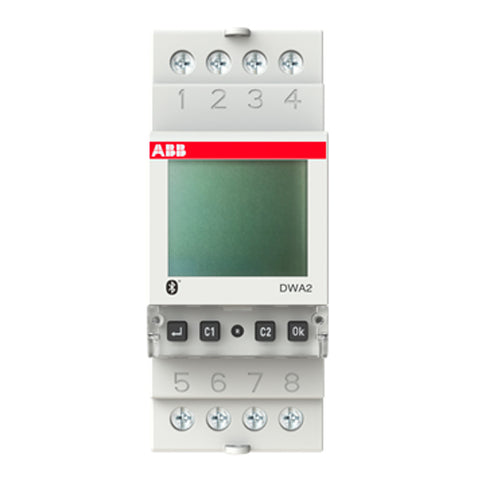

ABB DWA-2 Twilight Astronomical Switch 2 Channel 2CSM222501R1000

ABB DWA-2 Twilight Astronomical Switch 2 Channel 2CSM222501R1000

Visit the ABB Store

₹ 32,926.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The astronomical switches DWA2 with 2 channel, automatically control lighting circuits depending on the time of sunrise and sunset, greatly increasing energy efficiency

  • The programming is in fact based on a mathematical algorithm able to calculate the time of the rising and setting of the sun in a certain location for each day of the year

  • Once powered the device, simply insert date, time, geographical coordinates and time zone so that it is ready to work

  • These settings can also be automatically defined using the DBT Timer APP

  • The installation of astronomical digital time switches is particularly useful when using a twilight switch with external sensor is not recommended because it may be subject to malfunctions caused by air pollution, excessive brightness or vandalism

  • DWA2 are also indicated for the control of public lighting, shop windows of shops, neon signs, monuments, facades, illuminated fountains

Product Specification

Brand

ABB

Product Type

Astronomical Switches

Model

DWA-2

Product Code

2CSM222501R1000

Technical

Rated Operational Voltage

115 ... 230 V AC

Operational Voltage

195.5 … 253 V AC

Supply Voltage

115 ... 230 V AC

Function

Weekly astro

Rated Impulse Withstand Voltage (Uimp)

Maximum 4 kV

Maximum Switching Current

16 A

Rated Frequency (f)

50 ... 60 Hz

Maximum Load Capacity

16 A
10 A

Power Supply

230 V AC

Number Of Channels

2

Maximum Switching Power

4000 V·A

Power Consumption (@Pcons)

2 W

Power Loss

2 W

Accuracy

± 0.5sec/24h

Maximum Number Of Programs

120

Tightening Torque

0.5 N·m

Minimum Switching Time

1 minute [unit of time]

Contact Type

Change-Over (CO)

Meter Type

Digital

Mounting Type

DIN rail

Options Provided

With running reserve

Battery Chemical Composition

Lithium

Battery Type

Button Cell

Battery Life

5 year

Battery Weight

0.003 kg

Number Of Batteries

1

Connecting Capacity

Solid 2.5 mm²

Standards

EN 60730-2-7, EN-301 489-17, EN-300 328, EN-62479, EN 50581

Environmental

Ambient Air Temperature

Operation -20 ... +50 °C
Storage -25 ... +70 °C

Degree Of Protection

Housing IP20

Dimensions

Width In Number Of Modular Spacings

2

Product Net Width

35 mm

Product Net Height

65 mm

Product Net Depth / Length

87 mm

Product Net Weight

0.152 kg

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Astronomic Time Switch

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
