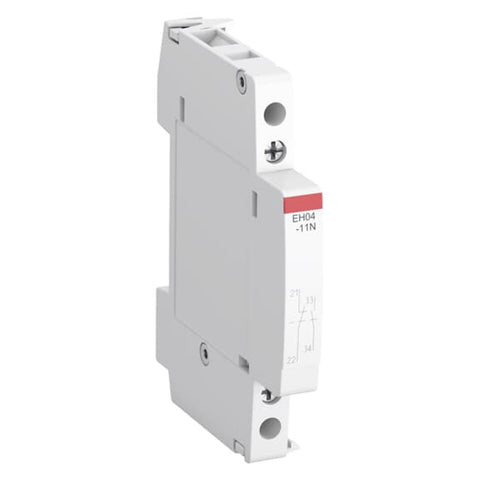

ABB EH04-11N Auxiliary Contact 1SAE901901R1011
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The EH04 are auxiliary contact blocks which can be used in combination with all the new ESB..N and EN..N installation Contactors
-
These devices are available in 2 different contact configurations and no Tool is needed for their assembling
Product Specification
|
Brand |
ABB |
|
Product Type |
Auxiliary Contact |
|
Product Code |
1SAE901901R1011 |
|
Model |
EH04-11N |
|
Technical |
|
|
Rated Operational Voltage |
Auxiliary Circuit 500 V AC |
|
Rated Frequency (f) |
Auxiliary
Circuit 50 Hz |
|
Rated Impulse Withstand Voltage (Uimp) |
Auxiliary Circuit 4 kV |
|
Rated Insulation Voltage (Ui) |
500 V |
|
Number Of Poles |
2 |
|
Degree Of Protection |
|
|
Tightening Torque |
|
|
Wire Stripping Length |
Auxiliary
Circuit, Top Terminals (1x 1.5) 7 mm |
|
Recommended Screw Driver |
Auxiliary Circuit Pozidriv 1 |
|
Standards |
IEC/EN 60947-5-1 |
|
Number Of Auxiliary Contacts NO |
1 |
|
Number Of Main Contacts NC |
0 |
|
Number Of Main Contacts NO |
0 |
|
Suitable For |
ESB16..N |
|
Suitable for Product Class |
Installation Contactors |
|
Technical UL/CSA |
|
|
Maximum Operating Voltage UL/CSA |
600 V AC |
|
Connecting Capacity Auxiliary Circuit UL/CSA |
Stranded 18-12 AWG |
|
Tightening Torque UL/CSA |
Auxiliary Circuit 8 in·lb |
|
Environmental |
|
|
Ambient Air Temperature |
|
|
Conventional Free-air Thermal Current (Ith) |
|
|
Maximum Operating Altitude Permissible |
2000 m |
|
Resistance To Shock Acc. To IEC 60068-2-27 |
11 ms Pulse 15g |
|
Resistance To Vibrations Acc. To IEC 60068-2-6 |
5g / 3 ... 150 Hz |
|
Dimensions |
|
|
Product Net Width |
9 mm |
|
Product Net Height |
65 mm |
|
Product Net Depth / Length |
85 mm |
|
Product Net Weight |
0.04 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Auxiliary Contacts |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
