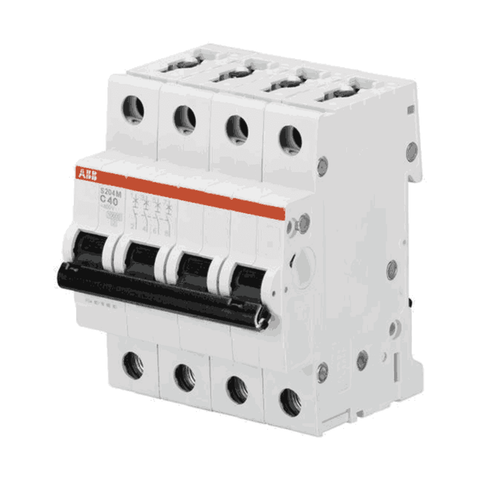

ABB MCB 0.5-63A 10 kA C Curve Four Pole S200M Series


ABB
Available



₹ 1,090.00

Check Pincode Availability

Product Description

  • S200M Miniature Circuit Breaker, DIN Rail Mounting,Four Pole

  • System pro M compact S200M miniature circuit breakers are current limiting.

  • They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection.

  • They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A).

  • All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications.

  • Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.

  • Product Net Width : 70 mm

  • Product Net Height : 88 mm

  • Product Net Depth / Length : 69 mm

  • Product Net Weight : 0.5 kg

  • Terminal : Fail safe bi-directional cylinder - lift terminal

  • Rated Frequency : 50/60 Hz

  • Real Contact position indication : Red ON / green OFF

Product Specification

Rated current

Code

Product id

0.5 A

S204M-C 0.5

2CDS274001R0984

1 A

S204M-C 1

2CDS274001R0014

1.6 A

S204M-C 1.6

2CDS274001R0974

2 A

S204M-C 2

2CDS274001R0024

3 A

S204M-C 3

2CDS274001R0034

4 A

S204M-C 4

2CDS274001R0044

6 A

S204M-C 6

2CDS274001R0064

10 A

S204M-C 10

2CDS274001R0104

16 A

S204M-C 16

2CDS274001R0164

20 A

S204M-C 20

2CDS274001R0204

25 A

S204M-C 25

2CDS274001R0254

32 A

S204M-C 32

2CDS274001R0324

40 A

S204M-C 40

2CDS274001R0404

50 A

S204M-C 50

2CDS274001R0504

63 A

S204M-C 63

2CDS274001R0634
