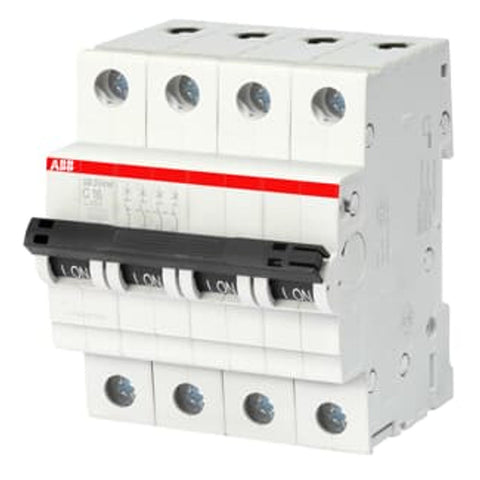

ABB SB200 M Series C Curve MCB 4P 0.5A-63A

Name: ABB SB200 M Series C Curve MCB 4P 0.5A-63A
Brand: ABB
SKU: 1000083431
Price: 1632.0 INR
Availability: InStock

Visit the ABB Store

₹ 2,518.00

Quantity



Pack Qty : 1

Delivery Availability

Offers and Coupons

Bestomart Diwali Sale 2025

Use the coupon codes purchase of ₹4,000/- & above

Above ₹2,500
Use

LIGHT100

Above ₹7,500
Use

CRACKER200

Above ₹15,000
Use

SHINE300

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

Function
Protection and control of the circuits against overloads and short-circuits; protection for resistive and inductive loads with low inrush current
Applications
Residential, commercial and industrial

Product Specification

Brand	ABB
Product Type	MCB
Series	SB200 M
Model	SB204 M-C
Rated Current \| Product Code	0.5A \| 1SYS274012R0984 1A \| 1SYS274012R0014 1.6A \| 1SYS274012R0974 2A \| 1SYS274012R0024 3A \| 1SYS274012R0034 4A \| 1SYS274012R0044 6A \| 1SYS274012R0064 10A \| 1SYS274012R0104 16A \| 1SYS274012R0164 20A \| 1SYS274012R0204 25A \| 1SYS274012R0254 32A \| 1SYS274012R0324 40A \| 1SYS274012R0404 50A \| 1SYS274012R0504 63A \| 1SYS274012R0634
Technical
Standards	IS/IEC 60898-1
Product Name	Miniature Circuit Breaker
Tripping Characteristic	C
Rated Voltage (Ur)	415 V
Operational Voltage	Maximum 264 V AC Maximum 60 V DC
Rated Impulse Withstand Voltage (U Imp )	4 kV
Rated Short-Circuit Capacity (I Cn)	10 kA
Rated Service Short- Circuit Breaking Capacity (I Cs )	10000 kA
Frequency (f)	50 Hz
Rated Frequency (f)	50 Hz
Energy Limiting Class	3
Electrical Endurance	20000AC cycle
Mechanical Endurance	20000 cycle
Number Of Poles	4
Number Of Protected Poles	4
Overvoltage Category	III
Tightening Torque	2 N·m
Actuator Type	Toggle
Screw Terminal Type	Cage Terminal
Actuator Marking	I / O
Actuator Material	Insulation Group II, Black, Sealable
Housing Material	Insulation Group II, RAL 7035
Mounting Position	Any
Recommended Screw Driver	Pozidriv 2
Remarks	IP40 in enclosure with cover
Connecting Capacity	rigid: 25 mm2 ; flexible: 16 mm2
Environmental
Ambient Air Temperature	Operation -25 ... +55 °C Storage -40 ... +70 °C
Reference Ambient Air Temperature	30 °C
Degree Of Protection	IP20
Pollution Degree	2
Environmental Conditions	28 cycle 55°C @ 90-96% 25°C @ 95-100%
Resistance To Vibrations Acc. To Iec 60068-2-6	5g - 20 cycles, at 5 ... 150 Hz, 6g at 35 Hz with load 0.8 In
Resistance To Shock Acc. To Iec 60068-2-27	25g / 2 shock / 13 ms
Dimensions
Product Net Width	70 mm
Product Net Height	85 mm
Product Net Depth / Length	69 mm
Product Net Weight	0.47 kg
Built-In Depth (t 2 )	69 mm
Warranty	As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	C Curve 4 Pole MCB
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Country of Origin	India
