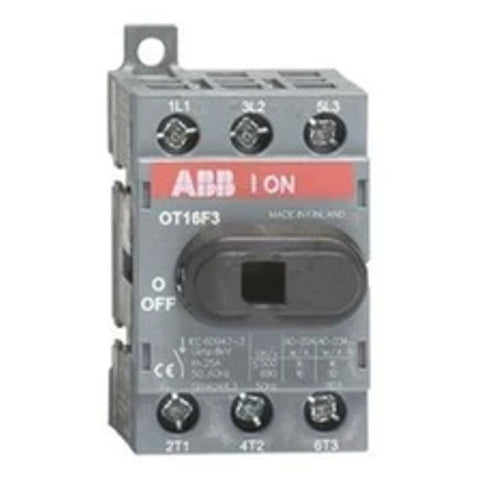

ABB OT Switch-Disconnector With Direct Knob Type Handle 16-125A Three-Pole

ABB OT Switch-Disconnector With Direct Knob Type Handle 16-125A Three-Pole


₹ 905.00

Quantity

Min Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle and shaft are not included

  • Number of Poles : 3

  • Product Net Width : 68 mm

  • Product Net Height : 35 mm

  • Product Net Depth / Length : 56 mm

  • Product Net Weight : 0.09 kg

  • Conventional Free-air Thermal Current (Ith) : q = 40 °C 25 A

  • Conventional Thermal Current (Ithe) : Fully Enclosed 25 A

  • Rated Impulse Withstand Voltage (Uimp) : 8 kV

  • Rated Insulation Voltage (Ui) : acc. to IEC/EN 60664-1 750 V

  • Rated Operational Voltage : Main Circuit 750 V

  • Rated Short-Circuit Making Capacity (Icm) : (690 V) 0.71 kA

  • Rated Short-time Withstand Current (Icw) : for 1 s 0.5 kA

  • Power Loss : at Rated Operating Conditions per Pole 0.3 W

  • Pollution Degree : 3

  • Handle Type : Knob Handle and shaft not included

  • Switches Operating Mechanism : Mechanism on Top of the Switch

  • Distance Between Phases : Standard

  • Position of Line Terminals : Top In - Bottom Out , Bottom In - Top Out

  • Operating Mode : Front operated

  • Standards : IEC 60947-3 / UL 508 / CSA C22.2 No. 14

  • Special Functions : No

  • Mounting Type : Base mounting

  • Cable Cross-Section : 0.75 to 10 mm²

  • Terminal Type : Screw Terminals

  • Tightening Torque : acc. IEC 60947-1 0.8 Nm N·m

Product Specification

Rated Current (A)

Code

Product Id

16

OT16F3

1SCA104811R1001

25

OT25F3

1SCA104857R1001

40

OT40F3

1SCA104902R1001

63

OT63F3

1SCA105332R1001

80

OT80F3

1SCA105798R1001

100

OT100F3

1SCA105004R1001

125

OT125F3

1SCA105033R1001
