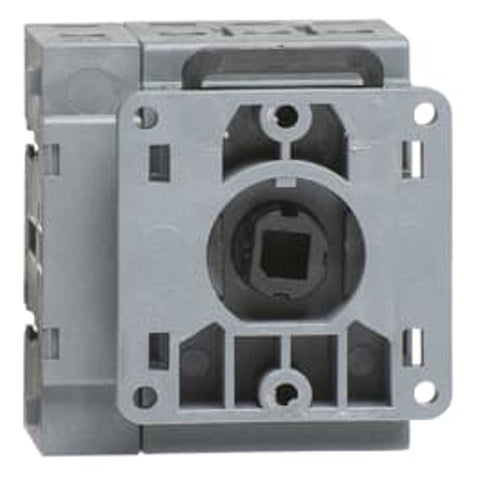

ABB OT16FT4N2 Door Mounted Switch Disconnector 4 Pole 1SCA105711R1001

ABB OT16FT4N2 Door Mounted Switch Disconnector 4 Pole 1SCA105711R1001


₹ 1,490.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 4-pole, front operated, door mounted switch-Disconnector / non-fusible diconnect switch with protected clamp terminals, handle is not included

Product Specification

Brand

ABB

Product Type

Switch Disconnector

Product Code

1SCA105711R1001

Model

OT16FT4N2

Technical

Rated Operational Current AC-21A (Ie)

(380 ... 415 V) 16 A, (500 V) 16 A, (690 V) 16 A

Rated Operational Current AC-22A (Ie)

(380 ... 415 V) 16 A, (500 V) 16 A, (690 V) 16 A

Rated Operational Current AC-23A (Ie)

(380 ... 415 V) 16 A, (500 V) 16 A, (690 V) 10 A

Rated Operational Power AC-23A (Pe)

(220 ... 240 V) 3 kW, (400 ... 415 V) 7.5 kW, (500 V) 7.5 kW, (690 V) 7.5 kW

Conventional Thermal Current (Ithe)

Fully Enclosed 25 A

Conventional Free-Air Thermal Current (Ith)

q = 40 °C 25 A

Rated Impulse Withstand Voltage (Uimp)

8 kV

Rated Insulation Voltage (Ui)

acc. to IEC/EN 60664-1 750 V

Rated Operational Voltage

Main Circuit 750 V

Rated Short-Circuit Making Capacity (Icm)

(690 V) 0.71 kA

Rated Short-Time Withstand Current Low Voltage (Icw)

for 1 s 0.5 kA

Power Loss

at Rated Operating Conditions per Pole 0.3 W

Pollution Degree

3

Fourth Pole Type

Switched - Simultaneous Function

Fourth Pole Position

Right Side

Handle Type

Handle and shaft not included

Distance Between Phases

Standard

Switches Operating Mechanism

Mechanism on Top of the Switch

Position Of Line Terminals

Top In - Bottom Out, Bottom In - Top Out

Number Of Poles

4

Operating Mode

Front operated

Standards

IEC 60947-3 / UL 508 / CSA C22.2 No. 14

Special Functions

No

Mounting Type

Door mounting

Cable Cross-Section

Cu 0.75...10 mm²

Terminal Type

Screw Terminals

Degree Of Protection

Front IP20

Tightening Torque

acc. IEC 60947-1 0.8 N·m

Mechanical Durability

20000

Lock Type

No

Technical UL/CSA

Ampere Rating UL/CSA

20 A

Tightening Torque UL/CSA

7 in·lb

Maximum Operating Voltage UL/CSA

600 V

Horsepower Rating UL/CSA

(110 ... 120 V AC) Single Phase 1 Hp
(240 V AC) Single Phase 2 Hp
(440 ... 480 V AC) Single Phase 5 Hp
(550 ... 600 V AC) Single Phase 7.5 Hp
(220 ... 240 V AC) Three Phase 5 Hp
(440 ... 480 V AC) Three Phase 10 Hp
(550 ... 600 V AC) Three Phase 10 Hp

Dimensions


Product Net Width

48.5 mm

Product Net Height

54 mm

Product Net Depth / Length

52 mm

Product Net Weight

0.13 kg

Warranty

As Per Manufacturer Terms and Condition
