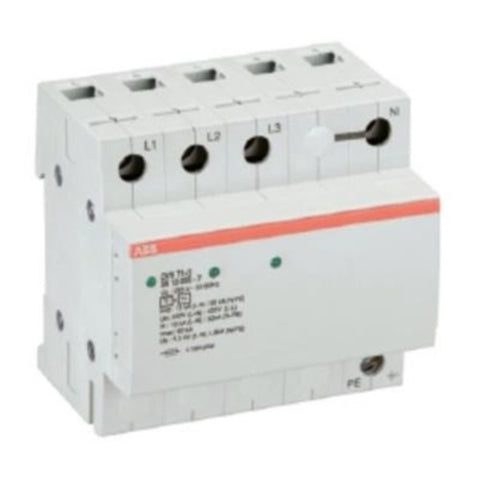

ABB OVR Surge Protective Device Spark Gap Type
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Type 1 SPDs can be installed at the entrance in the main switch board for protection of electrical installation and equipments against direct lightning surges
-
Product Name : Surge Protective Device
-
Product Main Type : T1
-
Product Type : QS
-
Product Net Width : 160,2 mm
-
Product Net Height :90 mm
-
Product Net Depth / Length : 64,8 mm
-
Product Net Weight :500 g
-
Number of Protected Poles : 4
-
Voltage Rating DC : 350 V
-
Short Circuit Withstand Icc : 50 kA
-
Impulse Current : I (imp, 10 / 350 µs) 2 kA , I (total, 10 / 350 µs) 25 kA
-
Discharge Current : Nominal 25 kA , Maximum 60 kA
-
Nominal AC Voltage of the System (Uo) : 230 / 400 V
-
Version : Fix
-
Suitable For : To protect the systems against the transient overvoltage (lightning)
-
Standards : IEC 61643-11 / EN 61643-11
Product Specification
|
Max. Voltage Uc (V) |
I max in kA ( 8/20us wave) |
No of Modules |
Product Id |
Type |
|
255 |
60 |
5 |
2CTB815101R8800 |
OVR T1 3N 25 255-7 |
|
275 |
80 |
4 |
2CTB815710R1900 |
OVR T1-T2 3N 12.5- 275s P QS |
|
275 |
80 |
4 |
2CTB815710R0700 |
OVR T1-T2 3N 12.5- 275s P TS QS |
|
440 |
80 |
4 |
2CTB815710R4800 |
OVR T1-T2 3N 12.5- 440s P QS |
|
440 |
80 |
4 |
2CTB815710R3600 |
OVR T1-T2 3N 12.5- 440s P TS QS |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Surge Protective Devices |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
