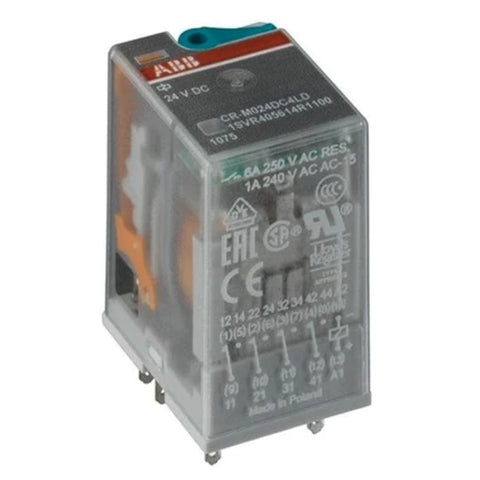

      ABB Pluggable Interface Relay CR-M Range Without LED

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
The CR-M pluggable interface relay is from the CR-M (miniature) relay range
-
This relay operates with a 12 V DC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 12 A
-
The relay has an integrated blue test button for manual actuation and locking of the output contacts
-
Standard sockets, logic sockets, pluggable function modules, holder and marker are available as accessories
-
Product Net Width : 21.2 mm
-
Product Net Height : 35.6 mm
-
Product Net Depth / Length : 27.5 mm
-
Product Net Weight : 0.033 kg
-
Function : Pluggable miniature interface relay CR-M
-
Sub-Function : Relay w/o built in LED
-
Output : 2 c/o (SPDT) contacts
-
Output Signal : 250 V / 12 A
-
Rated Control Supply Voltage (Us) : 12 - 230 V DC
Product Specification
|
 | Type | Product Id |
| 12 V DC | CR-M012DC2 | 1SVR405611R4000 |
| 24 V DC | CR-M024DC2 | 1SVR405611R1000 |
| 48 V DC | CR-M048DC2 | 1SVR405611R6000 |
| 60 V DC | CR-M060DC2 | 1SVR405611R4200 |
| 110 V DC | CR-M110DC2 | 1SVR405611R8000 |
| 125 V DC | CR-M125DC2 | 1SVR405611R8200 |
| 220 V DC | CR-M220DC2 | 1SVR405611R9000 |
| 24 V AC | CR-M024AC2 | 1SVR405611R0000 |
| 48 V AC | CR-M048AC2 | 1SVR405611R5000 |
| 110 V AC | CR-M110AC2 | 1SVR405611R7000 |
| 120 V AC | CR-M120AC2 | 1SVR405611R2000 |
| 230 V AC | CR-M230AC2 | 1SVR405611R3000 |
Other Details
| Dimension (CM) - L x B x H |
 |
| Unit of Measurement |
 |
| Weight | kg |
| Generic Type | Interface Relay |
| Manufacturer Details | ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
| Packer Details | ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
| Country of Origin | India |
