LAST SOLD AT ₹ 980.00
SKU # 1000017227

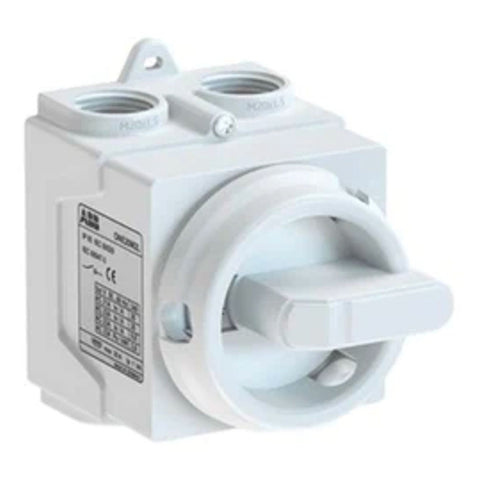

ABB Round Handle Enclosed Switch-Disconnector ONE20 NL Series
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Enclosed Switch Disconnector, 400V AC22 20A, Plastic enclosure, White Round handle
-
ONE20 switches can be used as main switches or for local isolation in various applications, such as HVAC, residential water pumps and heat pumps or commercial lighting
-
High quality
-
ABB is synonym of quality: each ONE20 switch is tested and approved at the factory. The enclosures are made of durable materials with high UV resistance, which makes it suitable for indoor or outdoor use
-
Reduced installation time
-
Compression glands are included in the delivery. They can be easily installed on the threaded knock-out cable entry
-
Simple and modern design
-
The enclosure is compact and has the same size for 2, 3 and 4 pole types. ONE20 is available in three colors
-
Maximized safety
-
The handle can be padlocked in the OFF position with up to three padlocks and in ON position with one padlock
-
Product Net Width : 65 mm
-
Product Net Height : 92 mm
-
Product Net Depth : 84 mm
-
Product Net Weight : 0.11 kg
-
Conventional Thermal Current (Ithe) : Fully Enclosed 20 A
-
Rated Insulation Voltage (Ui) : acc. to IEC/EN 60664-1 690 V
-
Power Loss : at Rated Operating Conditions per Pole 0 W
-
Handle Color : White
-
Handle Type : Round handle
-
Cable Cross-Section : 4 mm²
-
Cable Entry Position : Up/Down
-
Cable Outlets Per Side : 2xM20 / 2xM20
-
Degree of Protection : acc. to IEC 60529 IP67
-
Enclosure Material : Plastic
Product Specification
Poles |
Model |
Product id |
2 |
ONE20M2W |
1SCA138456R1001 |
3 |
ONE20M3W |
1SCA138457R1001 |
4 |
ONE20M4W |
1SCA138459R1001 |
2 |
ONE20M2G |
1SCA135532R1001 |
3 |
ONE20M3G |
1SCA135535R1001 |
4 |
ONE20M4G |
1SCA135538R1001 |
2 |
ONE20M2Y |
1SCA135533R1001 |
3 |
ONE20M3Y |
1SCA135536R1001 |
4 |
ONE20M4Y |
1SCA135540R1001 |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Switch Disconnector Fuses |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
