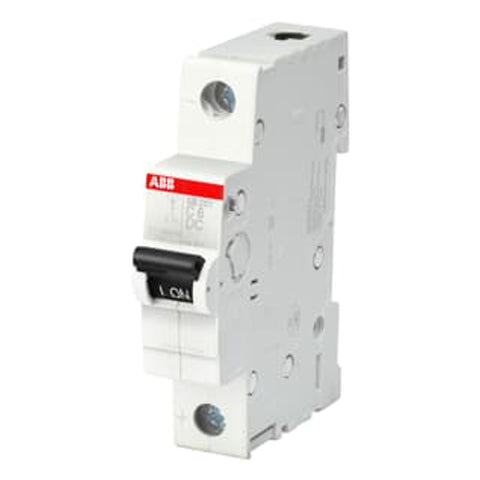

ABB SB200 DC Series C Curve MCB 1P 1.6A-63A

ABB SB200 DC Series C Curve MCB 1P 1.6A-63A


₹ 610.00

Quantity

Pack Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Function

  • Protection and control of the circuits against overloads and short-circuits; protection for resistive and inductive loads with low inrush current

  • Applications

  • Residential, commercial and industrial

Product Specification

Brand

ABB

Product Type

MCB

Series

SB200 DC

Model

SB201 DC C

Rated Current | Product Code

1.6A | 1SYS251067R0974

2A | 1SYS251067R0024

3A | 1SYS251067R0034

4A | 1SYS251067R0044

6A | 1SYS251067R0064

10A | 1SYS251067R0104

16A | 1SYS251067R0164

20A | 1SYS251067R0204

25A | 1SYS251067R0254

32A | 1SYS251067R0324

40A | 1SYS251067R0404

50A | 1SYS251067R0504

63A | 1SYS251067R0634

Technical

Standards

IS/IEC 60947-2

Product Name

Miniature Circuit Breaker

Tripping Characteristic

C

Rated Voltage (Ur)

250 V

Rated Impulse Withstand Voltage (U Imp )

4 kV

Rated Short-Circuit Capacity (I Cn)

6 kA

Rated Service Short- Circuit Breaking Capacity (I Cs )

6000 kA

Power Supply Connection

Please note polarity of device

Electrical Endurance

1000DC cycle

Mechanical Endurance

20000 cycle

Number Of Poles

1

Number Of Protected Poles

1

Tightening Torque

2 N·m

Actuator Type

Toggle

Actuator Marking

I / O

Actuator Material

Insulation Group II, Black, Sealable

Housing Material

Insulation Group I, RAL 7035

Mounting Position

Any

Recommended Screw Driver

Pozidriv 2

Remarks

IP40 in enclosure with cover

Connecting Capacity

rigid: 25 mm2 ; flexible: 16 mm2

Environmental

Ambient Air Temperature

Operation -25 ... +55 °C Storage -40 ... +70 °C

Reference Ambient Air Temperature

55 °C

Degree Of Protection

IP20

Pollution Degree

2

Environmental Conditions

28 cycle 55°C @ 90-96% 25°C @ 95-100%

Resistance To Vibrations Acc. To Iec 60068-2-6

5g - 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In (acc. to IEC/EN 60068-2-6)

Resistance To Shock Acc. To Iec 60068-2-27

25g / 2 shock / 13 ms

Dimensions

Product Net Width

17.5 mm

Product Net Height

85 mm

Product Net Depth / Length

69 mm

Product Net Weight

0.125 kg

Built-In Depth (t 2 )

69 mm

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

C Curve 1 Pole MCB

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
