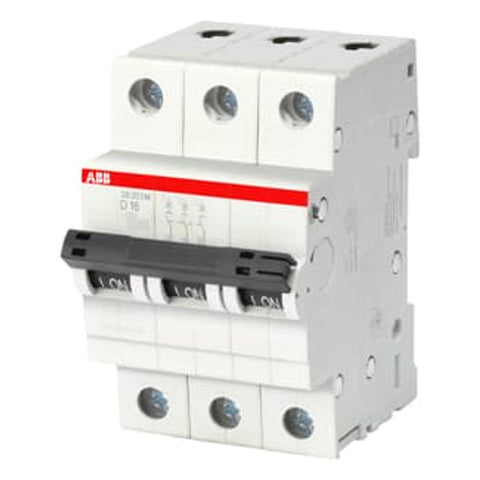

ABB SB200 M Series D Curve MCB 3P 0.5A-63A

ABB SB200 M Series D Curve MCB 3P 0.5A-63A


₹ 1,630.00

Quantity

Pack Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Function

  • Protection and control of the circuits against overloads and short-circuits; protection for resistive and inductive loads with low inrush current

  • Applications

  • Residential, commercial and industrial

Product Specification

Brand

ABB

Product Type

MCB

Series

SB200 M

Model

SB203 M-D

Rated Current | Product Code

0.5A | 1SYS273012R0981

1A | 1SYS273012R0011

1.6A | 1SYS273012R0971

2A | 1SYS273012R0021

3A | 1SYS273012R0031

4A | 1SYS273012R0041

6A | 1SYS273012R0061

10A | 1SYS273012R0101

16A | 1SYS273012R0161

20A | 1SYS273012R0201

25A | 1SYS273012R0251

32A | 1SYS273012R0321

40A | 1SYS273012R0401

50A | 1SYS273012R0501

63A | 1SYS273012R0631

Technical

Standards

IS/IEC 60898-1

Product Name

Miniature Circuit Breaker

Tripping Characteristic

D

Rated Voltage (Ur)

415 V

Operational Voltage

Maximum 457 V AC Maximum 120 V DC

Rated Impulse Withstand Voltage (U Imp )

4 kV

Rated Short-Circuit Capacity (I Cn)

10 kA

Rated Service Short- Circuit Breaking Capacity (I Cs )

10000 kA

Frequency (f)

50 Hz

Rated Frequency (f)

50 Hz

Energy Limiting Class

3

Electrical Endurance

20000AC cycle

Mechanical Endurance

20000 cycle

Number Of Poles

3

Number Of Protected Poles

3

Overvoltage Category

III

Tightening Torque

2 N·m

Actuator Type

Toggle

Screw Terminal Type

Cage Terminal

Actuator Marking

I / O

Actuator Material

Insulation Group II, Black, Sealable

Housing Material

Insulation Group II, RAL 7035

Mounting Position

Any

Recommended Screw Driver

Pozidriv 2

Remarks

IP40 in enclosure with cover

Connecting Capacity

rigid: 25 mm2 ; flexible: 16 mm2

Environmental

Ambient Air Temperature

Operation -25 ... +55 °C Storage -40 ... +70 °C

Reference Ambient Air Temperature

30 °C

Degree Of Protection

IP20

Pollution Degree

2

Environmental Conditions

28 cycle 55°C @ 90-96% 25°C @ 95-100%

Resistance To Vibrations Acc. To Iec 60068-2-6

5g - 20 cycles, at 5 ... 150 Hz, 6g at 35 Hz with load 0.8 In

Resistance To Shock Acc. To Iec 60068-2-27

25g / 2 shock / 13 ms

Dimensions

Product Net Width

52.5 mm

Product Net Height

85 mm

Product Net Depth / Length

69 mm

Product Net Weight

0.35 kg

Built-In Depth (t 2 )

69 mm

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

D Curve 3 Pole MCB

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
