LAST SOLD AT ₹ 640.00
SKU # 1000083546

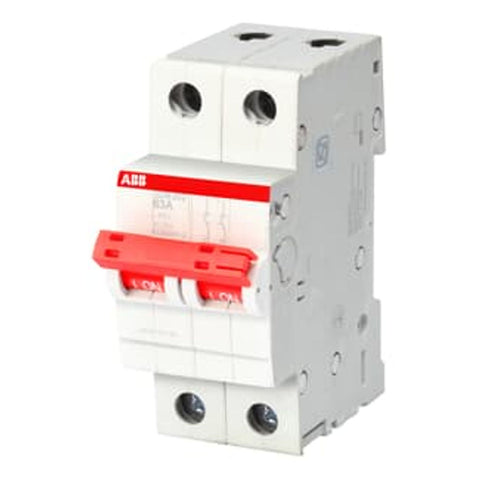

ABB SDB200 Series Switch Disconnector 2P
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Specification
Brand |
ABB |
Product Type |
Switch Disconnector |
Series |
SDB200 |
Model |
SDB202 |
Rated Current | Product Code |
40A | 1SYD272115R0040 63A | 1SYD272115R0063 |
Technical |
|
Operational Voltage |
Maximum 457 V AC Maximum 120 V DC |
Rated Impulse Withstand Voltage (U Imp ) |
4 kV 6.2 kV @ sea level 5 kV @ 2000 m |
Rated Frequency (f) |
50 Hz |
Electrical Endurance |
10000AC cycle ; 1000DC cycle |
Mechanical Endurance (Nendu): |
20000 cycle |
Number Of Poles |
2 |
Overvoltage Category |
III |
Tightening Torque |
2 N·m |
Actuator Type |
Toggle |
Screw Terminal Type |
Cage Terminal |
Actuator Marking |
I / O |
Actuator Material |
Insulation Group II, Red, Sealable |
Housing Material |
Insulation Group II, RAL 7035 |
Mounting Position |
Any |
Recommended Screw Driver |
Pozidriv 2 |
Accessories Available |
Yes |
Remarks |
IP40 in enclosure with cover |
Connecting Capacity |
rigid: 25 mm2 ; flexible: 16 mm2 |
Environmental |
|
Ambient Air Temperature |
Operation -25 ... +55 °C Storage -40 ... +70 °C |
Degree Of Protection |
IP20 |
Pollution Degree |
3 |
Environmental Conditions |
28 cycle 55°C @ 90-96% 25°C @ 95-100% |
Resistance To Vibrations Acc. To Iec 60068-2-6 |
5g - 20 cycles, at 5 ... 150 Hz,6g at 35 Hz with load 0.8 In (acc.to IEC/EN 60068-2-6) |
Resistance To Shock Acc. To Iec 60068-2-27 |
25g / 2 shock / 13 ms |
Dimensions |
|
Product Net Width |
35 mm |
Product Net Height |
85 mm |
Product Net Depth / Length |
69 mm |
Product Net Weight |
0.25 kg |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
2 Pole Switch Disconnectors |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
