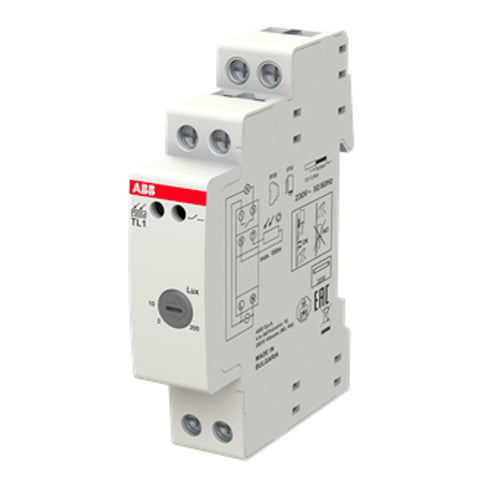

ABB TL1 Twilight Switch 1 Module 2CSM229921R1341

ABB TL1 Twilight Switch 1 Module 2CSM229921R1341

Visit the ABB Store

₹ 10,955.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • TL1 twilight switch allows to switch ON and switch OFF lighting devices according to a scheduled level of the ambient light

  • It is used in combination with an external sensor to detect if the ambient light is higher or lower than the set level

  • A switching delay prevents them from operating unnecessarily when the light intensity suddenly changes (e.g. lightning, moving vehicles, etc.)

  • The TL1 twilight switch 1 channel is preset with a 10 LUX from factory and it is equipped with 2 signalling LEDs that indicate the setpoint value and display the status of the contact

Product Specification

Brand

ABB

Product Type

Twilight Switches

Model

TL1

Product Code

2CSM229921R1341

Technical

Supply Voltage

110 ... 230 V AC

Function

Twilight

Maximum Switching Power

1000 W
300 W
300 W
100 W

Power Consumption (@Pcons)

0.4 W
0.9 W

Rated Frequency (f)

50 ... 60 Hz

Power Supply

110 ... 230 V AC

Power Loss

0.9 W

Number Of Channels

1

Delay Time (?)

On 20.7 ... 25.3 second [unit of time]
Off 20.7 ... 25.3 second [unit of time]

Tightening Torque

1.2 N·m

Contact Type

Normally Open (NO)

Lamp Type

LED

Meter Type

Analog

Mounting Type

DIN rail

Screw Type

PZ1

Illuminance

2 ... 200 lx

Number Of Batteries

0

Cable Length

100 m

Connecting Capacity

Solid 6 mm²

Terminal Type

Screw Terminals

Color

White

Lamp Color

Red / Green

Standards

EN 60669-1, EN 60662-2-1, EN 60730-1

Environmental

Ambient Air Temperature

Operation -25 ... 55 °C
Storage -40 ... 70 °C

Degree Of Protection

Housing IP20

Dimensions

Width In Number Of Modular Spacings

1

Product Net Width

17.5 mm

Product Net Height

86 mm

Product Net Depth / Length

65 mm

Product Net Weight

0.155 kg

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Twilight Switch

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
