LAST SOLD AT ₹ 21,385.00
SKU # 1000084641

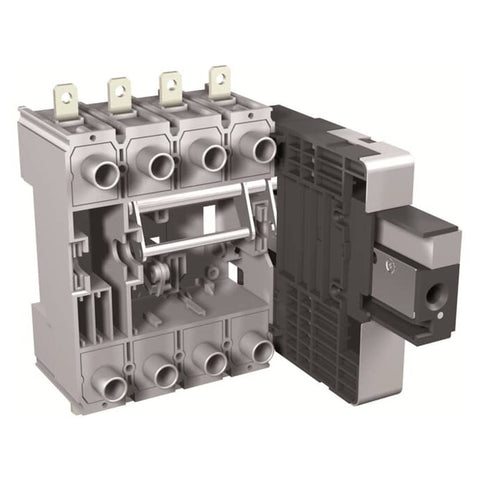

ABB XT4 W FP 3p EF Tmax Drawout Conversion Kit 1SDA068204R1

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
The withdrawable version must be composed as follows
-
Fixed circuit-breaker
-
Conversion Kit from fixed into moving part of withdrawable
-
Fixed part of withdrawable
-
Front for lever operating mechanism or rotary handle or motor operator
-
Sliding contacts blocks if the circuit-breaker is automatic or fitted with electrical accessories (only for T7)
-
For T5 630 -circuit-breaker and switch-disconnector in Plug-in and withdrawable version In max = 570 A
Product Specification
|
Brand |
ABB |
|
Product Type |
Drawout Conversion Kit |
|
Product Code |
1SDA068204R1 |
|
Type |
XT4 W FP 3p EF |
|
Technical |
|
|
Configuration Type |
Loose or configurable |
|
Number of Poles |
3 |
|
Product Main Type |
Accessories for Tmax XT |
|
Rated Frequency (f) |
50 / 60 Hz |
|
Rated Impulse Withstand Voltage (Uimp) |
8 kV |
|
Rated Insulation Voltage (Ui) |
1000 V |
|
Rated Operational Voltage |
690
V AC |
|
Rated Uninterrupted Current (Iu) |
250 A |
|
Standards |
IEC 60947 |
|
Sub-Type |
XT4 |
|
Suitable For |
XT4 |
|
Terminal Connection Type |
Withdrawable
Circuit-Breakers |
|
Version |
W |
|
Description |
FIXED PART WITHDRAWABLE FOR C.BREAKER TMAX THREE-POLE WITH EXTENDED FRONT TERMINALS XT4 |
|
Dimensions |
|
|
Product Net Width |
195 mm |
|
Product Net Height |
220 mm |
|
Product Net Depth / Length |
260 mm |
|
Product Net Weight |
1.5 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Drawout Kit |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
