Available

SKU # 1000009437

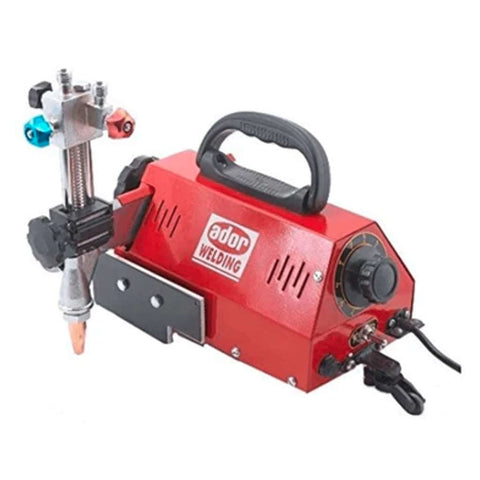

Ador gas Cutting Equipment King Panther-IM 2 Seat Injector Mix Type

Ador gas Cutting Equipment King Panther-IM 2 Seat Injector Mix Type


₹ 19,880.00

Quantity

Min Qty : 1



Delivery Availability

 Estimated Dispatch In 3-5 Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

Key Features And Specifications

  • Unique design with louvers for ventilation which reduces overheating of motor and electrical parts

  • Unbreakable,smooth and precise horizontal and vertical adjustment of torch

  • Bevel setting with locking facility ensures bevel accuracy during continuous cutting operation

  • Heat reflector with air gap, which protects the motor and other electrical parts from overheating

  • Non-metallic moulded lifting handle, hence machine can be lifted easily even if when it is hot

  • Travels on standard 1.8 meter long extruded Aluminium rail track

  • Versatile light weight and rugged machine designed for long, trouble free operation

Product Specifications

Technical Specifications

Specifications

Value

Cutting Capacity

Up to 75 mm thick Plate

Straight Cutting

In 1.8 meters length or its multiples by adding extra track

Circle Cutting (Optional)

From Ø150 mm to Ø1200 mm.

Bevel Cutting

Up to 45°, 50 mm thick plate

Cutting Speed

Min. 0-200 mm/min.(approx) Max. 800-1000 mm/min.(approx.)

Horizontal Adjustment of Cutting Torch

80 mm

Vertical Adjustment of Cutting Torch

60 mm

Weight of the machine

8 Kgs. (Approx.)

Power Supply

220/250V, 1ø, 50 Hz, or 220/250V DC

Speed Control

Wire Wound Potentiometer

Inlet Gas Hose connections for Gas Torch

1/4” BSP RH & LH

Cutting Nozzles (Optional)

75 mm Length, A type for Oxy-Acetylene and P type for Oxy-LPG
