LAST SOLD AT ₹ 51,566.00
SKU # 1000003257

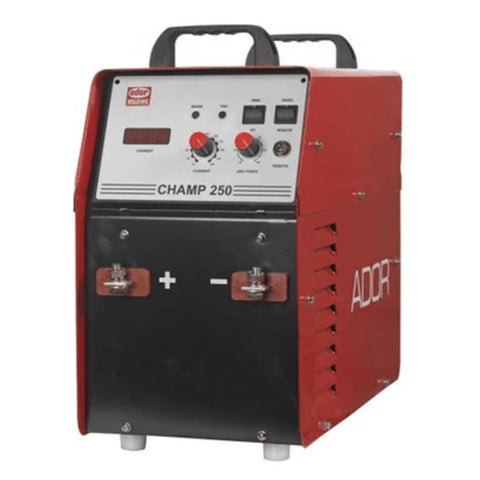

Ador Welding Machine CHAMP 250
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
General Features
-
The new word Class Inverter based Indigenous DC Welder
-
Three phase inverter based, high efficiency and high power factor heavy duty DC Welder
-
Enhanced Reliablity due to SMD technology
-
High frequency IGBT based Rectifier
-
Arc force adjustment on panel
-
TIG Welding possible With external HF Unit
-
Light Weight, Compact and Portable for easy handling
Salient Features
-
Latest PWM inverter technology
-
IGBT based
-
High efficiency
-
Built in Hot Start
-
Smooth and Stable arc With minimum spatter
-
Arc force adjustments provided on the front Panel
-
TIG operation possible With external HF TIG
-
control unit.
Protections With Auto Reset
-
Input supply Voltage protections for over and under Voltage
-
Over Temperature
-
Protection against Single phasing
Warranty
One year from the date of purchase. ADOR Welding Limited warrants that a new equipment sold from Plant/Area Offices / Authorised Distributors are free from defects in materials and workmanship and will perform in full accordance with applicable specifications.
Product Specifications
Technical Specifications |
Unit |
Champ 250 |
Input |
||
Voltage |
Volts. |
415 , +15%, -10% |
Phase |
No. |
3 |
Frequency |
Hz |
50/60 |
Input KVA at 415Vac |
||
at 100% duty Cycle |
KVA |
7.5 |
at No Load |
KVA |
0.15 |
Power Factor |
CosØ |
0.94 |
Efficiency |
% |
85 |
Output |
||
Open Circuit Voltage Welding Current Range |
Volts Amps |
84 10-250 |
Welding Current (40°C and 10 minute Cycle) |
|
|
at 60% duty Cycle |
Amps |
250 |
at 100% duty Cycle |
Amps |
195 |
General |
||
Suitable for Welding Electrode Size |
mm ø |
1.6, 2.5, 3.2, 4 and 5 mm |
Arc force setting |
- |
Adjustable by Potentiometer |
Built in Hot Start |
- |
25% more than set current for 2 second |
Current Display (Actual) |
- |
3 digit –7 segment digital panel pcb |
Ingress Protection |
Class |
IP23 |
Cooling |
Type |
Forced Air |
Insulation |
Class |
H |
Dimensions |
||
Length |
mm |
520 |
Width |
mm |
260 |
Height (With handle) |
mm |
450 |
Height (Without handle) |
mm |
410 |
Weight |
Kg |
26 |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Welding Machine |
Manufacturer Details |
Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236 |
Packer Details |
Ador Welding Ltd Survey No. 147, P.B. No. 2 Akurdi Chowk, Chinchwad , Pune, Maharashtra-411019, India Phone: +91-9540071236 |
Country of Origin |
India |
