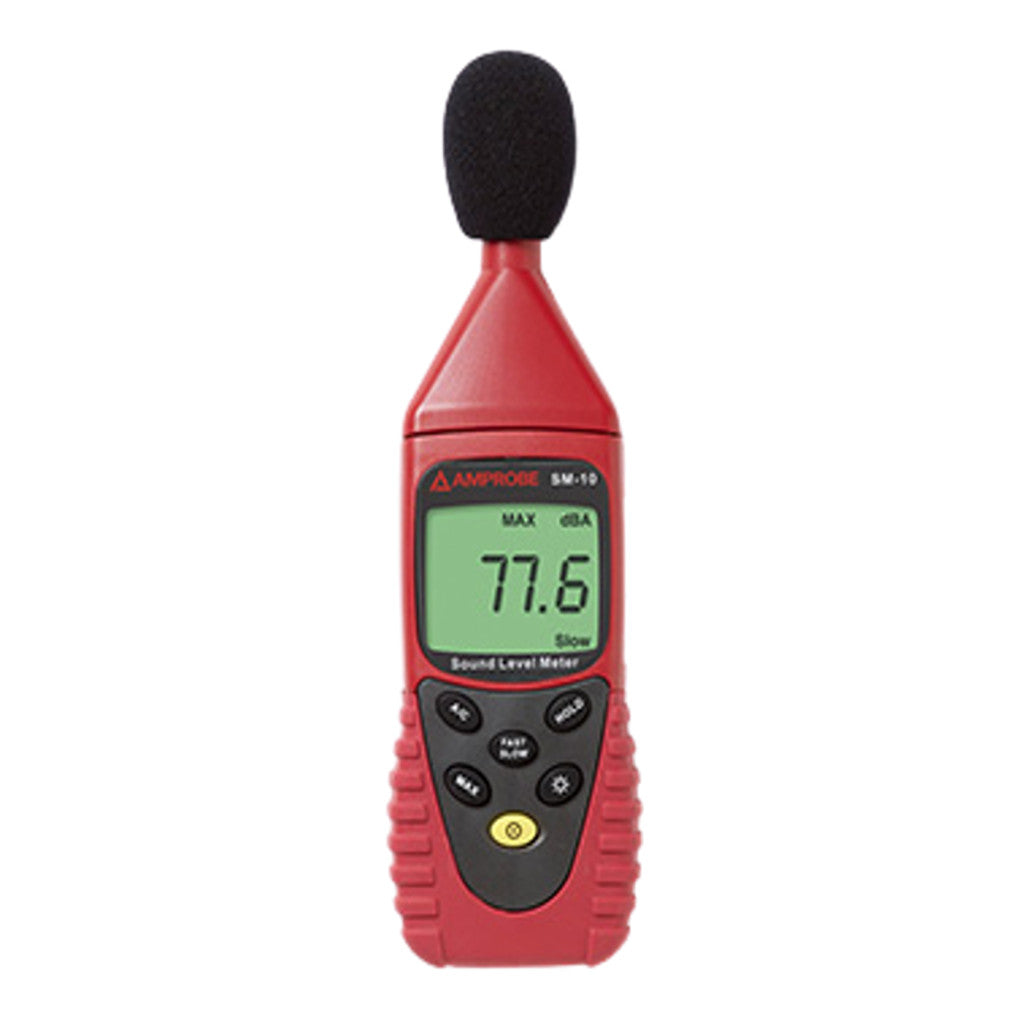

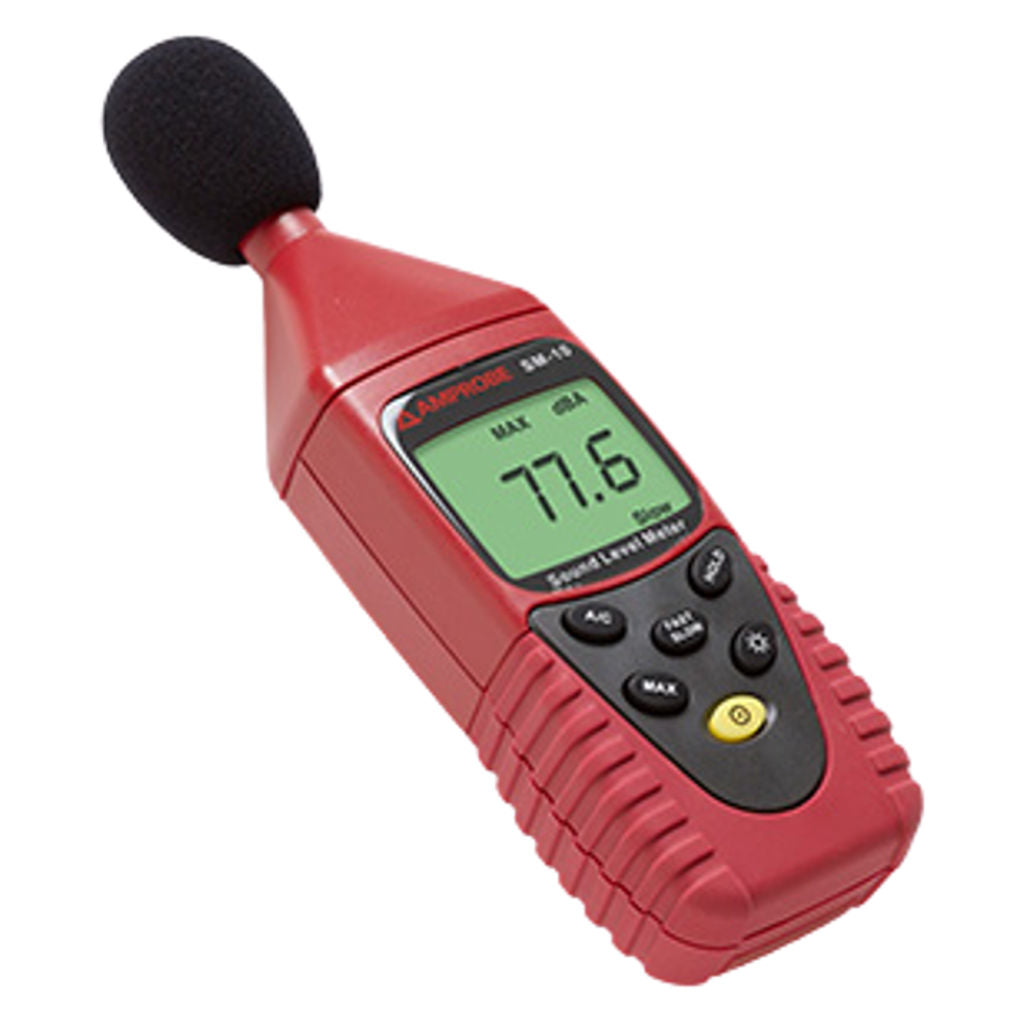

Amprobe Sound Meter SM-10

Amprobe Sound Meter SM-10

Visit the Amprobe Store
Mid-Year Value Sale

₹ 17,380.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Designed to meet the measurement requirements of safety engineers, health, industrial safety offices and quality control in various environments

  • A and C weightings for checking compliance with safety regulations as well as acoustic analysis

  • Measuring ranges: A weighting 30 ~130dB C weighting 35~130dB

  • Frequency range: 31.5Hz~8KHz

  • Display with 0.1dB steps on a 4 digits LCD

  • Slow (1 sec) and fast (125ms) response settings to check peak and average noise levels

  • Max/min recording

  • Data Hold to freeze reading on digital display

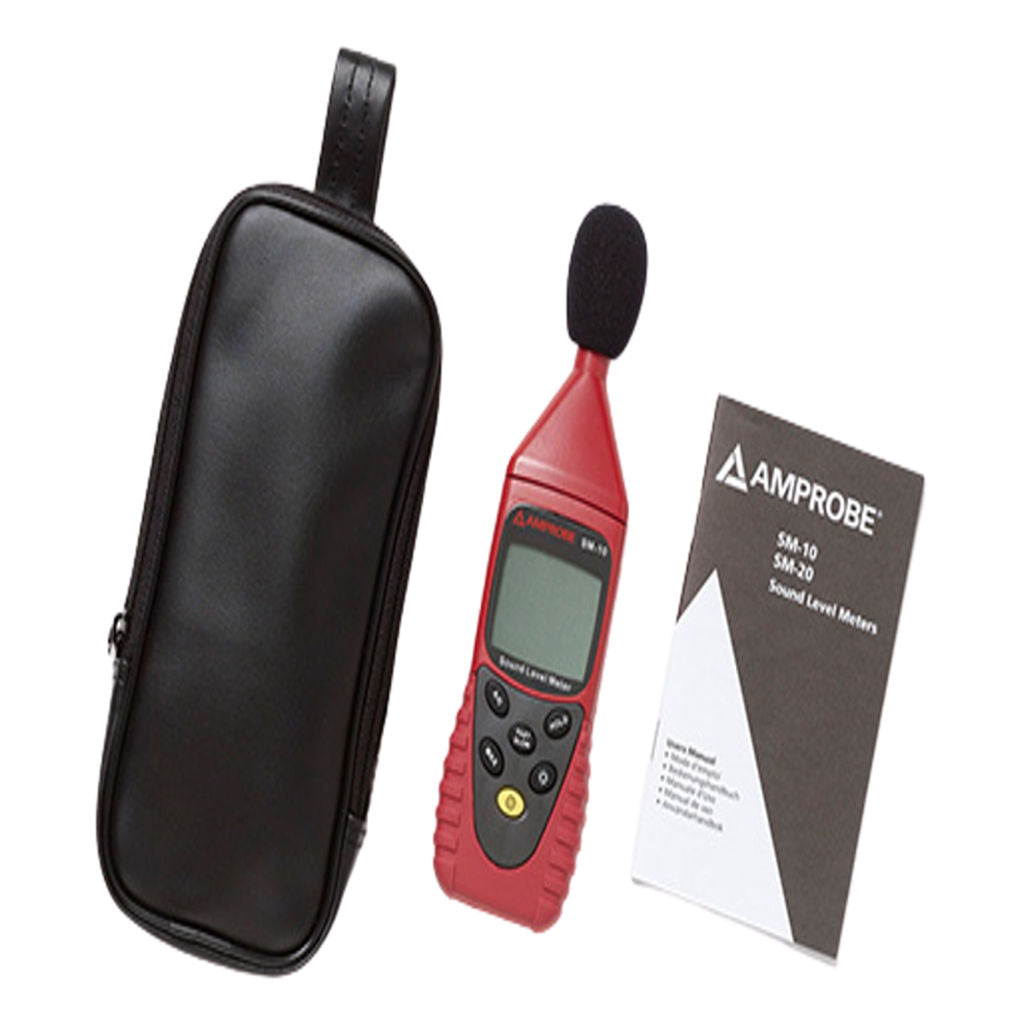

  • Accessories supplied: carrying case, user manual and 9 V battery (installed)

  • CE, designed to meet IEC651 type2, ANSI S1.4 type2

  • The Amprobe SM-10-A Sound Meter has been designed to check compliance with safety regulations and perform acoustic analysis by safety engineers, health, industrial and safety offices as well as quality control

  • They use two different weighting filters required by the IEC651 and ANSI S1.4 Type 2 for audio filtering

  • The A weighting is for general noise sound level and the C weighting is for measuring sound level of acoustic material control in various environments (ie 94 dB 1 kHz etc)

Product Specification

Brand

Amprobe

Product Type

Sound Meter

Product Model

SM-10

Model No

3052366

Microphone

1/2 Electret condenser microphone

Standard Applied

IEC 651 Type 2, ANSI 1.4 Type 2

Dynamic Range

50 dB

Time Weighting

FAST (125 mS), SLOW (1 sec)

Frequency Range

31.5 Hz → 8 kHz

Measuring Level Range

(Auto Range) A-Weighting: 30 dB → 130 dB
C-Weighting: 35 dB → 130 dB

Data

Data hold

Display

4 digits LCD

Power Supply

9V NEDA 1604, IEC 6F22, JIS 006P battery

Auto Power Off

Approx. 5 min

Environment

Indoor operation, < 2000 m

Standard Applied

IEC 651 Type 2, ANSI 1.4 Type 2

Resolution

0.1 dB, Display update: 0.5 sec.

Warranty

As Per Manufacturer Terms And Conditions


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Sound Level Meter

Manufacturer Details

‎Amprobe USA – Amprobe Everett, WA 98203 1-877-267-7623 info@amprobe.com

Packer Details

Mouser Electronics India PVT Ltd #9 Esquire Center Second Floor, A Wing, MG Road Bangalore 560001

Country of Origin

USA
