LAST SOLD AT ₹ 730.00
SKU # 1000078638

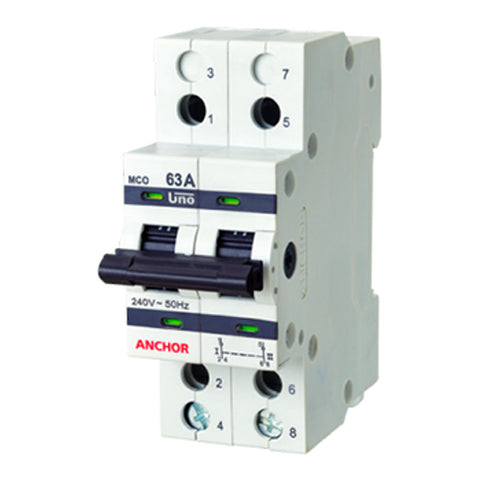

Anchor UNO MCB Changeover Switch 2 Poles
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
UNO MCB Changeover Switch is a manual operated changeover switch which finds its application in
-
switching load between two power supplies
-
UNO MCB Changeover switch finds wide applications in industries as well as in domestic area specially in Individual Bungalow(IB) for use in low voltage distribution circuits
-
Changeover switches are used to shift from one source of supply to another source and vice versa
-
They are switch disconnectors with independent manual operation, capable of making, carrying and breaking currents under normal circuit conditions
-
Which may include operating overload condition and carry under specified abnormal circuit conditions such as those of short circuit for a specified time
-
Features
-
Double break contact mechanism
-
Single frame for complete range
-
Three position indication (I-O-II) with Red and Green Indicators
-
Centre position OFF
-
Maximum terminal capacity of 35sq. mm
-
Easy snap on DIN Rail mounting
Product Specification
Brand |
Anchor |
Product Type |
MCB Changeover Switch |
Product Code | Current Rating(In) |
98081 | 25A 98082 | 32A 98083 | 40A 98084 | 63A |
Series |
UNO |
Reference Standard |
IS/IEC 60947-3 |
Poles |
DP |
Rated Voltage (Ue) |
240/ 415V~ AC |
Rated Frequency |
50Hz |
Rated Insulation Voltage |
660V |
Rated Impulse Voltage |
4kV |
Dielectric Strength |
2.5kV |
Utilisation Category |
AC22A |
Protection |
IP20 |
Ambient Temperature |
-5 to 50 ºC |
Mounting |
Clip on Din rail (35mm * 7.5mm) Vertical |
Warranty |
As Per Manufacturer Terms & Conditions |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Changeover Switch |
Manufacturer Details |
Panasonic Life Solutions India Pvt. Ltd. 3rd Floor, B Wing, i Think Techno Campus, Pokhran Road No-2, Thane (West), Thane - 400 607, Maharashtra, India. Phone : 022-42228888 |
Packer Details |
Panasonic Life Solutions India Pvt. Ltd. 3rd Floor, B Wing, i Think Techno Campus, Pokhran Road No-2, Thane (West), Thane - 400 607, Maharashtra, India. Phone : 022-42228888 |
Country of Origin |
Japan |
