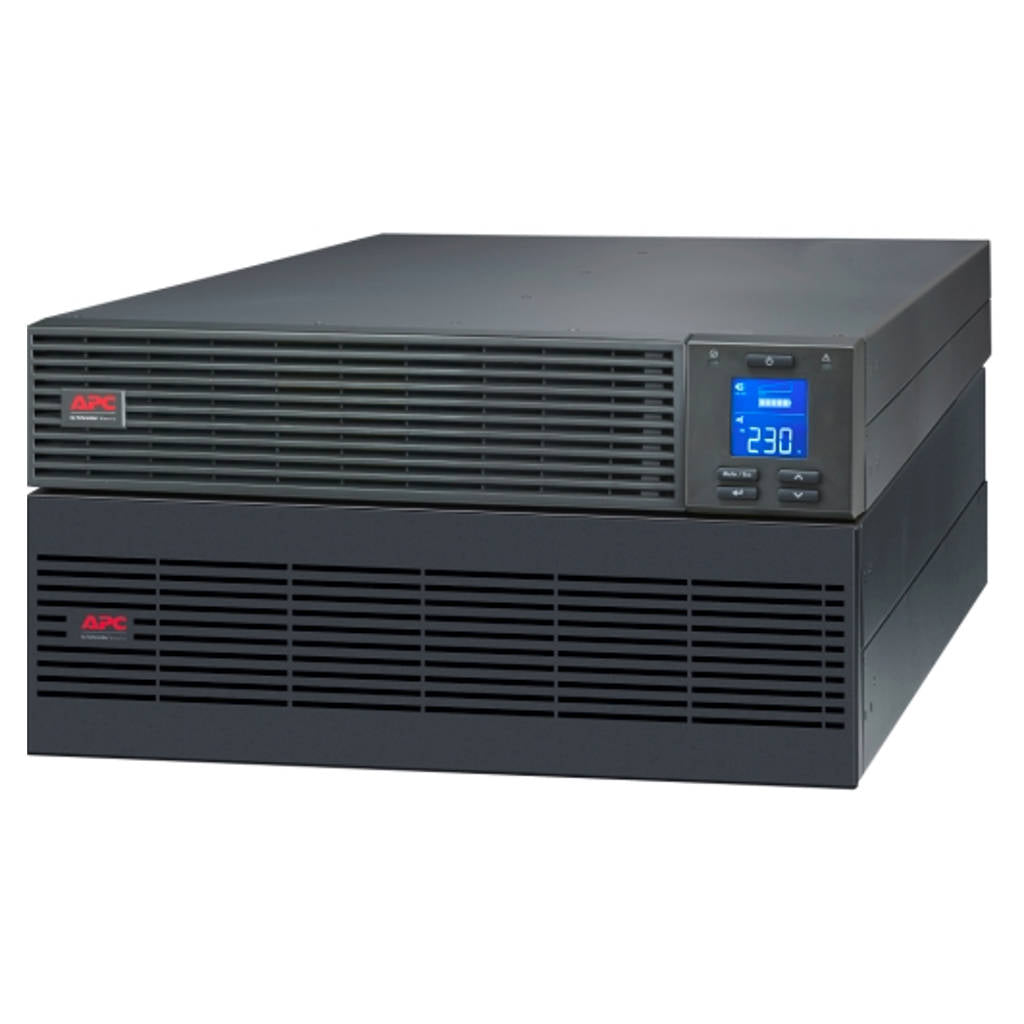

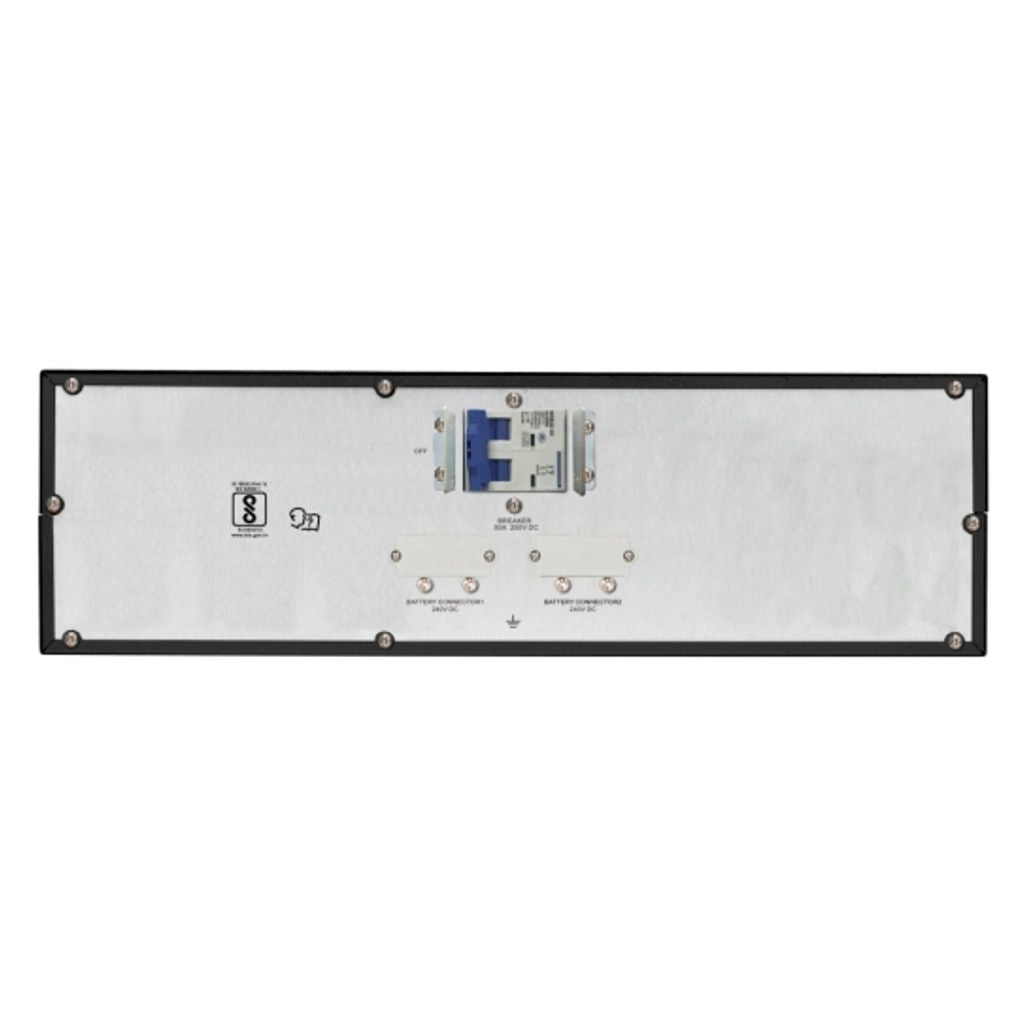

APC Easy UPS On-Line SRV 10000VA RT Extended Runtime Battery Pack 230V SRV10KRIL-IN

APC Easy UPS On-Line SRV 10000VA RT Extended Runtime Battery Pack 230V SRV10KRIL-IN


₹ 239,060.00

Quantity

Pack Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Automatic internal bypass

  • Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load

  • Automatic restart of loads after UPS shutdown

  • Automatically starts up the connected equipment upon the return of utility power

  • ECO Mode

  • Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

  • Intelligent battery management

  • Maximizes battery performance, life, and reliability through intelligent, precision charging

  • Intelligent Card Slot

  • Customize UPS capabilities with management cards

  • LCD graphics display

  • Text and mimic diagrams that display modes of operation, system parameters and alarms

  • Rack/Tower convertible

  • Protects the initial investment in the UPS when migrating from tower to rack-mount environment

  • Serial connection

  • Use your PC to access additional power protection and management features for your UPS via a serial port

  • USB connection

  • Use your PC to access additional power protection and management features for your UPS via a USB Port

  • Easy UPS On-Line Features & Benefits

  • Manageability

  • LED Indicators

  • Provide easy-to-read status of the unit and utility power conditions

  • LCD graphics display

  • Text and mimic diagrams that display modes of operation, system parameters and alarms

  • Intelligent Card Slot

  • Customize UPS capabilities with management cards

  • Serial connectivity

  • Provides management of the UPS via a serial port

  • Network manageable

  • Most models provide remote power management options of the UPS over the network

  • Many do not have NMC embedded

  • Serviceability

  • Disconnected battery notification

  • Warns when a battery is not available to provide backup power

  • Automatic self-test

  • Periodic battery self-test ensures early detection of a battery that needs to be replaced

  • Audible alarms

  • Provides notification of changing utility power and UPS power conditions

  • Predictive failure notification

  • Provides early-warning fault analysis ensuring proactive component replacement

  • Availability

  • Intelligent battery management

  • Maximizes battery performance, life, and reliability through intelligent, precision charging

  • Features

  • Double conversion on-line topology

  • Guarantees a consistently high level of power quality

  • Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process

  • The battery is only used as a back-up source

  • Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring

  • Management Software

  • Safety-agency approved

  • Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment

  • Pure sine wave output on battery

  • Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics

  • Management Software

  • Allows you to easily monitor your utility power and manage your UPS

  • Intuitive LCD interface

  • Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys

  • Input power factor correction

  • Minimizes installation costs by enabling the use of smaller generators and cabling

  • High efficiency

  • High efficiency rates that remain stable even at lower operating power levels

  • Generator compatible

  • Ensures clean, uninterrupted power to protected equipment when generator power is used

  • ECO Mode

  • Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Product Specification

Brand

APC

Product Type

UPS

Model

SRV10KRIL-IN

Output

Output Power Capacity

10.0kWatts / 10.0kVA

Max Configurable Power (Watts)

10.0kWatts / 10.0kVA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency At Full Load

94.0 %

Output Voltage Distortion

1 %

Output Frequency (Sync To Mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform Type

Sine wave

Output Connections

(1) Hard wire 3-wire (H N + E)

Bypass

Internal bypass (automatic and manual)

Input

Nominal Input Voltage

230V

Input Frequency

40 - 70 Hz Auto sensing

Input Connections

Hard wire 3-wire (1P + N + E)

Input Voltage Range For Main Operations

110 - 300 Adjustable (half load), 176 - 300V

Efficiency At Full Load

94.0 %

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery Type

Lead-acid battery

Included Battery Modules

1

Typical Recharge Time

9hour(s)

Nominal Battery Voltage

240 V

Battery Charge Power (Watts)

1.17kWatts

Communications & Management

Interface Port(S)

DB-9 RS-232, Intelligent Smart Slot, USB

Control Panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Yes

Surge Protection And Filtering

Surge Energy Rating

600Joules

Color

Black

Environmental

Operating Temperature

0 - 40 °C

Environmental

Operating Relative Humidity

0 - 95 (Non-condensing) %

Operating Elevation

0 - 3000meters

Storage Temperature

-20 - 60 °C

Storage Relative Humidity

0 - 95 (Non-condensing) %

Storage Elevation

0 - 15000meters

Audible Noise At 1 Meter From Surface Of Unit

50.0dBA

Online Thermal Dissipation

2128.0BTU/hr

Protection Class

IP20

Conformance

Approvals

BIS

Physical

Maximum Height

220MM,21.95CM

Maximum Width

438MM,43.8CM

Maximum Depth

612MM,61.2CM

Rack Height

5U

Net Weight

79.0KG

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

UPS

Manufacturer Details

APC Schneider Electric India Private, Ltd. Bearys Global Research Triangle Sy. No. 63/3B, Gorvigere Village, Bidarahalli Hobli, Bangalore East Taluk, Whitefield Hoskote Road Bangalore- 560115

Packer Details

APC Schneider Electric India Private, Ltd. Bearys Global Research Triangle Sy. No. 63/3B, Gorvigere Village, Bidarahalli Hobli, Bangalore East Taluk, Whitefield Hoskote Road Bangalore- 560115

Country of Origin

India
