LAST SOLD AT ₹ 960,350.00

SKU # 1000096946

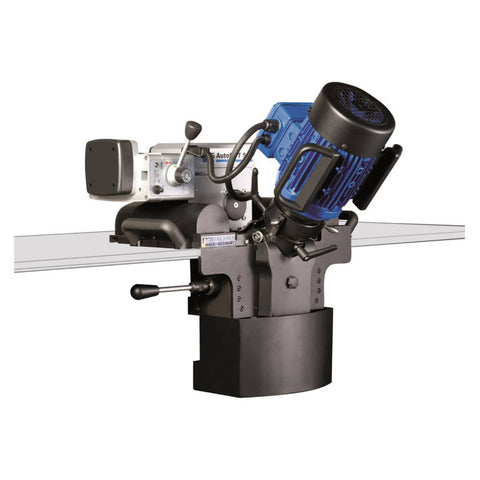

BDS AutoCUT 500 Fully Automatic Plate Bevelling Machine

BDS AutoCUT 500 Fully Automatic Plate Bevelling Machine

Visit the BDS Store
Mid-Year Value Sale

₹ 960,350.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • AutoCUT 500 Automatic Plate Beveling Machine for Weld Preparation: Simple And Secure Handling With Guide Rails On Both Sides

  • Fast And Easy Preparation Of Weld Seams

  • Continuously Adjustable Angle (15° To 60°) & Land Width Up To 1-3/16″ On Plate Up To 1.5″ Thick

  • Robust Design, Single Operator Control, And Easy Handling

  • Weld seam milling with automatic, seamlessly adjustable feed: quick, flexible and with a variable milling angle

  • The inlet/outlet rails make it exceptionally easy and safe to handle the AutoCUT 500

  • Simple, safe handling

  • No restriction of the working length

  • No guiding carriage is needed, therefore independent from the ground conditions

  • For milling plate thicknesses from 10 mm to 40 mm

  • Milling cutter with 6 carbide inserts

Product Specification

Brand

BDS

Product Type

Bevelling Machine

Model

AutoCUT 500

Motor Output

1100 Watt

Voltage

380 V

Speed Range 1

2750 min-1

Chamfer Width

max. 30 mm

Angle Adjustment

15°–60° seamless

Feed

Automatic and smoothly adjustable

Milling Cutter

Arbor milling cutter with 6 sintered carbide inserts

Cutter Type

ZFR 500

Speed

2750 rpm

Protection Type

IP 20

Includes

1 AutoCUT 500
1 Arbor milling cutter with six SHM 400 carbide inserts
1 Operating manual
1 inlet and 1 outlet rail
1 SW 22 spanner
1 SW5 screwdriver with T-handle
1 SW6, SW8 and SW10 offset screwdriver
1 TX 15 screwdriver

Dimensions (LxBxH)

600 × 500 × 540 mm

Weight

50 kg

Warranty

1 Year


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Bevelling Machines

Manufacturer Details

BDS Maschinen GmbH Martinstrasse 108 41063 - Mönchengladbach Germany

Packer Details

BDS Machines Pvt. Ltd. Plot 40, Surekha, Prithviraj Nagar, Gadia Vihar, Aurangabad, Maharashtra 431005

Country of Origin

Germany
