LAST SOLD AT ₹ 274,810.00
SKU # 1000096943

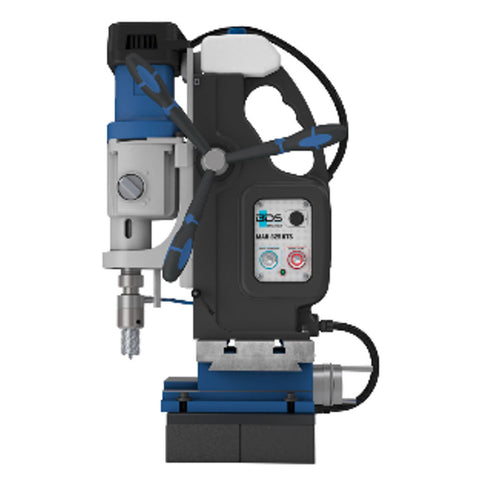

BDS ProfiSPECZIAL Series MAB 825 KTS Portable Drilling And Milling Machine

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Ideal for drilling & milling
-
Cross table base to move 110 mm in X and 120 mm in Y axis
-
Light milling up to Ø 13 mm (5/8'')
-
Reversible motor
-
Variable speed & torque control
Product Specification
|
Brand |
BDS |
|
Product Type |
Drilling and Milling Machine |
|
Model |
MAB 825 KTS |
|
Speciality |
Drilling+Milling |
|
Series |
ProfiSPECZIAL |
|
Core Drilling Diameter |
80 mm |
|
Cutting Depth |
110 mm |
|
Motor Output |
1800 Watt |
|
Speed |
4 Speed |
|
Morse Taper |
MT3 |
|
Voltage |
230 V AC, 50 – 60 Hz |
|
Stroke |
255 mm |
|
Industrial Arbor |
MT 3, 19 mm Weldon (3/4“) |
|
Industrial Arbor |
MT 3, 32 mm Weldon (1 1/4“) |
|
Gear 1 Range |
40-110 rpm |
|
Gear 2 Range |
65-175 rpm |
|
Gear 3 Range |
140-360 rpm |
|
Gear 4 Range |
220-600 rpm |
|
Permanent Internal Lubrication |
Yes |
|
Magnetic Indicator |
Yes |
|
Full Wave Control Electronics |
Yes |
|
Overheating Protection |
Yes |
|
Clockwise/Anticlockwise Rotation |
Yes |
|
Torque Control |
Yes |
|
Carbon Brush Wear Indicator |
Yes |
|
Safety Clutch |
Yes |
|
Includes |
1
Magnetic core drilling machine MAB 825 KTS 1 Allen Key size 5 + Size 6 1
Carry case on wheel |
|
Magnet Dimensions |
220 x 220 x 54 mm |
|
Weight |
57.5 Kg. |
|
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Magnetic Drilling Machine |
Manufacturer Details |
BDS Maschinen GmbH Martinstrasse 108 41063 - Mönchengladbach Germany |
Packer Details |
BDS Machines Pvt. Ltd. Plot 40, Surekha, Prithviraj Nagar, Gadia Vihar, Aurangabad, Maharashtra 431005 |
Country of Origin |
Germany |
