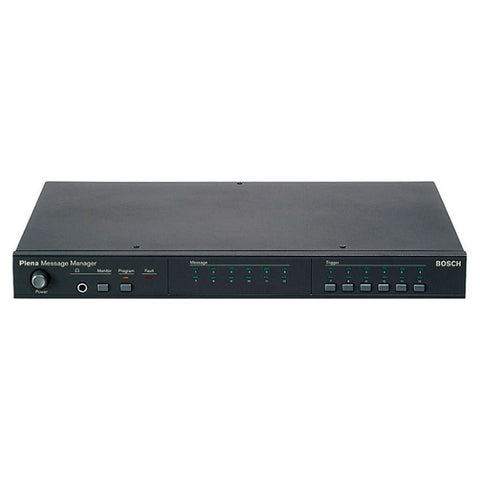

Bosch Plena Message Manager LBB1965/00
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Highly flexible stand-alone digital message player
-
Up to 12 messages and 12 trigger inputs
-
Downloads messages from a PC in WAV format
-
Compliant with standards for emergency sound systems
-
Zone control for Plena system preamplifier LBB 1925/10
-
The Plena message manager is a high performance,highly versatile stand-alone digital message player
-
Applications range from spot announcements in supermarkets and theme parks to warning and evacuation messages in emergency situations
-
Functions
-
Messages
-
Up to 12 messages can be stored in the internal 64Mbit EEPROM,without the need for data retention battery backup
-
Each message can have any length within the total available capacity
-
A PC uploads messages and configurations via RS-232 to the unit,which can then operate without a PC
-
The standard WAV format is used for messages with sample rates of 8 kHz to 24 kHz with 16-bit word length (linear PCM)
-
This gives up to 500 seconds of recording time with a CD-quality signal-to-noise ratio
-
The use of linear PCM instead of a compressed audio format,such as MP3,ADPCM and u-law/A-law,ensures high-quality playback of all types of audio signals,including sound effects and special tones,such as attention chimes
-
The unit has 12 contact closure trigger inputs for announcements
-
Each can be configured for a sequence of up to four messages from those available
-
In this way messages can be used in combination with other messages, optimizing flexibility and storage space usage
-
When used together with the six-zone LBB 1925/10 Plena System Pre- Amplifier,a zone selection can be configured for each trigger input
-
The message manager communicates this selection to the LBB 1925/10 via an RS-232 connection
-
Continuous activation of a trigger input causes the corresponding message sequence to repeat
-
Trigger Inputs
-
The trigger inputs have a serial priority,i.e., input 1 has priority over input 2, input 2 over input 3,etc
-
The high priority trigger inputs 1-6 are only accessible as contacts on the rear panel to prevent accidental use
-
The lower priority trigger inputs 7-12 are also available as trigger switches on the front panel
-
Integrity And Dependability
-
The LBB 1965/00 can also play emergency/evacuation messages,as it fulfills the IEC 60849 standard
-
The microcontroller continually checks the data integrity of the system,and a watchdog circuit,in turn,checks the microcontroller
-
The unit monitors the D/A converter with a pilot tone,and the high priority trigger inputs (one to six) for cable short circuits and breaks
-
A 24 V battery backup connection with automatic fail-safe provides continued operation if the mains power should fail
-
A 20 kHz pilot tone can be mixed with the output signal to supervise the link to the next amplifier
-
This also works for loudspeaker supervision in combination with 20 kHz detectors
-
Any failure causes a red LED fault indication,and activates a fault output contact
-
Loop-Through Facility
-
The LBB 1965/00 provides a loop-through facility with balanced XLR and unbalanced cinch inputs and outputs
-
This allows the unit to be inserted into an existing audio link
-
As long as no announcements are playing,the signal input is routed to the output
-
If an announcement begins,the input signal is interrupted and the announcement is routed to the output
-
Updating
-
Messages and configuration settings are uploaded from a PC
-
After uploading,the trigger inputs 7-12 can be configured by using the front panel switches,without the need for a new upload or even a PC
-
Message content can be monitored using the available headphone jack
Product Specification
| Brand | Bosch |
| Product Type | Message Manager |
| Product Model | LBB1965/00 |
| Mains Power Supply | |
| Voltage | 230/115 VAC, ±10%, 50/60 Hz |
| Inrush Current | 1.5 A at 230 VAC / 3 A at 115 VAC |
| Maximum Power Consumption | 50 VA |
| Battery Power Supply | |
| Voltage | 24 VDC, +15% / -15% |
| Current Maximum | 1 A |
| Performance | |
| Supported Sample Rates (fs) | 24 / 22.05 / 16 / 12 / 11.025 / 8 kHz |
| Frequency Response | |
| @ fs=24kHz | 00 Hz to 11 kHz (+1 / -3 dB) |
| @ fs=16kHz | 100 Hz to 7.3 kHz (+1 / -3 dB ) |
| @ fs=12kHz | 100 Hz to 5.5 kHz (+1 / -3 dB) |
| @ fs=11.025kHz | 100 Hz to 5 kHz (+1 / -3 dB) |
| @ fs=8kHz | 100 Hz to 3.6 kHz (+1 / -3 dB) |
| Distortion | <0.1% at 1 kHz |
| S/N (Flat At Maximum Volume) | >80 dB |
| Supervision DAC | 1 Hz pilot tone |
| Line Input | 1 x |
| Connector | 3-pin XLR, balanced |
| Sensitivity | 1 V |
| Impedance | 20 kohm |
| CMRR | >25 dB (50 Hz-to 20 kHz) |
| Line Input | 1 x |
| Connector | Cinch, unbalanced |
| Sensitivity | 1 V |
| Impedance | 20 kohm |
| Trigger Input | 6 x |
| Connector | Screw |
| Activation | Contact closure |
| Supervision Method | Cable loop resistance check |
| Line output | 1 x |
| Connector | 3-pin XLR, balanced |
| Nominal Level | 1 V, adjustable |
| Impedance | <100 ohm |
| Line Output | 1 x |
| Connector | Cinch, unbalanced |
| Nominal Level | 1 V, adjustable |
| Impedance | <100 ohm |
| Message Active Output | 1 x |
| Connector | Screw |
| Relay | 100 V, 2 A (voltage free, SPDT) |
| Fault Output | 1 x |
| Connector | Screw |
| Relay | 100 V, 2 A (voltage free, SPDT) |
| Interconnection | 1 x |
| Connector | 9-pin D-sub (RS-232) |
| PC Protocol | 115 kb/s, N, 8, 1, 0 (upload) |
| LBB 1925/10 Protocol | 19.2 kb/s, N, 8, 1, 0 (zone control) |
| Messages | |
| Data Format | WAV-file, 16-bit PCM, mono |
| Memory Capacity | 64 Mb EEPROM |
| Recording/Playback Time | 500 s @ fs=8 kHz |
| Number Of Messages | 12 (maximum) |
| Data Retention Time | >10 years |
| Environmental | |
| Operating Temperature | -10 ºC to +55 ºC (14 ºF to +131 ºF) |
| Storage Temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative Humidity | <95% |
| Mechanical | |
| Mounting | Stand-alone, 19” rack |
| Color | Charcoal |
| Dimensions (H x W x D) | 56 x 430 x 270 mm |
| Weight | Approx. 3 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (MM) – H x W x D | 56 x 430 x 270 |
| Unit of Measurement | 1 Piece |
| Weight | 3 kg |
| Generic Type | Message Manager |
| Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Country of Origin | India |
