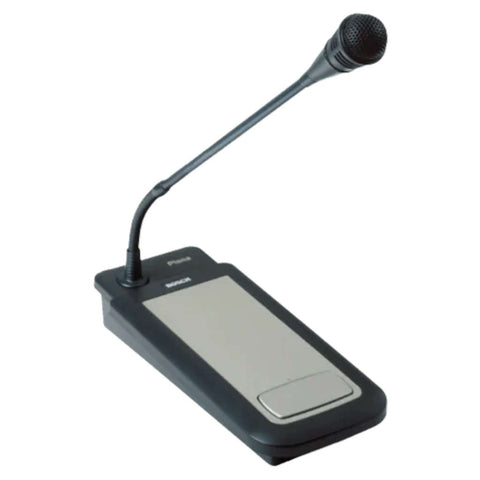

Bosch Plena Table-Top Microphone LBB1950/10
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Stylish tabletop unidirectional condenser microphone on a flexible stem
-
Phantom powered by amplifier
-
Momentary or toggle PTT-key for calls with priority contact
-
Green LED,indicating microphone active
-
Stable metal base design with fixed 2 m cable and lockable DIN connector
-
The Plena tabletop microphone is a stylish,high-quality tabletop unidirectional condenser microphone,mainly intended for making calls in a public address system
-
Its heavy metal base and rubber feet ensure stability on any flat surface
-
The special design also allows the unit to be neatly flush-mounted in desktops
-
Functions
-
The PTT-key (press-to-talk),not only switches on the microphone,but also provides priority contacts,that are compatible with the Plena range of amplifiers
-
The switching characteristic of the PTT-key can be configured internally for PTT-mode (on as long as pressed) or toggle-mode (press to switch on,press again to switch off)
-
The microphone is equipped with a fixed,flexible 2m cable and a 5-pin DIN connector for the balanced signal and the priority contacts
-
If the priority contacts are not required,the microphone can be connected to amplifiers with 3-pin XLR-inputs,using the DIN to XLR adapter
-
A green LED indicates when the microphone is active
-
Controls And Indicators
-
PTT-key
-
PTT status LED
Product Specification
| Brand | Bosch |
| Product Type | Table -Top Microphone |
| Product Model | LBB1950/10 |
| Power Supply | |
| Voltage Range | 12 to 48 V |
| Current Consumption | <8 mA |
| Performance | |
| Sensitivity | 0.7 mV @ 85 dB SPL (2 mV/Pa) |
| Maximum Input Sound Level | 110 dB SPL |
| Distortion | <0.6% (maximum input) |
| Input Noise Level (Equiv.) | 28 dB SPLA (S/N 66 dBA ref. 1 Pa) |
| Frequency Response | 100 Hz to 16 kHz |
| Output Impedance | 200 ohm |
| Environmental | |
| Operating Temperature | -10 ºC to +55 ºC (14 ºF to +131 ºF) |
| Storage Temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative Humidity | <95% |
| Mechanical | |
| Stem Length With Mic | 390 mm (15.35 in) |
| Cable Length | 2 m (6.56 ft) |
| Color | Charcoal with silver |
| Base Dimensions | 40 x 100 x 235 mm |
| Weight | Approx. 1 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (MM) - L x B x H | 40 x 100 x 235 |
| Unit of Measurement | 1 Piece |
| Weight | 1 kg |
| Generic Type | Table -Top Microphone |
| Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Country of Origin | India |
