Bosch Plena Two-Zone Call Station PLE-2CS
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Modern two-zone call station for the PLE series
-
Selectable gain
-
Speech filter and limiter
-
Output level control
-
Loop-through option for up to 8 call stations
-

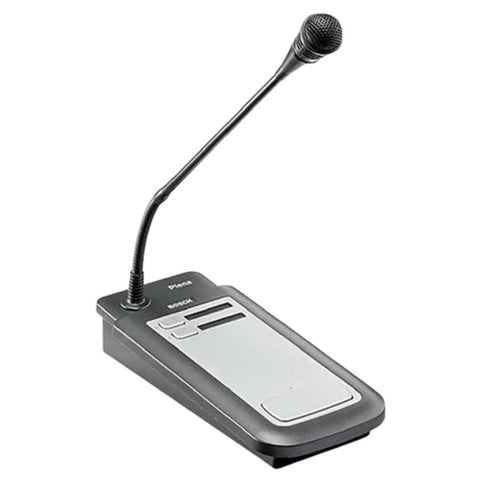

The Plena two-zone call station is a modern,high-quality call station with a stable metal base design,a flexible microphone stem and a unidirectional condenser microphone
-
It can make calls to selected zones in a public address system built with the PLE series two-zone mixer and mixer amplifiers
-
In addition to tabletop use,the Plena design allows neat flush-mounting in desktops
-
Functions
-
Gain,Speech Filter And Intelligibility
-
This call station features selectable gain,a selectable speech filter,and a limiter for improved intelligibility
-
Range
-
The call station has a balanced line level output,giving it a maximum range of 200 meters from the mixer,when using CAT-5 extension cables
-
Loop-Through
-
With the loop-through RJ-45 connector,it is possible to daisy chain multiple call stations
-
Priority
-
The priority is automatic i.e. the call station nearest the mixer has priority and can override a call station further from the mixer
-
When a call is being made by a higher priority call station,a yellow light will display on the lower priority call stations
-
Dip Switches And Status
-
DIP switches at the base of the call station select different microphone gain levels,chimes,and the speech filter
-
A service accessible rotary control provides microphone level attenuation
-
LEDs on the call station show which zones have been selected
-
An additional LED give visible feedback on the active state of the microphone and the system:
-
Green flashing means standby (chime is sounding)
-
Green indicates microphone active
-
Amber indicates a higher priority call
Controls And Indicators -
2 x status LEDs
-
PTT key
-
2 x zone selection keys
-
2 x zone selection LEDs
-
DIP switches
-
Rotary volume control
-
Interconnections
-
2 x RJ45 jacks
Product Specification
| Brand | Bosch |
| Product Type | Call Station |
| Product Model | PLE-2CS |
| Electrical | |
| Voltage Range | 24 VDC supplied by PLE mixer amplifier or mixer |
| Current Consumption | <30 mA |
| Performance | |
| Nominal Sensitivity | 85 dB SPL (gain preset 0 dB) |
| Nominal Output Level | 700 mV |
| Input Sound Level (Maximum) | 110 dB SPL |
| Gain Preset | -15 / 0 / +6 dB |
| Limiter Threshold | 2 V |
| Compression Ratio Limiter | 1:20 |
| Distortion | <0.6% (maximum input) |
| Input Noise Level (Equiv.) | 25 dB SPLA |
| Frequency Response | 100 Hz to 16 kHz |
| Speech Filter | -3 dB at 315 Hz,high-pass,6 dB/oct |
| Output Impedance | 200 ohm |
| Selections | |
| Chimes | 6 |
| Environmental | |
| Operating Temperature | -10 ºC to +45 ºC (14 ºF to +113 ºF) |
| Storage Temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative Humidity | <95% |
| Mechanical | |
| Mounting | Standalone |
| Cable Length | 5 m (16.4 ft) |
| Stem Length With Microphone | 390 mm (15.35 in) |
| Color | Charcoal with silver |
| Base Dimensions (H x W x D) Without Microphone | 40 x 100 x 235 mm (1.57 x 3.97 x 9.25 in) |
| Weight | Approx. 1 kg (2.2 lb) |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (MM) – H x W x D | 40 x 100 x 235 |
| Unit of Measurement | 1 Piece |
| Weight | 1 kg |
| Generic Type | Call Station |
| Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Country of Origin | India |
