LAST SOLD AT ₹ 176,230.00
SKU # 1000122262

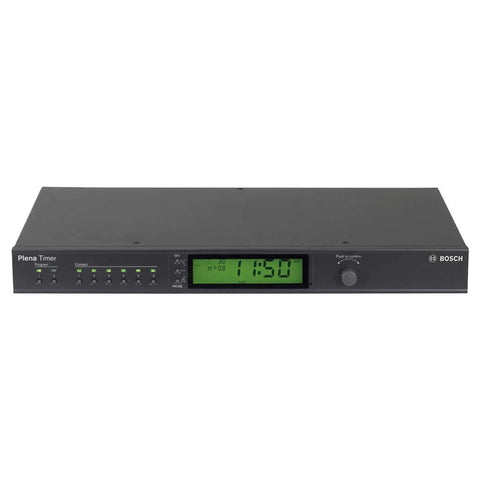

Bosch Plena Weekly Timer PLN-6TMW
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The Plena Weekly Timer is an accurate timer for use in public address systems
-
It is ideally suited for schools,shopping malls and all other venues that need regularly timed messages,signals or other controls
-
It is ideally suited for connection to the Plena Message Manager and Voice Alarm System
-
Two weekly programs
-
14 Chimes
-
Six contact outputs
-
Automatic daylight/standard time
-
BGM level control
-
Functions
-
The unit has two weekly schedules as well as a pause mode,where all actions except the clock display are suspended
-
Events can be programmed with an accuracy of one minute
-
There is no limit to the number of events,every minute may have an event associated with it
-
Each day can have a separate event set,and two schedules can be programmed
-
The schedule can be selected via the front panel
-
Each event can trigger:
-
A chime
-
Any combination of output contacts
-
BGM volume change
-
The timer can broadcast 14 different chimes via the audio throughput
-
It has six programmable output contacts with relays to connect to other equipment
-
Programmed contact events can open or close the contact or generate a pulse of a configurable duration
-
The contacts can also be controlled via buttons on the front panel
-
The unit has an audio input and output to attenuate BGM signals
-
The volume can be controlled directly from the front panel,or programmed to change level at fixed times,for example,to automatically attenuate music in the morning or evening hours
-
It can automatically revert to the programmed level at the next event
-
The timer has a clock sync input to synchronize the time with an external source but can also take the correct time from a PC
-
This way it can synchronize with a time server
-
The timer clock also keeps track of the date,ensuring correct weekday display and automatic daylight/standard time setting
-
(According to European, North American, user defined dates or off)
-
The timer has a 24 V backup power input with reverse-polarity protection as well as a back up battery that preserves the correct clock setting
-
Synchronization and programming is done via the USB port
-
Programming can also be performed via the front panel
-
An RS-232 connector is available to connect to a large separate display
Product Specification
| Brand | Bosch |
| Product Type | Timer |
| Product Model | PLN-6TMW |
| Mains Power Supply | |
| Voltage | 230/115VAC, ±15%, 50/60 Hz |
| Maximum Power Consumption | 30 W |
| Battery Power Supply | |
| Voltage | 24 VDC, +15% / -15% |
| Current Maximum | 1 A |
| Performance | |
| Frequency Response | 20 Hz to 20 kHz (-3 dB) |
| Total Harmonic Distortion | < 0.01 % (1kHz) |
| S/N | <85 dB |
| Dynamic Range | >100 dB |
| Line Input | 1 x |
| Connector | XLR balanced |
| Sensitivity | 1 V |
| Impedance | >5 kohm |
| Headroom | >25 dB |
| Line Output | 1 x |
| Connector | XLR balanced |
| Impedance | >100 ohm |
| Clock | |
| Accuracy (Without Sync) | 25 ºC: better than <2 s/month |
| Sync Input | NO, contact closure synchronizes to the nearest hour |
| Output Contacts | |
| Connector | MC 1,5/6-ST-3,5 |
| Rating | 100 V, 1 A, voltage free |
| Environmental | |
| Operating Temperature | -10 ºC to +55 ºC (14 ºF to +131 ºF) |
| Storage Temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative Humidity | <95% |
| Mechanical | |
| Mounting | Stand-alone, 19” rack |
| Color | Charcoal with silver |
| Dimensions (H x W x D) | 48 x 440 x 312 mm |
| Weight | Approx. 3 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (MM) – H x W x D | 44 x 483 x 312 |
| Unit of Measurement | 1 Piece |
| Weight | 3 kg |
| Generic Type | Timers |
| Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Country of Origin | India |
