SKU # 1000139350

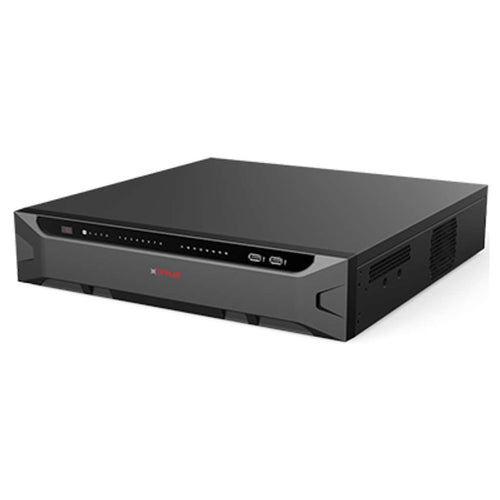

CP Plus 64 Channel Network Video Recorder Without HDD CP-UNR-4K564R8-FI
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Up to 64 Channel IP camera input
-
Max. 384 Mbps incoming/recording/outgoing bandwidth
-
Instastream, H.265, H.264+, H.264, MJPEG codec decoding
-
AI by Recorder: 2 Channel face detection and recognition, up to 20 face databases and 20,000 face images, 4 Channel perimeter protection, 8 Channel SMD Plus
-
AI by Camera: Face detection and recognition, Perimeter protection, SMD Plus, Metadata, ANPR, Stereo analysis, Heat map, People counting
-
Support 8 SATA HDDs up to 20TB Each, 4 USB Ports (2 front USB 2.0 ports, 2 rear USB 3.0 ports)
-
Support RAID 0/1/5/6/10
-
Support N+M cluster
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro Lite
-
Functions
-
Face Detection
-
With the help of the deep learning algorithm that is used in this technology, people can easily be detected, tracked, recorded, and captured
-
It takes only a second to detect one human face
-
Face detection is useful in cameras to help with auto-focus
-
This technology is mainly used to identify the presence of a human face
-
Instastream
-
This camera has been designed with the latest and most efficient innovation among the standard video compression designs
-
Smart encoding algorithms developed by CP Plus help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs
-
It enhances video coding efficiency while providing high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame
-
Smart Motion Detection (SMD Plus)
-
CP Plus has introduced Smart Motion Detection, AI-based SMD, which use an advanced algorithm to differentiate human and vehicular shapes within a scene and send alarms only when a person or vehicle is detected
-
gCMOB/ iCMOB
-
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
-
KVMS Pro Lite
-
The KVMS Pro Lite is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is released with the surveillance hardware and exclusively supports CP PLUS devices
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
NVR |
|
Product Model |
CP-UNR-4K564R8-FI |
|
Processor |
Industrial-grade processor |
|
Operating System |
Embedded Linux |
|
IP Camera Input |
64 Channel |
|
User Interface |
Web, Local GUI |
|
Video Output |
2 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 2 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 |
|
Video Compression |
Instastream, H.265, H.264+, H.264, MJPEG |
|
Decoding Capability |
AI disabled: 2 Channel 32 MP@25 fps, 2 Channel 24 MP@25 fps, 4 Channel 16 MP@30 fps, 5 Channel 12 MP@30 fps, 8 Channel 8 MP@30 fps, 10 Channel 6 MP@30 fps, 12 Channel 5 MP@30 fps, 16 Channel 4 MP@30 fps, 32 Channel 1080p@30 fps AI enabled: 1 Channel 32 MP@25 fps, 1 Channel 24 MP@25 fps, 2 Channel 16 MP@30 fps, 4 Channel 12 MP@30 fps, 6 Channel 8 MP@30 fps, 8 Channel 6 MP@30 fps, 8 Channel 5 MP@30 fps, 12 Channel 4 MP@30 fps, 24 Channel 1080p@30 fps |
|
AI By NVR |
Face detection, Face recognition, Perimeter protection, SMD Plus |
|
AI By Camera |
Face detection, Face recognition, Video metadata (Human, Motor vehicles, Non-motor vehicles), Perimeter protection, SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map |
|
IntelliCheck AI By Camera + Recorder |
Max. 32 Channel, 1 combined event per Channel/s |
|
Resolution |
32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 2 MP, 720p, 960p, D1, CIF, QCIF |
|
Network Bandwidth |
AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
|
Video Display Split |
Main screen: 1/4/8/9/16/25/36/64, Sub screen: 1/4/8/9/16 |
|
Perimeter Performance AI By NVR (Number Of Channels) |
4 Channels, 10 IVS rules for each Channel |
|
Perimeter Performance Of AI By Camera (Number Of Channels) |
All channels (16 targets/s) |
|
Face Attributes |
Gender, Age group, Glasses, Expressions, Face mask, Beard |
|
Face Detection Performance Of AI By Recorder (Number Of Channels) |
2 Channels (up to 12 face images/s each Channel) |
|
Face Detection Performance Of AI By Camera (Number Of Channels) |
16 channels |
|
Face Database Capacity |
Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image |
|
Face Recognition Performance Of AI By NVR (Number Of Channels) |
1. 16 Channel FD (by camera) + FR (by NVR), image stream: 16 face images/s 2. 2 Channel FD (by NVR) + FR (by NVR), video stream: 12 face images/s |
|
Face Recognition Performance Of AI By Camera (Number Of Channels) |
16 channels |
|
SMD Plus By NVR |
8 Channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
|
SMD Plus By Camera |
All Channels (32 targets/s) |
|
Metadata Performance Of AI By Camera (Number Of Channels) |
8 Channels |
|
Human Attributes |
Top color, Top type, Bottom color, Bottom type, Hat, Bag, Age, Gender and Umbrella |
|
Motor Vehicle Attributes |
License plate, Plate color, Vehicle body, Vehicle model, Vehicle logo, Calling, Seatbelt, Vehicle Interior, Vehicle registration location |
|
Non-Motor Vehicle Attributes |
Vehicle model, Vehicle color, Number of persons, Helmet |
|
ANPR By Camera (Number Of Channels) |
All Channels (8 Targets/s) |
|
License Plate Database Capacity |
1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist |
|
Abnormality Alarm |
Camera offline, storage error, disk full, IP conflict, MAC conflict, login lock, abnormal behaviour of fan, cyber security exceptio |
|
Intelligent Alarm |
Face detection, Perimeter protection, Face recognition, Video metadata (Human, Motor vehicles, non-motor vehicles), SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map |
|
General Alarm |
Motion detection, local alarm, alarm box, camera external alarm, network alarm, scene changing, PIR alarm, thermal alarm |
|
Alarm Linkage |
Record, snapshot (panoramic), local alarm output, IPC external alarm output, access control- ler, audio, buzzer, log, preset, email |
|
Audio Input |
1 Channel RCA |
|
Audio Output |
2 Channel RCA |
|
Audio Compression |
G.711a, G.711u, PCM, G726, AAC |
|
Disk Group |
Support |
|
Alarm Input |
16 Channel |
|
Alarm Output |
8 Channels (1-channel 12 V 1 A output) |
|
Hard Disk |
8 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature |
|
Multi-Channel Playback |
Up to 16 Channels |
|
Record Mode |
General, Motion detection, Intelligent, Alarm, POS |
|
Backup Method |
USB device and network |
|
Playback Mode |
Instant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection) |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
RAID |
RAID 0/1/5/6/10 |
|
Interface Ports |
4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports), 1 eSATA Port, 1 RS232, 2 RS485 (1 port for half- duplex serial communication, 1 port for full-duplex serial communication) |
|
Protocols |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, Multicast, InstaOn, Auto Registration, iSCSI, ONVIF 22.06 (Profile T, Profile S, Profile G), CGI, SDK |
|
Network Mode |
Multi-address mode, load balance, fault tolerance and other network port binding modes |
|
Ethernet |
2 (10/100/1000 Mbps Ethernet port, RJ-45) |
|
Browser |
Chrome, IE, Safari, Edge, Firefox |
|
Power Supply |
100–240 VAC, 50-60 Hz |
|
Power Consumption |
Total output of NVR is ≤ 13 W (without HDD) |
|
Operating Temperature |
–10 °C to +55 °C (14 °F to +131 °F) |
|
Operating Humidity |
10%–93% (RH), non-condensing |
|
Storage Temperature |
-20 °C to +60 °C (–4 °F to +140 °F) |
|
Dimension |
439.9 × 457.9 × 89 mm |
|
Weight |
6.40 kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
43.9 x 45.7 x 8.9 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
6.5 kg |
|
Generic Name |
64 Channel NVR |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
