Out of Stock!
SKU # 1000102848

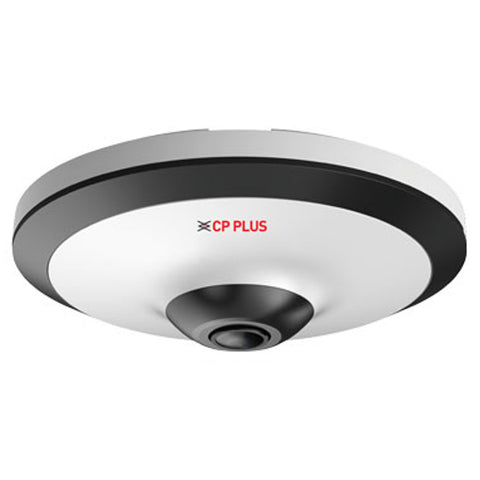

CP Plus Full HD Panoramic Network IR Fisheye Camera 5MP 10Mtr CP-UNC-EE51L1C-VMD
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
1/2.7” 5MP progressive scan CMOS Image Sensor(0.9407cm)
-
H.265+ and H.264+ triple-stream encoding
-
Maximum 25fps@5MP(2592×1944)
-
WDR(120dB), Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
-
1.4mm fixed lens
-
Built-in Mic, Micro SD Card, PoE
-
IR Range of 10 Mtr.
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
| Brand | CP Plus |
| Product Type | Fisheye Camera |
| Product Model | CP-UNC-EE51L1C-VMD |
| Image Sensor | 1/2.7” 5MP progressive scan CMOS Image Sensor(0.9407cm) |
| Minimum Illumination | 0.006 Lux@F2.0(Color, 30IRE) 0.0006 Lux@F2.0(B/W, 30IRE) 0 Lux(IR on) |
| Effective Pixels | 2592(H) x 1944(V) |
| Bodytype | Fisheye |
| Shutter Speed | Auto/Manual, 1/3~1/100000s |
| S/N Ratio | >56dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Lens | 1.4mm |
| Maximum Aperture | F2.0 |
| Gain Control(AGC) | Auto/Manual |
| Lens Type | Fixed-focal |
| Video Compression | H.265+/H.265/H.264+/H.264/H.264H/MJPEG(Sub Stream) |
| Angle Of View | H: 180°, V: 180°, D: 180° |
| Back Light Computer | BLC / HLC / WDR(120dB) |
| Video Streaming | Main stream(2592 × 1944 @1–25/30 fps) sub stream(704 × 576 @1–25 fps/704 × 480@1–30 fps) third stream(1280 × 720 @1–25/30 fps) |
| Digital Zoom | 16x |
| Resolution | 5MP(2592 × 1944); 3MP(2048 × 1536); UXGA(1600 × 1200); 1.3M(1280 × 960); 720P(1280 × 720); D1(704 × 576/704 × 480); VGA(640 × 480); CIF(352 × 288/352 × 240) |
| Motion Detection | Off / On(4 Zone, Rectangle) |
| DORI Distance | 28m(Detect) 11.2m(Observe) 5.6m(Recognize) 2.8m(Identify) |
| Privacy Mask | Off / On(4 Area, Rectangle) |
| ICR | Auto(ICR) / Color / B/W |
| ROI | Off / On(4 Zone) |
| Audio | Built-in Mic |
| Bit Rate | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Audio Compression | PCM; G.711a; G.711Mu; G726 |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; ONVIF(Profile S/Profile G/Profile T); CGI; Milestone; Genetec; InstaOn |
| Audio Input | 1 Ch. |
| Smart Detection | Tripwire , Intrusion, Heat map |
| Audio Output | 1 Ch. |
| Ethernet | RJ-45(10/100Base-T) |
| Alarm In | 1 channel in: 5mA 3V–5V DC |
| User Account | 20(Total bandwidth: 64 M) |
| Alarm Out | 1 channel Out: 300mA 12VDC |
| Smart Phone | iPhone, iPad, Android Phone |
| Micro SD | FTP; SFTP; Micro SD card(support max. 256 G); NAS |
| IR | IR Range of 10 Mtr., Smart IR |
| People Counting | Support people counting in area, and displaying and outputting yearly/monthly/daily reports(matching devices are needed); support people counting in 4 areas |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| SDK And API | Yes |
| Alarm Event | No SD card; SD card full; SD card error; service life warning(supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception |
| Casing | Metal +Plastic |
| Storage Temperature | -40°C to +60°C(–40°F to +140°F) |
| Operating Temperature | -10° C ~ +50° C(14° F ~ +122° F) / Less than 95% RH |
| Power Source | DC12V, PoE(802.3af) |
| Power Consumption | Basic power consumption: 3.6W(12V DC); 4.4W(PoE) Maximum power consumption(H.265 + IR on+ intelligent function + WDR): 7.3W(12V DC); 8.8 |
| Dimension | 44.6 mm × Φ126.2 mm |
| Weight | 299g |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Network Camera |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
