SKU # 1000138782

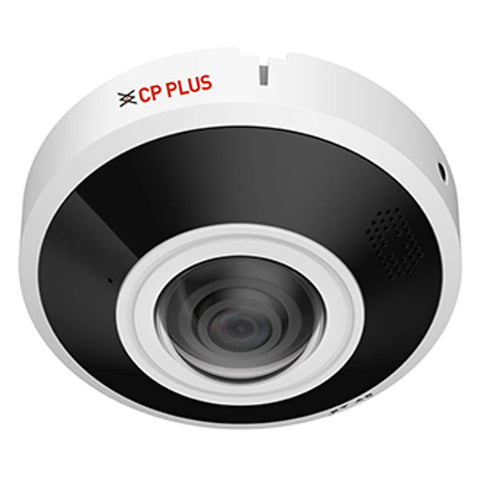

CP Plus Network IR Fisheye Camera 6MP CP-UNC-EE61L2C-VMD-Q
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
1/2.5” 6MP PS CMOS Image Sensor (1.016 centimeters)
-
Max. 6MP (2560 × 2560)@1–25/30 fps
-
1.68 mm Fixed-focal Lens
-
Instastream, H.265, H.264, H.264H, MJPEG
-
Support Triple Stream
-
WDR (120 dB), Day/Night (ICR), 2D ND & 3D NR, AWB, AGC, BLC, HLC
-
Support Built-in Mic
-
Support Micro SD Card, IP67, IK10, PoE
Product Specification
| Brand | CP Plus |
| Product Type | Fisheye Camera |
| Product Model | CP-UNC-EE61L2C-VMD-Q |
| Image Sensor | 1/2.5” 6MP PS CMOS Image Sensor (1.016 centimeters) |
| Minimum Illumination | 0.001 lux@F1.8 (Color, 30 IRE), 0.0001 lux@F1.8 (B/W, 30 IRE), 0 lux (IR on) |
| Effective Pixels | 2560 (H) × 2560 (V) |
| Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| RAM | 1 GB |
| ROM | 4 GB |
| White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
| Lens | 1.68 mm |
| Gain Control (AGC) | Auto/Manual |
| Lens Type | Fixed-focal |
| Iris Control | Fixed |
| Max Aperture | F1.8 |
| Lens Mount | M12 |
| Close Focus Distance | 0.3 m |
| IR Control | Auto/Manual |
| DORI Distance | 33.6m (Detect), 13.4m (Observe), 6.7 m (Recognize), 3.4 m (Identify) |
| Back Light Comp | BLC/ HLC/ WDR(120dB)/ISA |
| Angle of View | H: 185°, V: 185°, D: 185° |
| Stream Capability | Triple Stream |
| Resolution | 6MP (2560 × 2560), 4MP (2048 × 2048), 2MP (1440 × 1440), 1.6MP (1280 × 1280), 1MP (1024 × 1024), (720 × 720), SVCD (480 × 480) |
| Noise Reduction | 2D NR & 3D NR |
| IR | IR Range of 20 Mtr. |
| IR Number | 3 IR LED |
| Bit Rate Control | VBR/CBR/ABR |
| Bit Rate | H.265: 3 kbps–16384 kbps , H.264: 3 kbps–16384 kbps |
| Video Format | PAL/NTSC |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream) |
| Image Rotation | 0°/180° |
| Smart Compression | AI Instastream, AI H.264 |
| Mirror Function | Support |
| Privacy Mask | 8 areas |
| Day/Night | Auto(ICR)/Color/B/W |
| Intelligent Scene Adaption (ISA) | AI ISA |
| OSD | Camera title, Date & Time |
| Protocol | SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
| IVS (Optional) | Tripwire, Intrusion |
| Intelligent Scene Adaption (ISA) | Support |
| Display Mode | Front-dewarp (hardware decoding): 1O, 1P, 2P, 1R, 2R, 4R, 1O+ 3R 2P/2R: Supports split screen for 2 windows. 4R: Supports split screen for 4 windows |
| Heat Map | Support |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 2 Channel (RCA port) |
| Audio Output | 2 Channel (RCA port) |
| Audio Compression | PCM, G.711a, G.711Mu, G.726, G.723, AAC |
| Ethernet | RJ-45 (10/100 Base-T) |
| Alarm IN | 1 Channel in: 5mA 3V–5 VDC |
| Alarm Out | 1 Channel out: 300 mA 12 VDC |
| Weatherproof Standard | IP67, IK10 |
| Storage | SFTP, NAS, Mirco SD card (Max. 512GB) |
| User/Host | 20 users |
| Browser | Microsoft, Edge and Chrome |
| Certificates | ISO9001, CE, FCC and RoHS |
| Power Source | 12 VDC, 1 A, PoE (802.3af) |
| Power Consumption | Basic: 1.4 W (12 VDC), 2.6 W (PoE), Max.: 8.1 W (12 VDC), 10.1 W (PoE) (ICR switch + IR intensity) |
| Operating Temperature | –30 °C to +60 °C (–22°F to +140 °F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140°F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Casing | Metal |
| Dimensions | 122 mm × 53.3 mm |
| Weight | 460g |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 12.2 x 5.33 x 12.2 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.460 kg |
| Generic Type | Network Camera |
| Manufacturer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Packer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Country Of Origin | India |
