SKU # 1000102852

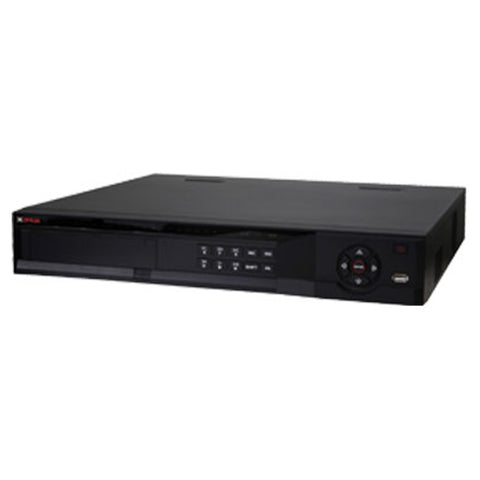

CP Plus Network Video Recorder Without HDD 4K 64 Channel CP-UNR-4K5644-V2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Up to 64 channel IP camera input
-
Maximum 320Mbps incoming bandwidth
-
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
-
Up to 12MP resolution preview and playback
-
Support 4 SATA HDDs up to 10TB Each, 3 USB Ports (2 USB 3.0, 1 USB 2.0)
-
2 HDMI / 2 VGA simultaneous video output
-
Support Multi-brand network cameras
-
ONVIF Version 2.4 conformance
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
|
Brand |
CP Plus |
|
Product Type |
NVR |
|
Product Model |
CP-UNR-4K5644-V2 |
|
Processor |
Quad-core embedded processor |
|
Operating System |
Embedded LINUX |
|
Two-Way Talk |
1 Channel Input, 2 Channel Output, RCA |
|
User Interface |
GUI |
|
Video Output |
2 HDMI, 2 VGA |
|
Video Resolution |
HDMI1: 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 VGA1: 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 ; HDMI2/VGA2: 1920 × 1080 |
|
Video Recording |
Maximum 320Mbps |
|
Video Display Split |
1st screen: 1/4/8/9/16/25/36/64 , 2nd screen: 1/4/8/9/16 |
|
Channel |
32 channel |
|
Motion Detection |
MD Zones: 396(22×18) |
|
Video Loss |
supports |
|
Bandwidth Incoming |
320Mbps |
|
Alarm Input |
16 Channel |
|
Alarm Output |
6 Channel |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Hard Disk |
4 SATA III ports, up to 10TB Each, 1 eSATA port |
|
Trigger Events |
Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|
Recording Mode |
Manual, Schedule (Regular, MD (Motion Detection) , Alarm, IVS), Stop |
|
Search Mode |
Time /Date, Alarm, MD and Exact Search (accurate to second) |
|
Backup Mode |
USB Device/Network/eSATA Device |
|
Playback |
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
|
Maximum User Account |
128 users |
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
Ethernet |
2 RJ-45 Ports (10/100/1000Mbps) Independent or Joint Working |
|
Interface Ports |
3 USB Ports (2 Rear USB 3.0, 1 Front USB 2.0), 1 RS232, 1 RS485 |
|
Protocols |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search , ONVIF 2.4, SDK, CGI |
|
Power Supply |
Single, AC 100~240V, 50/60 Hz |
|
Power Consumption |
<16.7W (without HDD) |
|
Working Temperature |
-10 ~+55°C / 10~90%RH / 86~106kpa |
|
Dimension |
440mm x 411.2mm x 76mm |
|
Weight |
4.3kg (without HDD) |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
64 Channel NVR |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
