Available!
SKU # 1000140486

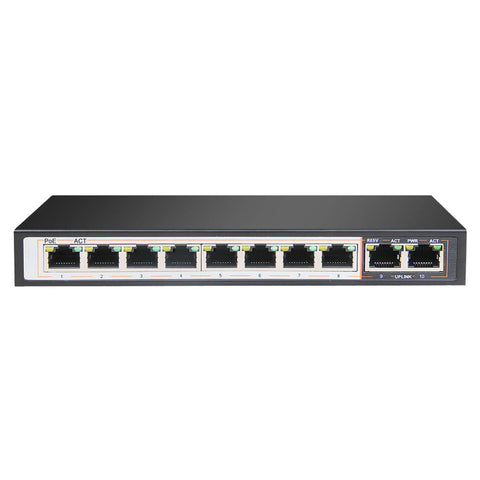

D-Link 10 Port Giga PoE Network Switch DGS-F1010P-E
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
High-Speed Networking
-
8 10/100/1000 Mbps Ethernet ports
-
Full/half-duplex for Ethernet/Fast Ethernet/Gigabit
-
2 GE Uplink
-
Functions
-
VLAN
-
EXTEND
-
PoE
-
QoS
-
Easy Setup
-
Plug-and-play installation
-
Auto MDI/MDI-X crossover on all ports
-
PoE Functionality
-
8 PoE ports
-
IEEE 802.3af/at compliant
-
120W total power budget
-
Up to 30 W power output per PoE port
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
D-Link |
|
Product Type |
Network Switch |
|
Product Model |
DGS-F1010P-E |
|
General |
|
|
Size |
Desktop (with Mounting Kit) |
|
Interfaces |
8 10/100/1000 BASE-T ports 2 GE Uplink |
|
Standards |
IEEE 802.3u, Fast Ethernet standards IEEE 802.3af/at, Ethernet power supply POE standard IEEE 802.3ab, Gigabit Ethernet standards IEEE 802.3az, EEE, Energy efficient Ethernet standard IEEE 802.3x, Full-duplex Ethernet data link layers IEEE 802.3z, Gigabit Ethernet fiber-optic standard |
|
Media Interface Exchange |
Auto MDI/MDI-X adjustment on all ports |
|
Lighting Protection |
6KV |
|
Performance |
|
|
Switching Fabric |
20 Gbps |
|
Transmission Method |
Adopt Store-and-forward |
|
Data Transfer Rates |
Gigabit Ethernet 1000 Mbps Ethernet 100 Mbps |
|
Packet Filtering / Forwarding Rates |
10M port maximum 14800pps 100M port maximum 148800pps 1000M port maximum 1488000pps |
|
PoE |
|
|
PoE Standards |
IEEE 802.3af IEEE 802.3at |
|
PoE-Capable Ports |
Port 1 - 8 (Port 1 - 8 PoE can support up to 250m @ 10Mbps with Extend enabled) |
|
Power Budget |
120W (30 W max. per PoE port) |
|
LEDs |
|
|
Power |
Yes |
|
Link/Activity |
Yes |
|
Certification |
|
|
EMI/EMC |
CE |
|
Physical |
|
|
Power |
120 W |
|
Temperature |
Operating: 0 to 40 ˚C (32 to 104 ˚F) |
|
Humidity |
Operating: 0% to 95% RH non-condensing Storage: 0% to 95% RH non-condensing |
|
Dimension |
184 x 94 x 27 mm |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
18.4 x 9.4 x 2.7 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
2.1 kg |
|
Generic Name |
Switches |
|
Manufacturer Details |
D-Link Corporation. No 289, Xinhu 3rd Road, Neihu District, Taipei City 114, Taiwan, R.O.C, |
|
Packer Details |
D-Link Corporation. No 289, Xinhu 3rd Road, Neihu District, Taipei City 114, Taiwan, R.O.C, |
|
Importer Details |
D-LINK (INDIA) LTD Plot No U02B, Verna Industrial, Estate, Verna, Goa-403722 |
|
Country Of Origin |
Taiwan |
