SKU # 1000080890

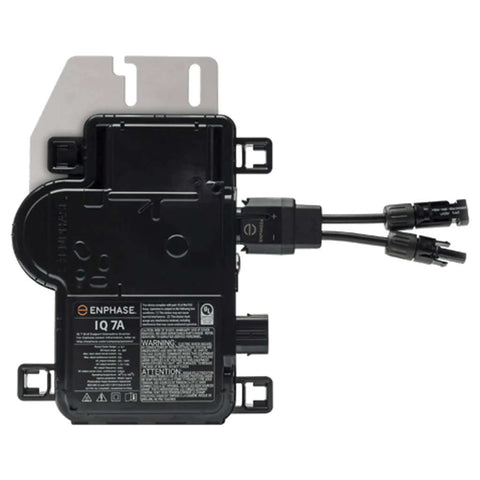

Enphase Solar Microinveter IQ 7A ENPIQ7AIND

Enphase Solar Microinveter IQ 7A ENPIQ7AIND


₹ 11,119.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within a Day

FREE Shipping
Cash on Delivery Available
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The high-powered smart grid-ready Enphase IQ 7A Micro dramatically simplifies the installation process while achieving the highest system efficiency for systems with 60-cell / 120-half-cell and 72-cell / 144-half-cell modules

  • Part of the Enphase IQ System, the IQ 7A Micro integrates with the Enphase Envoy-S, Enphase IQ
    Battery, and the Enphase Enlighten monitoring and analysis software

  • The IQ Series Microinverters extend the reliability standards set forth by previous generations and
    undergo over a million hours of power-on testing, enabling Enphase to provide an industry-leading
    warranty

  • High Power

  • Peak output power 366 VA

  • Easy to Install

  • Lightweight and simple

  • Faster installation with improved, lighter two-wire cabling

  • Built-in rapid shutdown compliant

  • Efficient and Reliable

  • Optimized for high powered 60-cell / 120-half-cell and 72-cell / 144-half-cell modules

  • Highest EU efficiency of 96.5%

  • More than a million hours of testing

  • Class II double-insulated IP67 enclosure

  • Smart Grid Ready

  • Complies with advanced grid support, voltage and frequency ride-through requirements

  • Envoy and Internet connection required

  • Configurable for varying grid profiles

Product Specification

Brand

Enphase

Product Type

Solar Microinverter

Product Model

IQ 7A

Product Code

ENPIQ7AIND

Input (DC)

IQ7A-72-2-INT

Commonly Used Module Pairings

295 W–460 W +

Module Compatibility

60-cell / 120-half-cell and 72-cell / 144-half-cell modules

Maximum Input DC Voltage

58 V

Pv Input Operating Voltage Range

18 V–58 V

Min/Max Start Voltage

33 V / 58 V

Max DC Short Circuit Current (Module Isc)

15 A

Overvoltage Class DC Port

II

DC Port Backfeed Current

0 A

Output (AC)

Peak Output Power

366 VA

Maximum Continuous Output Power

349 VA

Nominal (L-N) Voltage/Range

230 V / 219–264 V

Maximum Continuous Output Current

1.52 A

Nominal Frequency

50 Hz

Extended Frequency Range

45–55 Hz

AC Short Circuit Fault Current Over 3 Cycles

5.8 Arms

Maximum Units Per 20 A (L-N) Branch Circuit

11 (single-phase)

Overvoltage Class AC Port

III

AC Port Backfeed Current

18 mA

Power Factor Setting

1.0

Power Factor (Adjustable)

0.8 leading ... 0.8 lagging

Efficiency

En 50530 (EU) Weighted Efficiency

96.5 %

Mechanical

Ambient Temperature Range

-40ºC to +60ºC

Relative Humidity Range

4% to 100% (condensing)

Maximum Altitude

2000 m

DC Connector Type

Bulkhead with MC4 locking type connector

Cooling

Natural convection — No fans

Approved For Wet Locations

Yes

Pollution Degree

PD3

Enclosure

Class II double-insulated, corrosion resistant polymeric enclosure

Environmental Category / UV Exposure Rating

Outdoor - IP67

Features

Communication

Power Line Communication (PLC)

Monitoring

Enlighten Manager and MyEnlighten monitoring options
Compatible with Enphase Envoy-S

Compliance

AS/NZS 4777.2, RCM, IEC/EN 61000-6-3, IEC/EN 62109-1, IEC/EN 62109-2, EN 50549,
G98/G99, VDE-AR-N-4105

Dimensions (HxWxD)

212 mm x 175 mm x 30.2 mm (without bracket)

Weight

1.08 kg (2.38 lbs)

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Solar Microinveters

Manufacturer Details

Enphase Energy 47281 Bayside Pkwy. Fremont, CA 94538

Packer Details

Enphase Solar Energy Pvt. Ltd. 3rd Floor, IndiQube, The Leela Galleria 23 Old Airport Road, Bangalore 560078 Phone : +91-80 61172500

Country of Origin

USA
