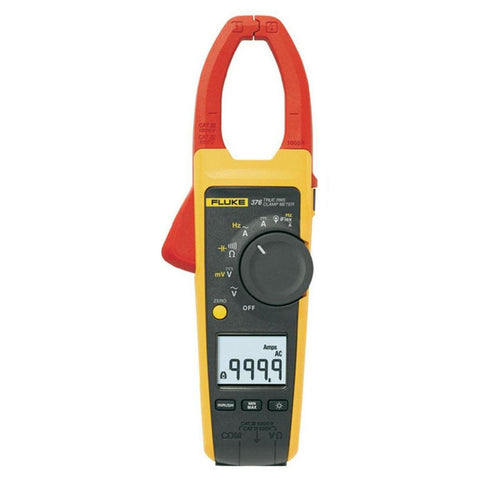

Fluke AC DC Clamp Meter 376

Name: Fluke AC DC Clamp Meter 376
Brand: Fluke
SKU: 1000071591
Price: 55210.0 INR
Availability: OutOfStock

Visit the Fluke Store

₹ 55,210.00

Quantity



Pack Qty : 1

Delivery Availability

Offers and Coupons

Bestomart Diwali Sale 2025

Use the coupon codes purchase of ₹4,000/- & above

Above ₹2,500
Use

LIGHT100

Above ₹7,500
Use

CRACKER200

Above ₹15,000
Use

SHINE300

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

CAT IV 600 V, CAT III 1000 V
True RMS AC voltage and current for accurate measurements on non-linear signals
Min, max, average and Inrush recording to capture variations automatically
Integrated low pass filter and state-of-the-art signal processing allows for use in noisy electrical environments while providing stable readings
Proprietary Inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
Ergonomic design fits in your hand and can be used while wearing protective equipment
Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
Soft Carrying Case

Product Specification

Brand	Fluke
Product Type	Clamp Meter
Product Model	376
Electrical Specifications
AC Current via Jaw
Range	374 and 375 376	600.0 A 999.9 A
Resolution	0.1 A
Accuracy	2% ± 5 digits (10-100 Hz) 2.5% ± 5 digits (100-500 Hz)
Crest Factor (50/60 Hz)	3.0 at 1100 A (375 and 376 only) 2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2
DC Current
Range	374 and 375 376	600.0 A 999.9 A
Resolution	0.1 A
Accuracy	2% ± 5 digits
AC Voltage
Range	374 and 375 376	600.0 V 1000 V
Resolution	374 and 375 376	0.1 V 0.1 V (≤ 600.0 V) 1 V (≤ 1000 V)
Accuracy	1.5% ± 5 digits (20 – 500 Hz)
DC Voltage
Range	374 and 375 376	600.0 V 1000 V
Resolution	374 and 375 376	0.1 V 0.1 V (≤ 600.0 V) 1 V (≤ 1000 V)
Accuracy	1% ± 5 digits
mV DC
Range	374 and 375 376	500.0 mV
Resolution	0.1 mV
Accuracy	1% ± 5 digits
Frequency via Jaw
Range	375 and 376	5.0 - 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5% ± 5 digits
Trigger Level	5 – 20 Hz, ≥ 25 A
	20 – 100 Hz,≥ 20 A
	100 – 500 Hz,≥ 25 A
Resistance
Range	374 375 and 376	6000 Ω 60 kΩ
Resolution	374	0.1 Ω (≤ 600 Ω) 1 Ω (≤ 6000 Ω)
	375 and 376	0.1 Ω (≤ 600 Ω) 1 Ω (≤ 6000 Ω) 10 Ω (≤ 60 kΩ)
Accuracy	1% ± 5 digits
Capacitance
Range	1000 μF
Resolution	0.1 μF (≤ 100 μF) 1 μ F (≤ 1000 μF)
Accuracy	1% ± 4 digits
Mechanical Specifications
Size (L x W x H)	246 mm x 83 m x 43 mm
Jaw Opening	34 mm
Flexible Current Probe Diameter	7.5 mm
Flexible Current Probe Cable Length (Head To Electronics Connector)	1.8 m
Environmental Specifications
Operating Temperature	10°C – +50°C
Storage Temperature	-40°C – +60°C
Operating Humidity	Non condensing (< 10 –°C) ≤ 90% RH (at 10°C – 30°C) ≤ 75% RH (at 30°C – 40°C) ≤ 45% RH (at 40°C – 50°C)
Operating Altitude	3000 meters
Storage Altitude	12,000 meters
EMC	EN 61326-1:2006
Temperature Coefficients	Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C
Safety Compliance	CAN/CSA-C22.2 No. 61010-1-04 ANSI/UL 61010-1:2004 ANSI/ISA-61010-1 (82.02.01):2004 EN/IEC 61010-1:2001 to 1000V Measurement Category (CAT) III 600V Measurement Category (CAT) IV Pollution Degree 2 EN/IEC 61010-2-032:2002 EN/IEC 61010-031:2002+A1:2008
Batteries	2 AA, NEDA 15A, IEC LR6
Weight	388 g

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	Clamp Meters
Manufacturer Details	Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070
Packer Details	Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070
Country of Origin	India
