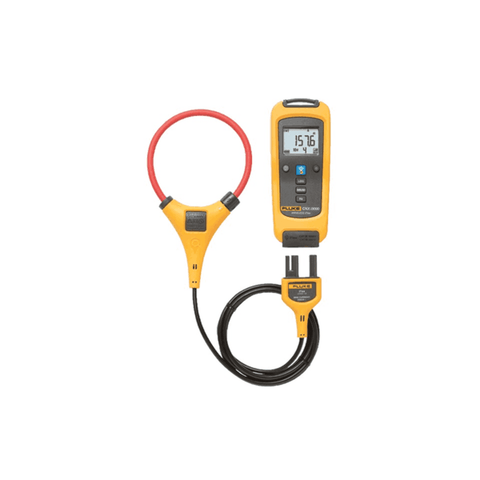

Fluke CNX™ i3000 iFlex® AC Wireless Current Module

Fluke CNX™ i3000 iFlex® AC Wireless Current Module

Visit the Fluke Store
Mid-Year Value Sale

₹ 20,500.00

Quantity

Pack Qty : 1.0



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The CNX™ i3000 iFlex® AC Wireless Current Module gives you a better way. Deenergize. Slip the flexible current probe in between conductors

  • Close the cabinet and reenergize. Now you can view measurements from up to 20 meters away on the CNX™ Wireless Multimeter

  • Use multiple modules for easy measurements on three-phase systems

  • Plus, no more writing down data as the CNX™ i3000 Current Module captures up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter

  • CNX™ wireless test tools also offer increased safety by letting you view readings in a separate location from the test point. Now you can take readings on moving machinery, with only the measurement module in harm's way

  • iFlex® Current Probe allows you to get into tight, awkward spaces

  • True-rms ac current measurements to 2500 A, with 3% accuracy

  • Memory recording up to 65,000 readings

  • Backlit LCD Display

  • CAT IV 600 V, CAT III 1000 V

Product Specification

Brand

Fluke

Product Type

Loop Calibrator

Model

709H

Range

2500 A AC

Resolution

0.1A to 999.9, 1A from 1000 to 2500

Accuracy

3 % ± 5 digits

Crest Factor (50 Hz/60 Hz)

3.0 at 1100 A, 2.5 at 1400 A, 1.42 at 2500 A, add 2 % for C.F. > 2

Display

3-1/2 digits,LCD w/backlight

Log Rate/Interval

1 sec minimum/adjustable by PC or front panel

Battery Type

2 AA, NEDA 15 A, IEC LR6

Battery Life

400 hours

Memory Record

up to 65,000 readings

Unbound Listen Interval

5 seconds

Rf Communications

2.4 GHZ ISM Band

Rf Communication Range

20 Meters

Operating Temperature

-10 °C to +50 °C

Storage Temperature

-40 °C to +60 °C

Operating Humidity

90 % at 35 °C, 75 % at 40 °C, 45 % at 50 °C

Emc

EN 61326-1:2006

Safety Compliance

EN/IEC 61010-1:2010 to 1000 V Measurement Category (CAT) III
600 V Measurement Category (CAT) IV
EN/IEC 61010-2-030:2010
EN/IEC 610101-2-031:2002
EN/IEC 61010-2-032:2002

Pollution Degree

2

Temperature Coefficient

Add 0.1 X (specified accuracy)/ °C (<18 °C or >28 °C)

Safety Rating

CAT IV 600 V, CAT III 1000 V

Certifications

CSA, FCC T68-FWCS IC:6627A-FWCS

Ingress Protection (IP) Rating

IP42

Size (HxWxD)

16.5 cm x 6.35 cm x3.56 cm


(6.5 in x 2.5 in x 1.4 in)

Weight

.22 kg (8 oz)

Jaw Opening

25.4 cm (10 in) coil

Warranty
