Out of Stock!

SKU # 1000017457

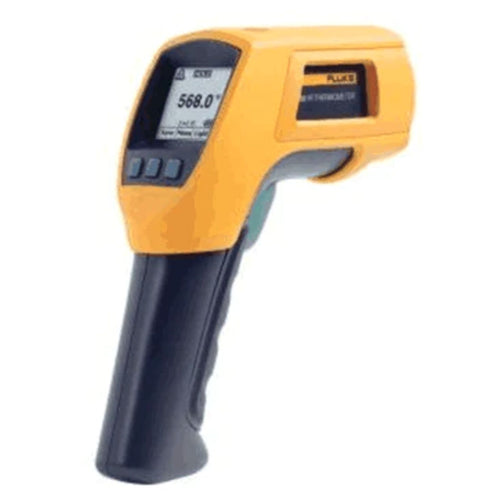

Fluke Contact & Infrared Temp Gun 568

Fluke Contact & Infrared Temp Gun 568


₹ 80,640.00

Quantity

Min Qty : 1.0



Delivery Availability
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The Fluke 568 Infrared Thermometer is a combination contact and non-contact thermometer in one.

  • It offers a wider temperature range than most other infrared thermometers while offering users more features controlled through an intuitive graphical display and menu

  • The simple, three-button on-screen menu interface (in 7 languages) is quick to use and makes even complex measurements easy

  • It takes just a few pushes of a button to adjust emissivity, record data, or turn on and off alarms. The 50:1 distance-to-spot ratio allows you to measure smaller objects from further away

  • And you can count on the rugged, ergonomic design to stand up to tough industrial, electrical, HVAC, and mechanical environments to help you work more efficiently in more applications

  • Allows easy access to advanced features with soft-key buttons and graphical display

  • Captures up to 99 points of data for quick downloading to a PC through the USB connection

  • Includes FlukeView® Forms software for easy trending and data analysis

  • Can be powered from your laptop via the USB to extend battery life

  • Quickly identifies problems with MIN, MAX, AVG, and DIF functions

  • Allows you to confidently measure a wide variety of surfaces with adjustable emissivity and a built-in materials table

  • Easily adapts to lighting conditions with a two-level backlight

  • Instantly alerts to measurements outside of set limits with audible and visual alarms

  • Provides 1% measurement accuracy

  • Comes with thermocouple K bead probe, durable hard case, and two-year warranty

Product Specification

Brand

Fluke

Type

Temp Gun

Model

568

Infrared temperature range

-40°C to 800°C (-40°F to 1472°F)

Infrared accuracy

< 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F);

> 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater

Display resolution

0.1°C / 0.1°F

Infrared spectral response

8 µm to 14 µm

Infrared response time

< 500 msec

Thermocouple Type-K input temperature range

-270°C to 1372°C (-454°F to 2501°F)

Thermocouple Type-K input accuracy

-270°C to -40°C

±(1°C + 0.2°/1°C) (-454°F to -40°F: ±(2°F + 0.2°/1°F))

-40°C to 1372°C

±1% or 1°C (-40°F to 2501°F: ±1% or 2°F), whichever is greater

D:S (distance to measurement spot size)

50:1

Laser sighting

Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm

Minimum spot size

19 mm (0.75 in)

Emissivity adjustment

By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01

Data storage with date/time stamp

99 points

PC interface and cable

USB 2.0 with FlukeView® Forms software

Hi/Low alarms

Audible and two-color visual

Min/Max/Avg/Dif

Yes

Display

Dot matrix 98 x 96 pixels with function menus

Backlight

Two levels, normal and extra bright for darker environments

Trigger lock

Yes

Switchable Celsius and Fahrenheit

Yes

Power

2 AA/LR6 Batteries and USB when used with a PC

Battery life (If used continuously)

Laser and backlight on,12 hours; laser and backlight off, 100 hours

Operating temperature

0°C to 50°C (32°F to 122°F)

Storage temperature

-20°C to 60°C (-40°F to 140°F)

Bead thermocouple Type-K range

-40°C to 260°C (-40°F to 500°F)

Bead thermocouple Type-K accuracy

±1.1°C (2.0°F) from 0°C to 260°C (32°F to 500°F), typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F)
