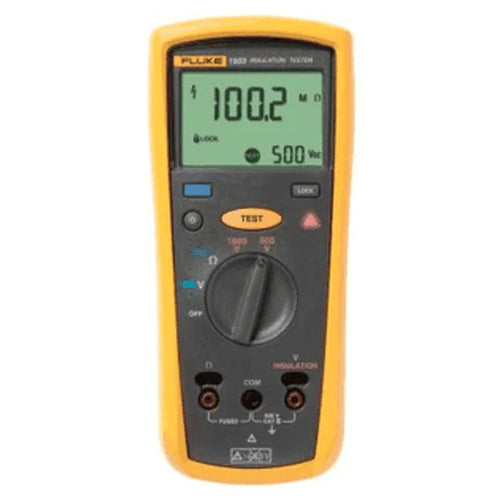

Fluke Insulation Resistance Meter 1503
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The Fluke 1503 is a great choice for basic residential and commercial electrical insulation testing
-
This rugged, compact tool fits in the palm of your hand. The 1503 is the same form factor as the Fluke 1507 but with a few less features
-
You can count on it to handle the most common tests at a most affordable price
-
Additional features, like the remote probe, reduce the time needed to perform repetitive testing
Product Specification
|
Brand |
Fluke |
||
|
Type |
Resistance Meter |
||
|
Model |
1503 |
||
|
Accuracy |
Range |
600.0 V |
|
|
Resolution |
0.1 V |
||
|
50 Hz to 400 Hz ±(% of Rdg + Digits) |
±(2% + 3) |
||
|
Input Impedance |
3 MΩ (nominal), < 100 pF |
||
|
Common Mode Rejection Ratio (1 Kω Unbalanced) |
> 60 dB at DC, 50 or 60 Hz |
||
|
Overload Protection |
600 V rms or DC |
||
|
Earth Bond Resistance Measurement |
|||
|
Range/Resolution |
20.00 Ω |
0.01 Ω |
|
|
200.0 Ω |
0.1 Ω |
||
|
2000 Ω |
1.0 Ω |
||
|
20.00 kΩ |
0.01 kΩ |
||
|
Accuracy |
±(1.5% + 3) |
||
|
Overload Protection |
2 V rms or DC |
||
|
Open Circuit Test Voltage |
> 4.0 V, < 8 V |
||
|
Short Circuit Current |
> 200.0 mA |
||
|
Measurement Range |
0.01 MΩ to 2000 MΩ |
||
|
Test Voltage |
500 V, 1000 V |
||
|
Test Voltage Accuracy |
+ 20%, - 0% |
||
|
Short Circuit Current |
1 mA nominal |
||
|
Auto Discharge |
Discharge time < 0.5 second for C = 1 µF or less |
||
|
Live Circuit Indicator |
Inhibit test if terminal voltage > 30 V prior to initialization of test |
||
|
Maximum Capacitive Load |
Operable with up to 1 µF load |
||
|
Measure Accuracy |
500 V |
±(1.5% + 5) |
|
|
1000 V |
±(1.5% + 5) to 2000 MΩ, ±(10% + 3) above 2000 MΩ |
||
|
Maximum Voltage Applied To Any Terminal: |
600 V AC rms or DC |
||
|
Storage Temperature |
-40°C to 60°C (-40°F to 140°F) |
||
|
Operating Temperature |
-20°C to 55°C (-4°F to 131°F) |
||
|
Temperature Coefficient |
0.05 x (specified accuracy) per °C for temperatures < 18°C or > 28°C (< 64°F or > 82°F) |
||
|
Relative Humidity |
0% to 95% @ 10°C to 30°C (50°F to 86°F) |
||
|
0% to 75% @ 30°C to 40°C (86°F to 104°F) |
|||
|
0% to 40% @ 40°C to 55°C (104°F to 131°F) |
|||
|
Vibration |
Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument |
||
|
Shock |
1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor) |
||
|
Electromagnetic Compatibility |
In an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997) |
||
|
Safety |
Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV) |
||
|
Certifications |
CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition |
||
|
Batteries |
Four AA batteries (NEDA 15A or IEC LR6) |
||
|
Battery Llife |
Insulation test use: |
Tester can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off. |
|
|
Resistance measurements: |
Tester can perform at least 2500 earth bond resistance measurements with fresh alkaline batteries at room temperature. These are standard tests of 1 Ω with a duty cycle of 5 seconds on and 25 seconds off. |
||
|
Size (H X W X L) |
5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in) |
||
|
Weight |
550 g (1.2 lb) |
||
|
Ip Rating |
IP40 |
||
|
Altitude |
Operating |
2000 m CAT IV 600 V, 3000 m CAT III 600 V |
|
|
Non-operating (storage) |
12,000 m |
||
|
Over-Range Capability |
110% of range |
||
|
Included Accessories |
TL224 Test Leads, TP74 Test Probes, clips PN 1958654 (red) and PN 1958646 (black), holster and remote probe |
||
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Insulation Resistance Meter |
Manufacturer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Packer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
