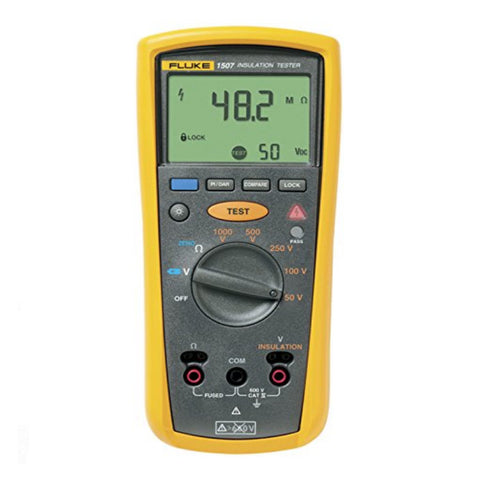

Fluke Insulation Resistance Tester 1507

Fluke Insulation Resistance Tester 1507


₹ 52,890.00

Quantity

Pack Qty : 1.0



Delivery Availability

 Estimated Dispatch In 14-21 Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The Fluke 1507 is a versatile, compact, handheld insulation tester for advanced industrial and electrical insulation testing

  • Its multiple test voltages make it the ideal tool for many troubleshooting, commissioning, and preventative maintenance applications

  • Performs insulation tests from 0.01 MΩ to 2.0 GΩ

  • Includes live circuit detection to prevent insulation test if voltage >30 V is detected

  • Includes auto-discharge of capacitive voltage for added user protection

  • Measures AC/DC voltage from 0.1 V to 600 V and resistance from 0.01 Ω to 20.00 kΩ

  • Provides lo-ohms earth-bond continuity (200 mA)

  • Simplifies repetitive or hard-to-reach testing with the remote test probe

  • Saves battery power with auto power off

  • Presents results on a large, backlit display

  • Features CAT IV 600 V overvoltage category rating

  • Comes with remote probe, test leads, test probes, alligator clips and one-year warranty

  • Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work

  • Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests

Product Specification

Brand

Fluke

Type

Resistance Meter

Model

1503

AC/DC Voltage Measurement

Accuracy

Range

600.0 V

Resolution

0.1 V

50 Hz to 400 Hz ± (% of Rdg + Digits)

±(2% + 3)

Input Impedance

3 MΩ (nominal), < 100 pF

Common Mode Rejection Ratio (1 Kω Unbalanced):

> 60 dB at DC, 50 or 60 Hz

Overload Protection

600 V rms or DC

Earth Bond Resistance Measurement

Range/Resolution

20.00 Ω

0.01 Ω

200.0 Ω

0.1 Ω

2000 Ω

1.0 Ω

20.00 kΩ

0.01 kΩ

Accuracy

±(1.5% + 3)

Overload Protection

2 V rms or DC

Open Circuit Test Voltage

> 4.0 V, < 8 V

Short Circuit Current

> 200.0 mA

Measurement Range

0.01 MΩ to 10 GΩ

Test Voltage

50 V, 100 V, 250 V, 500 V, 1000 V

Test Voltage Accuracy

+ 20%, - 0%

Short Circuit Current

1 mA nominal

Auto Discharge

Discharge time < 0.5 second for C = 1 µF or less

Live Circuit Indicator

Inhibit test if terminal voltage > 30 V prior to initialization of test

Maximum Capacitive Load

Operable with up to 1 µF load

Measure Accuracy

50 V

±(3% + 5)

100 V

±(3% + 5)

250 V

±(1.5% + 5)

500 V

±(1.5% + 5)

1000 V

±(1.5% + 5) to 2000 MΩ, ±(10% + 3) above 2000 MΩ

Maximum Voltage Applied To Any Terminal:

600 V AC rms or DC

Storage Temperature

-40°C to 60°C (-40°F to 140°F)

Operating Temperature

-20°C to 55°C (-4°F to 131°F)

Temperature Coefficient

0.05 x (specified accuracy) per °C for temperatures < 18°C or > 28°C (< 64°F or > 82°F)

Relative Humidity

0% to 95% @ 10°C to 30°C (50°F to 86°F)

0% to 75% @ 30°C to 40°C (86°F to 104°F)

0% to 40% @ 40°C to 55°C (104°F to 131°F)

Vibration

Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument

Shock

1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)

Electromagnetic Compatibility

In an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997)

Safety

Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV)

Certifications

CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition

Batteries

Four AA batteries (NEDA 15A or IEC LR6)

Size (H X W X L)

5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)

Weight

550 g (1.2 lb)

Ip Rating

IP40

Altitude

Operating

2000 m CAT IV 600 V, 3000 m CAT III 600 V

Non-operating (storage)

12,000 m

Over-Range Capability

110% of range

Included Accessories

TL224 Test Leads, TP74 Test Probes, clips PN 1958654 (red) and PN 1958646 (black), holster and remote probe


Other Details

Weight

kg

Generic Type

Insulation Resistance Tester

Manufacturer Details

Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070

Packer Details

Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070

Country of Origin

India
