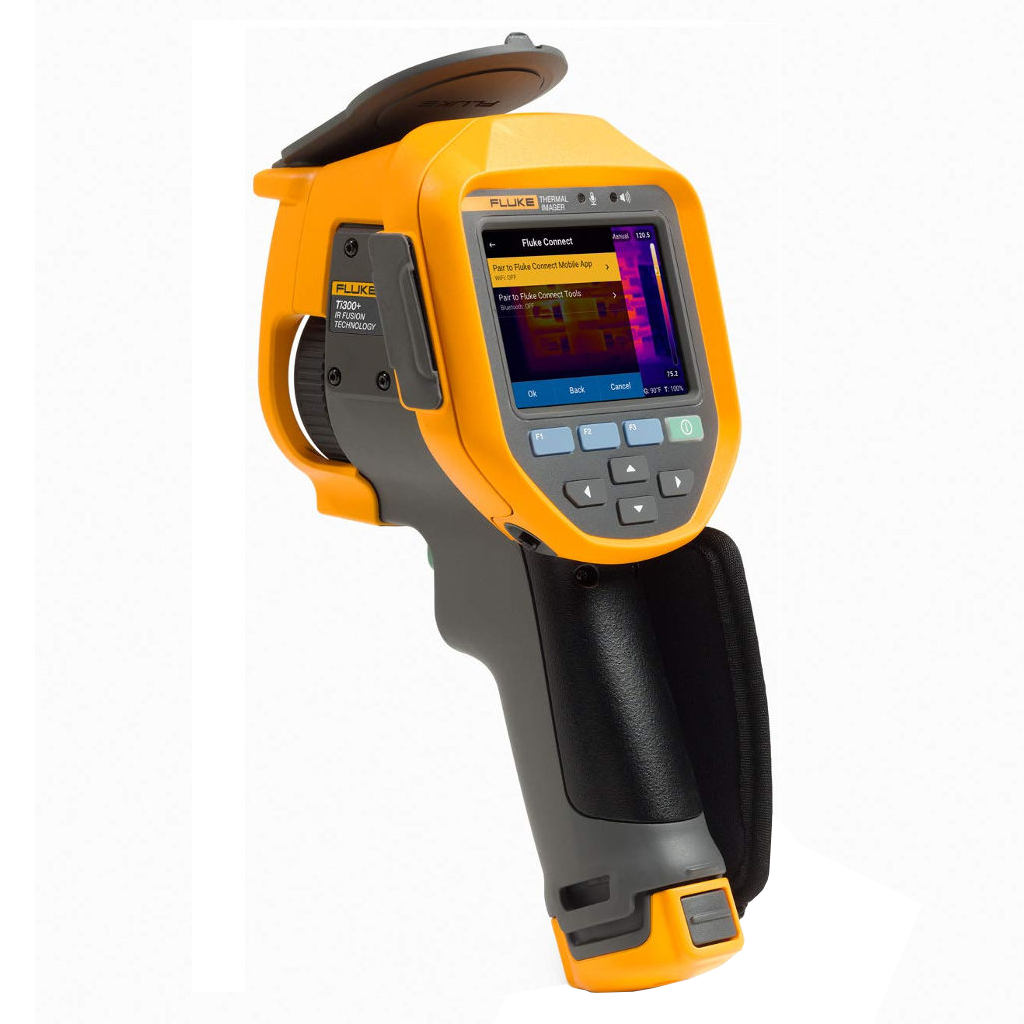

Fluke Ti300+ Thermal Camera

Brand

Fluke

Product Type

Thermal Camera

Product Model

Ti300+

Infrared Resolution

320 x 240 (76,800 pixels)

SuperResolutionTM

No

IFOV With Standard Lens (Spatial Resolution)

1.85 mRad, D:S 532:1

Field of View

34° H x 24° V

Minimum Focus Distance

15 cm (approx. 6 in)

MultiSharpTM Focus

No

LaserSharpTM Auto Focus

Yes, for consistently in-focus images. Every. Single. Time

Laser Distance Meter

Yes, calculates distance to the target for precisely focused images and displays distance on screen

Advanced Manual Focus

Yes

Wireless Connectivity

Yes, to PC, iPhone and iPad (iOS 4s and later), AndroidTM 4.3 and up, and WiFi to LAN (where available)

Fluke ConnectTM App Compatible

Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing

Fluke Connect Assets

Through the desktop, assign images to assets, easily compare measurement types in one location and create reports.

Fluke Connect Instant Cloud Upload

Yes*,connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC

Fluke Connect Instant Server Upload

No

IR-FusionTM technology

Yes, adds the context of the visible details to your infrared image

Ruggedized Touchscreen Display

3.5 inch (landscape), 640 x 480 LCD

Ergonomic Design

Pistol-grip design for one-handed use

Thermal Sensitivity (NETD)**

≤ 0.075 °C at 30 °C target temp (75 mK)

Level And Span

Smooth auto and manual scaling

Touchscreen Adjustable Level/Span

Yes

Fast Auto Toggle Between Manual And Auto Modes

Yes

Fast Auto-Rescale In Manual Mode

Yes

Minimum Span (In Manual Mode)

2.0 °C (3.6 °F)

Minimum Span (In Auto Mode)

3.0 °C (5.4 °F)

Built-In Digital Camera (Visible Light)

5MP

Frame Rate

60 Hz or 9 Hz versions

Laser Pointer

Yes

LED Light (Torch)

Yes

Digital Zoom

No

Data Storage And Image Capture

Extensive Memory Options

Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload for permanent storage

Image Capture, Review, Save Mechanism

One-handed image capture, review, and save capability

Image File Formats

bmp, jpeg, is2

Memory Review

Thumbnail and full screen review

Software

Full analysis and reporting software with access to the Fluke Connect system

Analyze And Store Radiometric Data on a PC

Yes

Export File Formats With Fluke Connect Software

Bitmap (.bmp), GIF, JPEG, PNG, TIFF

Voice Annotation

60 seconds maximum recording time per image; reviewable playback on camera, optional Bluetooth headset available but not required

IR-PhotoNotesTM

Yes - 2 images

Text Annotations

Yes. Including standard shortcuts as well as user programmable options

Video Recording And Formats

No

Remote Control Operations

No

Auto Capture (Temperature and Interval)

No

MATLAB and LabVIEW Tool Boxes

No

Battery

Batteries (Field-Replaceable, Rechargeable)

Two lithium ion smart battery packs with five-segment LED display to show charge level

Battery Life

2-3 hours per battery (actual life varies depending on settings and usage)

Battery Charging Time

2.5 hours to full charge

Battery Charging System

Two-bay battery charger or in-imager charging Optional 12 V automotive charging adapter

AC Operation

AC operation with included power supply (100 V ac to 240 V ac, 50/60 Hz)

Power Saving

User selectable sleep and power off modes

Temperature Measurement

Temperature Measurement Range (Not Calibrated Below -10 °C)

-20 °C to 650 °C (-4 °F to 1,202 °F)

Accuracy

± 2 °C or 2 % (at 25 °C nominal, whichever is greater)

On-Screen Emissivity Correction

Yes (both value and table)

On-Screen Reflected Background Temperature Compensation

Yes

On-Screen Transmission Correction

Yes

Line Temperature Graph

No

Color Palettes

Standard Palettes

9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted

Ultra Contrast Palettes

9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted

Smart Lenses

Macro–25 Micron Lens: 25 MAC2

Yes

2 x telephoto lens: TELE 2

Yes

4 x telephoto lens: TELE4

Yes

Wide angle lens: WIDE 2

Yes

General Specifications

Color Alarms (Temperature Alarms)

High temperature, low temperature, and isotherms (within range)

Infrared Spectral Band

7.5 μm to 14 μm (long wave)

Operating Temperature

-10 °C to 50 °C (14 °F to 122 °F)

Storage Temperature

-20 °C to 50 °C (-4 °F to 122 °F) without batteries

Relative Humidity

10 % to 95 % non-condensing

Center-Point Temperature Measurement

Yes

Spot Temperature

Hot and cold spot markers

User-Definable Spot Markers

No

User Defined Measurement Boxes

1 expandable-contractible measurement box with MIN-MAX-AVG temp display

Hard Case

Rugged, hard carrying case; soft transport bag

Safety

IEC 61010-1: Overvoltage category II, Pollution Degree 2

Electromagnetic Compatibility

IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A

Australian RCM

IEC 61326-1

US FCC

CFR 47, Part 15 Subpart B

Vibration

0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6

Shock

25 g, IEC 68-2-29

Drop

Engineered to withstand 2 meter (6.5 feet) drop with standard lens

Size (H x W x L)

27.7 cm x 12.2 cm x 16.7 cm (10.9 in x 4.8 in x 6.5 in)

Weight (battery included)

1.04 kg (2.3 lb)

Enclosure Rating

IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)

Recommended Calibration Cycle

Two-years (assumes normal operation and normal aging)

Supported Languages

Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish

RoHS Compliant

Yes

Warranty

2 Years
