SKU # 1000136637

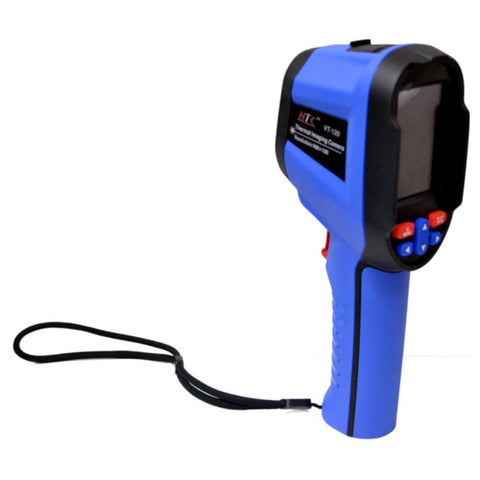

HTC Thermal Imager VT-120

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Key Features
-
TFT full view colour screen display
-
Integrates Surface temperature measurement and thermal images
-
Built-in Chargeable 18650 Lithium batteries
-
Hybrid imaging of visual an infrared images
-
Selectable of Different colour Palettes
-
Images capture saved in SD card
Product Specification
| Brand | HTC |
| Product Type | Thermal Imager |
| Product Model | VT-120 |
| Infrared Image Resolution | 160×120/td> |
| Field Angle | 35°×27° |
| Image PC Offline Analysis | Support |
| Infrared Detector Type | Vanadium oxide is uncooled in the infrared focal plane |
| Frame Rate Of Thermal Images | ≤25H |
| Pixel Size | 12μm |
| NETD | ≤50mK @25ºC,@F/1.1 |
| Shortest Focus Length | 3.2mm |
| IFOV | 3.75mrad |
| Wavelength Coverage | 8-14μm |
| Focus Mode | Fixed |
| Temperature Measurement Range | -20ºC to+550ºC (-4ºFto1022ºF) |
| Temperature Measurement Accuracy | ±2%;± 2° C(3.6°F) or of reading |
| Resolution | 0.1ºC |
| Temperature Measurement Mode | Center point / cold hot spot tracking |
| Color Palette | Rainbow, iron oxide red, cold color, black & white, |
| Emissivity | Adjustable from 0.01 to 1.00 |
| Visible Light Image Resolution | 300000 pixels |
| Display Screen | 2.8″ TFT color display |
| 2.8″ TFT Color Display | Infrared/visible/dual light fusion |
| Lighting Supplement | LED lighting supplement |
| Storage Capacity | Built-in 4G eMMC (about 3G storage space available |
| Store The Image / Video Formats | JPG / MP4 |
| Image / Video Export Mode | USB connection PC export |
| Menu Language | Chinese, English, German, Italian |
| Battery | 18650 battery (Size: 18.5×69mm) |
| Battery Capacity | 2000mAh |
| Working Time | 2-3 hours |
| Power Interface | Micro USB |
| Automatic Power Off | Selectable: 5 minutes / 20 minutes / not power off |
| Work Temperature | -10ºC to 50ºC/-14°F to 122°F |
| Storage Temperature | -20ºC to 60ºC/-4°F to 140°F |
| Relative Humidity | 10% to 85% RH (non-condensing) |
| Dimension(H x W x D) | 96 x 72 x 226 mm |
| Weight | 389g |
| Warranty | 1 Year |
Other Details
| Dimension (CM) - L x B x H | 9.6 x 7.2 x 22.6 |
| Unit of Measurement | 1 Piece |
| Weight | 1.5 kg |
| Generic Type | Thermal Cameras |
| Manufacturer Details | HATCO Industries Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400 002 |
| Packer Details | HATCO Industries Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400 002 |
| Country of Origin | India |
