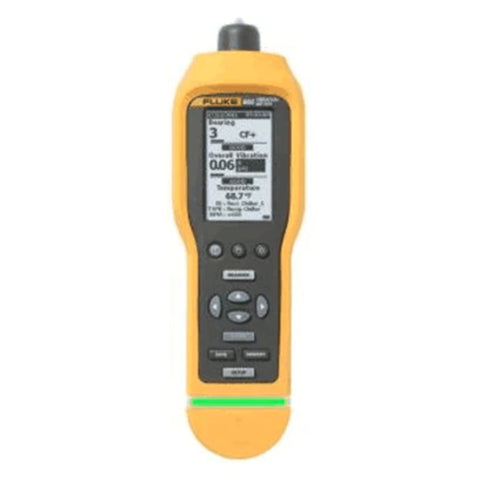

Fluke Vibration Meter 805
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The Fluke 805 Vibration Meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration and bearing condition
-
Measures overall vibration (10 Hz to 1,000 Hz) for acceleration, velocity, and displacement units of measurement for a wide variety of machines
-
Provides Crest Factor+ technology for reliable bearing assessment using direct sensor tip
-
measurements between 4,000 Hz and 20,000 Hz
-
Compares vibration levels with ISO-10816 severity scales
-
Allows you to view trending in Microsoft® Excel using pre-built templates
-
Features colored lighting system (green, red) and on-screen comments to indicate how much pressure needs to be applied to take measurements
-
Measures temperature with Spot IR Sensor to increase diagnostic capabilities
-
Holds and saves up to 3,500 measurements in on-board memory
-
Provides external accelerometer support for hard to reach locations
-
Allows you to export data via USB
-
Provides audio output for listening to bearing tones directly
Product Specification
|
Brand |
Fluke |
|
|
Type |
Resistance Meter |
|
|
Model |
805 |
|
|
Low Frequency Range (overall Measurement) |
10 Hz to 1,000 Hz |
|
|
High Frequency Range (CF+ Measurement) |
4,000 Hz to 20,000 Hz |
|
|
Severity Levels |
Good, satisfactory, unsatisfactory, unacceptable |
|
|
Vibration Limit |
50 g peak (100 g peak-peak) |
|
|
A/D Converter |
16-bit |
|
|
Signal To Noise Ratio |
80 dB |
|
|
Sampling Rate |
Low Frequency |
20,000 Hz |
|
High Frequency |
80,000 Hz |
|
|
Real Time Clock Backup |
Coin battery |
|
|
Sensitivity |
100 mV g ±10% |
|
|
Measurement Range |
0.01 g to 50 g |
|
|
Low Frequency Range (overall Measurement) |
10 Hz to 1,000 Hz |
|
|
High Frequency Range |
4,000 Hz to 20,000 Hz |
|
|
Resolution |
0.01 g |
|
|
Accuracy |
At 100 Hz ±5% of measured value |
|
|
Acceleration |
g, m/sec² |
|
|
Velocity |
in/sec, mm/sec |
|
|
Displacement |
mils, mm |
|
|
Range |
-20°C to 200°C (-4°F to 392°F) |
|
|
Accuracy |
±2°C (4°F) |
|
|
Focal Length |
Fixed, at ~3.8 cm (1.5 in) |
|
|
Frequency Range |
10 Hz to 1,000 Hz |
|
|
Bias Voltage (to Supply Power) |
20 VDC to 22 VDC |
|
|
Bias Current (to Supply Power) |
Maximum 5 mA |
|
|
External Interfaces |
USB 2.0 (full speed) communication |
|
|
Data Capacity |
Database on internal flash memory |
|
|
Upgrade |
Through USB |
|
|
Memory |
Up to 3,500 measurements |
|
|
Electrostatic Discharge: Burst |
Standard EN 61000-4-2 |
|
|
Electromagnetic Interference |
Standard EN 61000-4-3 |
|
|
Re |
Standard CISPR 11, Class A |
|
|
Operating Temperature |
-20°C to 50°C (-4°F to 122°F) |
|
|
Storage Temperature |
-30°C to 80°C (-22°F to 176°F) |
|
|
Operating Humidity |
10% to 95% RH (non-condensing) |
|
|
Operating/Storage Altitude |
Sea level to 3,048 meters (10,000 feet) |
|
|
Ip Rating |
IP54 |
|
|
Vibration Limit |
500 g peak |
|
|
Drop Test |
1 meter |
|
|
Battery Type |
AA (2) Lithium Iron Disulfide |
|
|
Battery Life |
250 measurements |
|
|
Size (L X W X H) |
24.1 x 7.1 x 5.8 cm (9.5 x 2.8 x 2.3 in) |
|
|
Weight |
0.40 kg (0.89 lb) |
|
|
Connectors |
USB mini-B 7-pin, stereo audio output jack (3.5 mm Audio Plug), external sensor jack (SMB connector) |
|
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Vibration Meters |
Manufacturer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Packer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Country of Origin |
India |
